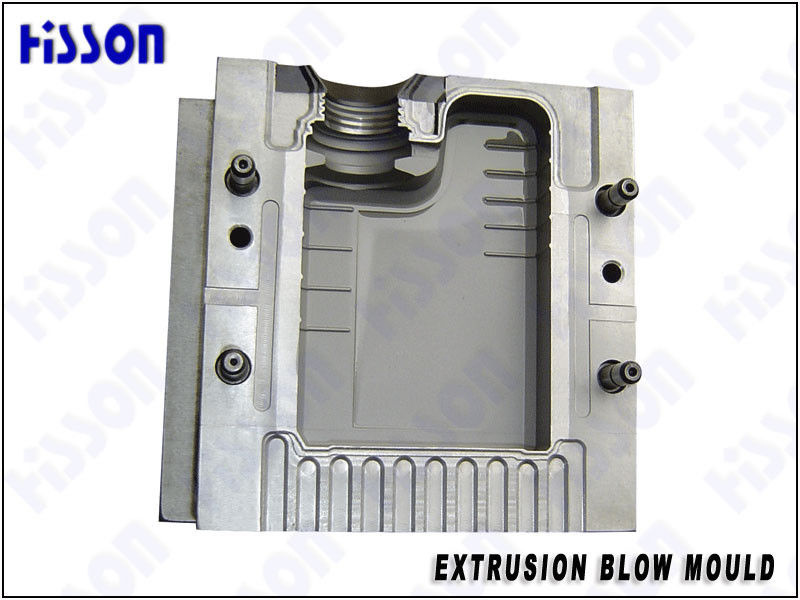

5000ml PE Engine Oil Bottle Extrusion Blow Mould

Stainless Steel Extrusion Blow Mold For 5000ml PE Engine Oil Bottle

Quick Detail:

5000ml Extrusion Blow Mold for PE engine oil bottle

1 Cavity

Mold Material: S50C steel, or aluminum alloy

Apply to HSTII-5L Extrusion Blow Molding Machine

 Below are mould material and some technical points:

1 PP/PE bottle mould adopt high grade corrosion resistance mould steel; neck insert adopt imported S136 steel. Mould with hold making device and automatic deflashing device.
2 Movable parts adopt insert structure, and heat treating to HRC50-55,to prolong using life, and easy for replacing and cavity polishing.
3 Neck part adopt imported steel, hardness reach to HRC58-60 to prolong using life. Cutting part went through precised tooling, cut material will break off from bottle mouth easily.
4 Equal cooling on mould cavity, neck part, bottom part, 2 inlets and 2 outlets, high cooling performance and high production speed.
5 Scientific mould structure design, and tooling by high precision equipments.

Caring for and serving customers! We believe our full-service will save you a lot of money,time and worry.
Pre-sale service
Purpose:To help our customers to choose the best suitable machinery for particular products, and to give best solution with optimum performance-cost ratio.
Advanced software will ensure the design precision, customer can choose the design from our gallery,also we can design products for customer's particular requirement.
Designs for both normal shape and special shape products are available.
You can get optimum turkey solution suitable for your products and market.
You can get any information you want.
Modification on our machinery for customers' particular requirement is feasible.
Any of customers' question will be answered within 24 hours.
Strict test and inspection will be done for material and finished machinery, nice running status of our machinery is surely guaranteed before leaving factory.
No delay on delivery.
After-sale service
Purpose:To protect customers' investment, and to ensure continuous,stable and effective running of the purchased machinery.
Each set of our mold and machine will have a sole serial number,the test report and detailed technic information will be saved in one sole record,customer is easily to get the information, and reasonable suggestion will be given in case of any problem occurs.
A list of free spare parts will be sent along with each set of mold and machine, and further spare parts will be sold at production cost.
The detailed and easy-understanding installation instruction will be sent along with each set of mold and machine.
Engineers dispatching for locale instruction is feasible.
Every feedback will be answered within 24 hours.
