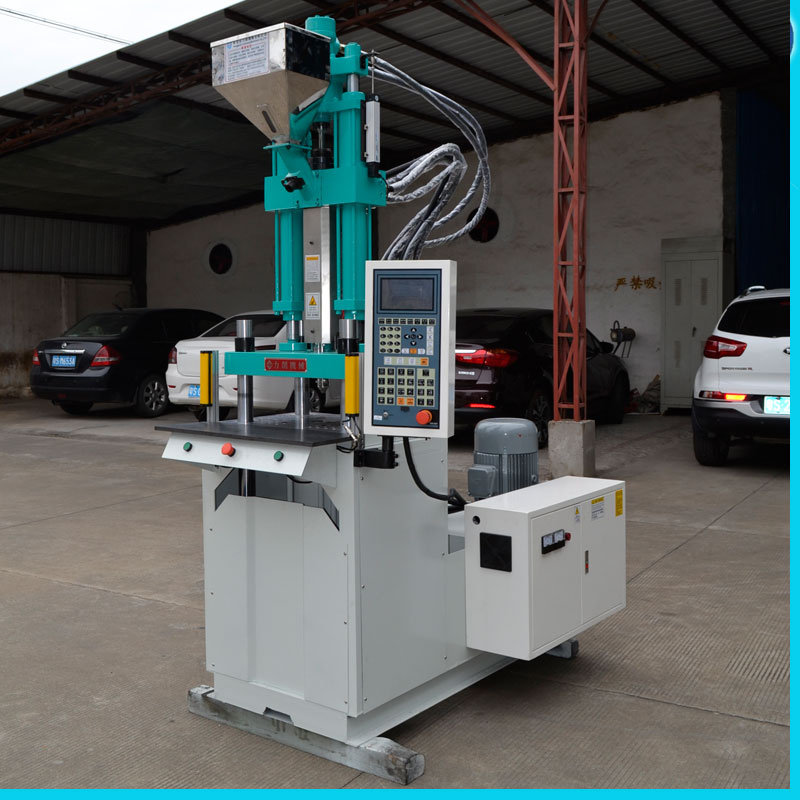

50ton Clf Ceramic Injection Moulding Machine for USB Connector

50ton Clf Ceramic Injection Moulding Machine for USB Connector
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union




Specifi
cation



 INJECTION UNIT mmΦ22Φ25Φ28
Screw Diameter
 cm3526784
Theoretical Injection Volume
 g(oz)48.4(1.7)62.3(2.2)78(2.7)
Injection Weight(PS)
 cm3/sec364758
Injection Rate
  mm/s959595
Injection Speed
 Mpa(kgf/cm2)248(2530)192(1960)153(1563)
Max.Injection Pressure
 r.p.m0~300
Screw Speed Rotation
 mm>45
Nozzle Out From Platens
CLAMPING UNIT kN(tf)343(35)
Clamping Force
 mm200
Clamping Stroke
 mm150(200)
Min.Mold Thickness
 mm350(400)
Max.Opening
 mm370*210
Distance Between Tie Bars
 mm350*300
Max Mould Size
 mm40
Ejector  Distance
 kN(tf)17(1.75)
Ejector  Force
OTHERS Mpa(kgf/cm2)13.7(140)
System Pressure
  L130
Oil Tank Capacity
 kW(HP)5.5(7.5)
Electric Power
 kW3.6
Heater Power

L*Wmm1539*1115
Machine Dimension      Hmm2225(2745)

tf1.3
Machine  Weight



Product drawing





Product features

1.This type of the mold features a stamping pattern of mold-shutter,

with ahigh -speed,low-pressure design and slow motion of mold shutter,

the molb can surely secure the safety,efficiency,higher productivity and more power for the operation.



2.The special function of the oil-press projecting system packed with its double -projecting oil-presser

and built-in pressure-monitoring remidial gimmick that keeps a highly stable frequency of strong projecting power,

can asure you the products of fine quality and advanced technology.

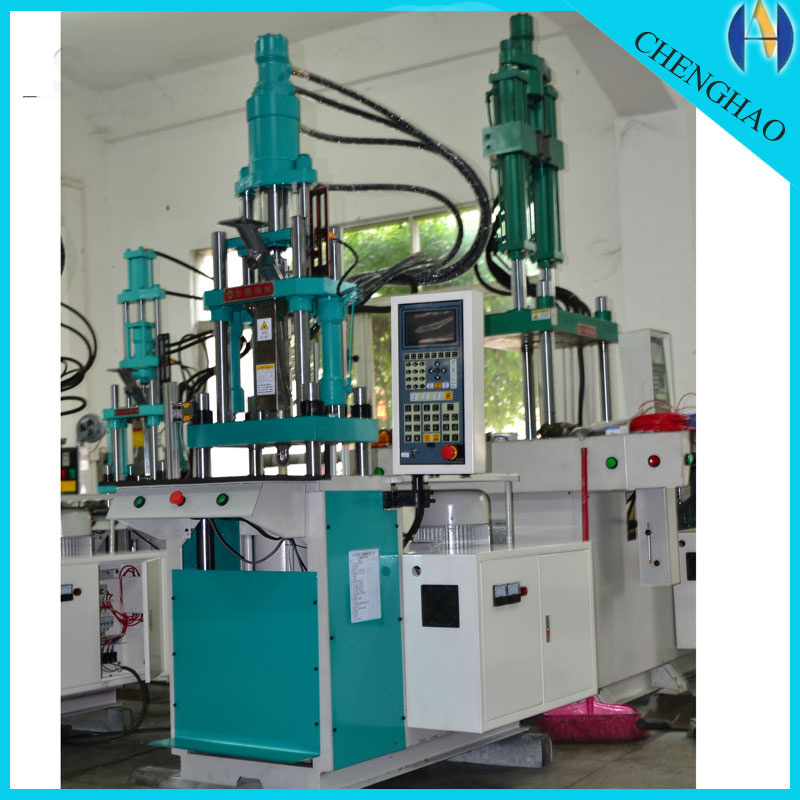

 Product pitures

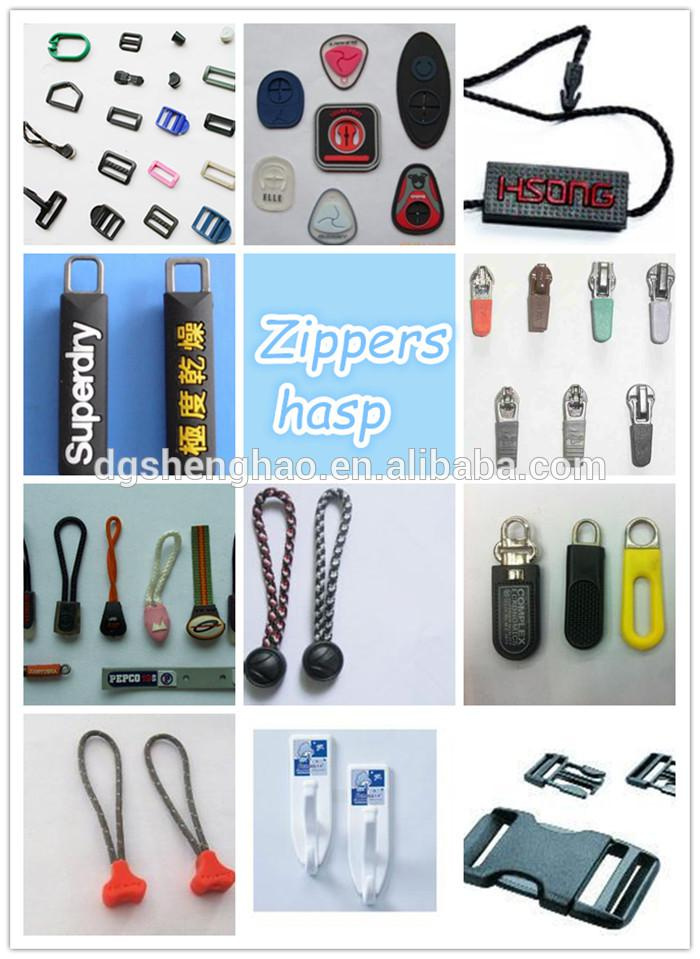

Injection machine can make













Prod Model: 5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screw Diamete: 32mm-80mm
Injection Pressure: 150MPa--250MPa
Oil Tank Capacity: 150~4500
Heating Power: 5.5kw
Ejector Stroke: 135 mm
Min. Mold Height: 200mm
Ejector Force: 45-280kn
Color: as Photo
Warranty: 1 Year
Product Name: Plastic Rubber Injection Moulding Machine
Type: Preform Injection
Structure: Vertical and Horizontal Composite
Plastic Type: Thermoplastic
Plasticizing Way: Screw Type
Automation: Non-Automatic
Computerized: Computerized
Certification: UL
Within more than 10 years' development, Dongguan Chenghao machinery Co., Ltd is a professional manufacture of high grequency devices like plastic welding machine, synchronous fusing machines, blister machines and other high frequency mechanical accessories and molds. The increasingly competition in the industryispromoting us moving toward the goal of "rejuvenating the country, the industry and the market through quality, brand and reputation"

Except all kinds of machinery, the company also produces various auxiliary facilities. Together with its technical team, it helps customers develop leading products to meet different needs. "reserch and innovation, Pursuit of Excellence, quality First and World Based"condtitutes the company's quality policy. Chenghao machinery Co., Ltd warmly welcomes the sxisting and new customers from home and abroad. We are looking forwad to coopperating with you based on mutual reciprocity and mutual benefit for a better tomorrow, and we believe our cooperation will lead you to a great success.
