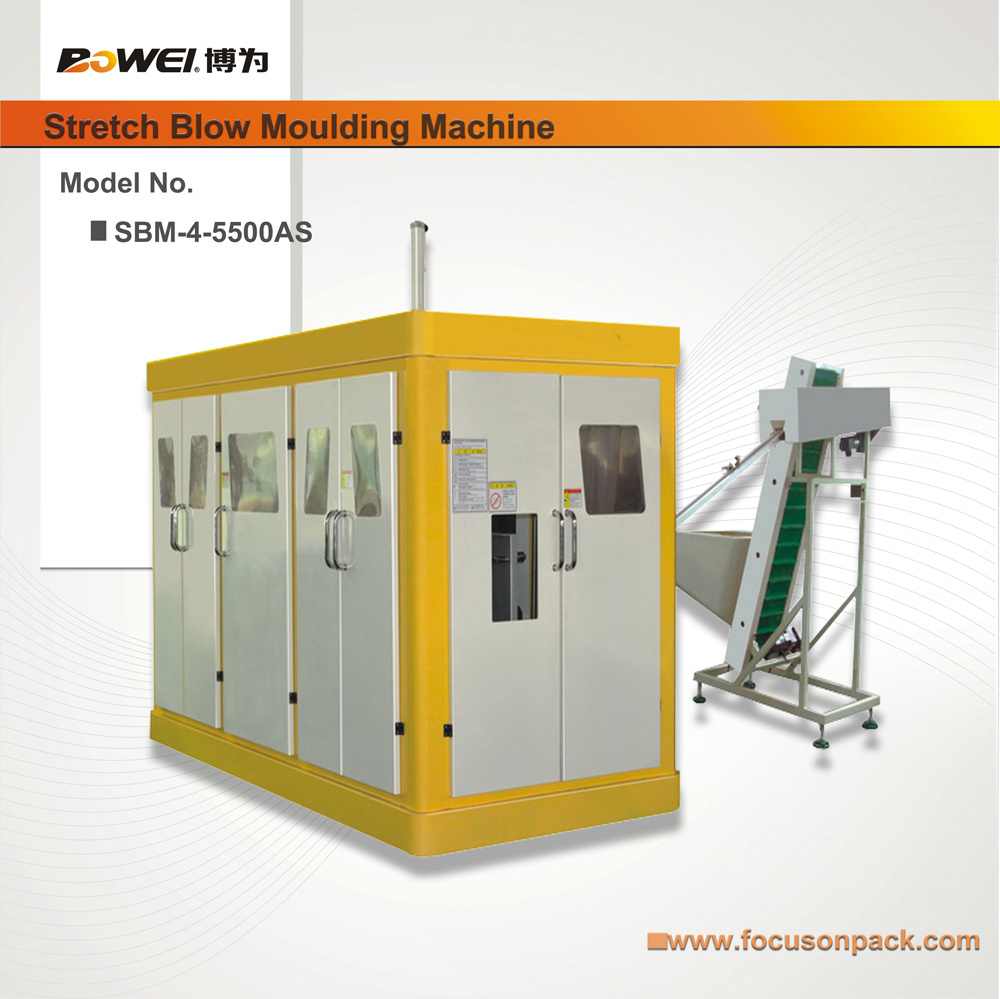

5500bottles Per Hour Automatic Stretch Blow Molding Machine

5500bottles Per Hour Automatic Stretch Blow Molding Machine
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Automatic PET bottle blow molding machine/bottle blowing machine

1. Preforms are loaded into the hopper, which holds up to 3000 preforms at a time.
2. An elevator moves preforms up to a gravity-based sorter, which aligns preforms on a conveyor.
3. Preforms are then aligned and loaded onto a chute, where they are gravity-fed into the preform holders. Four preforms simultaneously move through two parallel heat tunnels, each with eight heat zones and two quartz heating elements.
4. The preforms move through the heat tunnels, where they are heated to the optimal blowing temperature prior to entering the molds.
5. From the heaters, preforms are loaded into the custom-designed molds where four bottles are blown at a time. A pressurized liquid chiller keeps the mold temperature in a controlled range to ensure that consistently high-quality bottles are blown.
6. The blown bottles, still in the preform/bottle holders, are placed on the exit conveyor.
7. Bottles are conveyed out of the Blow Molder and into collection receptacles, then moved to storage areas to await processing on the production line, or into air conveyor of Filling machine connected with Blow molder.
Model NoSBM-4-5500AS
Nos of Cavity4
Output Capacity5500BPH
Max Container Volume2L
Max Neck Diameter38MM
Max Container Diameter115MM
Max Container Height325MM
Heating Power35KW
Operating Low Pressure0.8Mpa
Blowing Pressure3.5Mpa
Machine Dimension3.7X1.55X2.7M
Machine Weight4600Kg
Preform Elevator Dimension1.5X0.85X2.2M
Machine Elevator Weight500Kg

Prod Model: SBM-4-5500AS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity: 5500b/Hr
Max Container Volume: 2L
Max Neck Diameter: 38mm
Max Container Diameter: 115mm
Max Container Height: 325mm
Heat Power: 35kw
Making Method Of Parison: Extrusion-Blow Molding
Raw Material: PET
Certification: CE
Automation: Automatic
Computerized: Computerized
Type: Stretch Blow Moulding
We are one of leading packaging machinery company in China to help our customers reach their production goals.

Designing and building purified water & mineral water treatment, Liquid filling machines, paste filling machine, linear filling machine, rotary filling machine, e liquid filling machine, corrosion resistant filling machine, rotary capping machines, linear capping machine, adhensive labeling machines, shrink labeling machine, inkjet coder, sleeve shrink wrapping machine, stretch blow molding machine.

Packaging machines to deliver complete turn-key packaging lines which are widely used for cosmetic creams such as shampoo, lotion, liquid soap, hair conditioner, essential oil, food such as edible oil, water, syrup, sauce, chemical such as alcohol, solvent, corrosive liquid and drink water bottling plant, juice plant and yoghurt plant. Our equipments are engineered for durability and ease to use.

Warmly welcome to visit us and establish long-term business relation.
