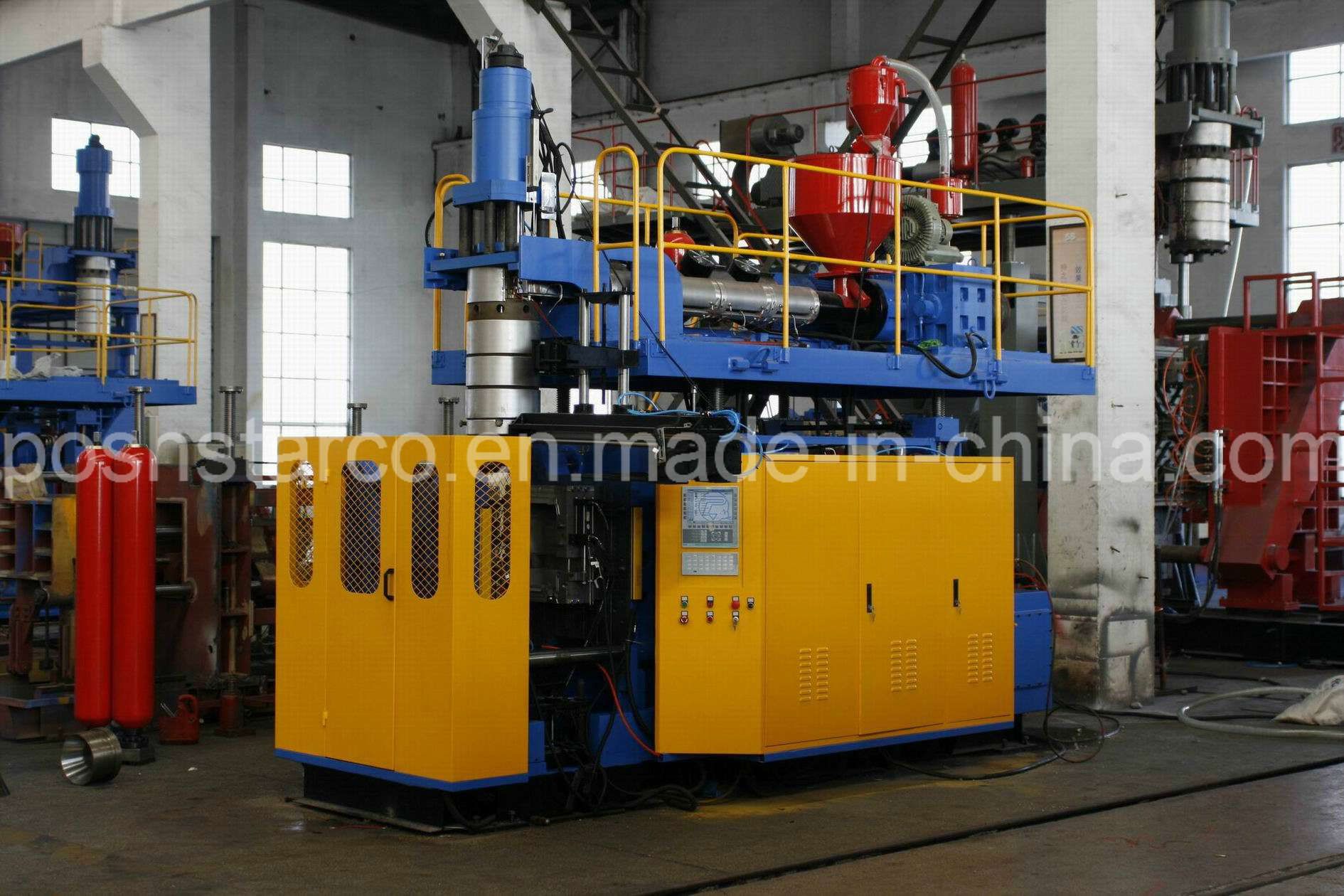

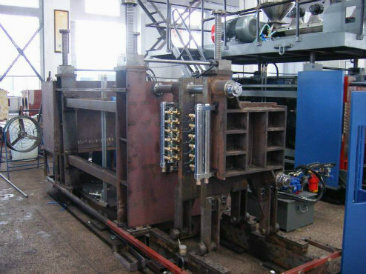

Clamping system: Fixed two-way translation module structure
Extruding system: Hard gear box + delta inverter

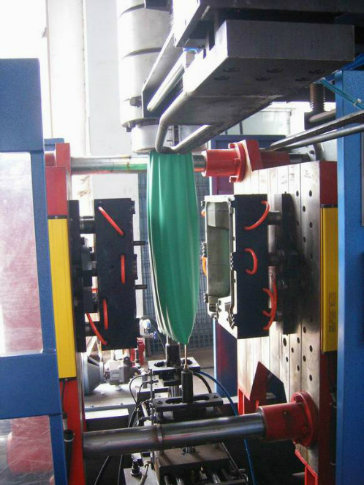

Die system: Storage die
Hydraulic system: Yuken hydraulic valve / oil pump +electric hydraulic proportion control
Circuit system: Misubishi PLC + micro computer + Temperature-controlled module
| Item | Unit | Single station |
| Material | / | HDPE / LDPE / PP |
| Max container capacity | L | 60 |
| Number of die | set | 1 |
| Output (productivity) | pcs / hr | Around 450 |
| Machine Dimension (L×W×H) | m | 46*25*40 |
| Machine weight | ton | 14.5 |
| Storage Capacity | L | 6.6 |
| Clamping Unit |
| Clamping force | KN | 240-300 |
| Platen distance | mm | 500-1000 |
| Power |
| Oil pump drive power | KW | 22-37 |
| Blowing pressure | Mpa | 0.8 |
| Air consumption | m³/min | 1 |
| Average energy consumption | Kw/hr | 38 |
| Cooling water presure | mpa | 0.3-0.4 |
| Water consumption | L/min | 100 |
| Extruder |
| Screw L/D ratio | L/D | 25-30 |
| Plasticizing capacity | Kg/hr | 140-180 |
| Extruder heating power | KW | 20-25 |
| Extruder driving power | KW | 45-55 |
| Die Head |
| Power of die heating | KW | 9.5-11.5 |
| Max die diameter | mm | 350 |
| Power supply |
| Voltage | v | 380/50HZ |
| Voltage fluctuation range | % | ±5 |
| Guarantee : 1 year. |
|
|
| Installation: |
|
|
We can send technician to install the machine or customer can send technician to our factory for training.
Buyer need to pay air thicket & food & hotels. |
| Remark: |
|
|
(a) All specifications and designs are subject to change without notice.
(b) The price of the machine all are in US dollars based on FOB Shanghai.
(c) The price is base on 380V, 50Hz, 3 Phase, for special power, add additional 5% of all machine. |
WUXI POSHSTAR INDUSTRY Co., Ltd. is established in 2003, succeeding blow moulding techniques & experiences accumulated many years by our engineers and technicians in this field.
We have been able to carve a niche in the industry due to the unstinting support of our industrious team; In other words, our team is the backbone of our organization. Our professionals possess vast experience, expertise and extensive knowledge in their respective domain which allows them to utilize their skill and talent wisely. We also can provide all the necessary facilities to our workforce in order make the latest and most advanced technology available to them. We have appointed the following professionals as a part of our team:
(1)Designers
(2)Quality Analysts
(3)Skilled Craftsmen
(4)Machine Operators
(5)Packaging Experts
(6)Sales and Marketing Professionals
Looking forward to cooperating with you in future.
