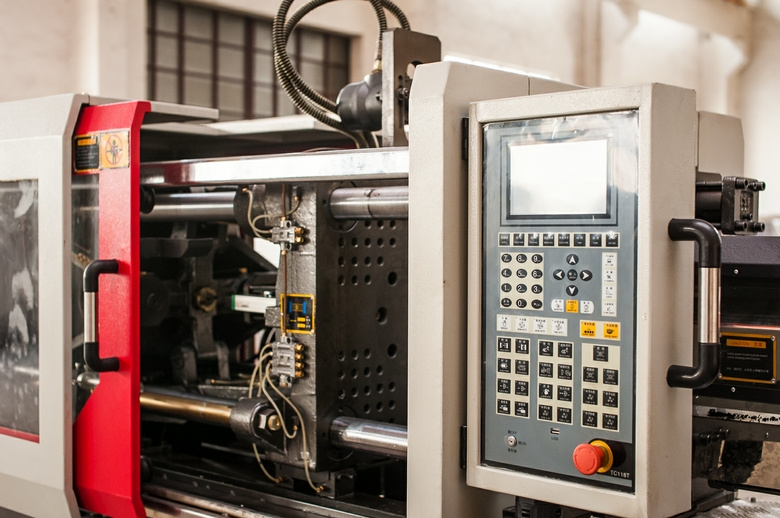

620 Ton Energy Saving Injection Molding Machine

620 Ton Energy Saving Injection Molding Machine
Price: US $ 80000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T



Product Description



We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T , injection weight from 50 to 10000g . with best price/ performance ration of any machine on the market.


Some of the important features:

  • Clamping system:  Faster response, stable and high rigidity
  • Injection system:    Accurate and flexible, lower rejection rate
  • Control system:      Computer and simple operation,molding data memory system
  • Power system:        Energy saving, high efficient and precise
  • Metal parts:              The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

  • Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
  • Visiable lubrication system:  on time clean, avoid cast steel parts abrasion and broken.
  • Oil treasure: Filter of hydraulic oil,good for pump and valves
  • Long working life: Imported spare parts and updated version
  • Aftersales service: Professional & timely
  • Delivery time:30-60 days
  • Port of dispatch: Shanghai












INJECTION UNIT
  Unit WMK-620
A B C
Screw Diameter Mm 85 90 95
Screw L/D Ratio L/D 21 19.6 18.6
Short Size Cm3 2492 2861 3188
Injection weight G 2270 2605 2903
Injection Rate g/s 454 521 580
Plasticizing capacity g/s 55 68 82
Injection Pressure Mpa 163 141 128
Screw Speed Rpm 0-105




CLAMPING UNIT
Clamp Force KN 6300
Space Between Tie Bars mm 880*835
Toggle Stroke mm 840
Max. Mold Height mm 880
Min. Mold Height mm 330
Ejector Stroke mm 250
Ejector Tonnage KN 166
Ejector Number P 17


OTHERS
Max. pump Pressure Mpa 16
Pump motor powder Kw 55
Heater Power Kw 42
Machine Dimension(L*W*H) M 9.2*2.2*2.8
Oil Tank Capacity L 1250
Machine Weight T 28
Prod Model: WMK-620
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Features: High Speed, Saving Electricity
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic
Type: Injection Molding
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
