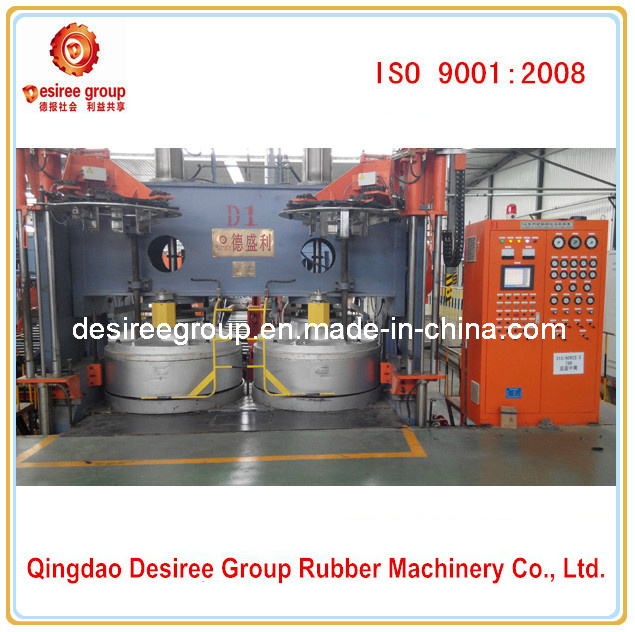

65.5" Tire Machine Tire Vulcanizing Machine
65.5" Tire Machine Tire Vulcanizing Machine
Function
1. For curing semi-radial tires of passenger car and light truck.
2. For curing all-steel heavy duty radial tires.
3. For curing nylon bias tires.
Notes
Post curing inflator is equipped to vulcanize bias tires.
Segmented mould controller is equipped to vulcanize radial tires.
Technical Parameter
Model | LL-B1640x2 (65.5") | LL-B1525×2 (63.5") | LL-B1310×2 (55") | LL-B1220×2 (48") | LL-B1145×2 (45") | LL-B1050×2 (42") |
Steam dome specification | 1640 | 1525 | 1310 | 1220 | 1145 | 1050 |
Max mould closing force | 4500 kN | 4220 kN | 2890 kN | 1920 kN | 1720 kN | 1320 kN |
Mould height(mm) | 254-635 | 254-635 | 245-445 | 305-505 | 230-455 | 180-300 |
Main motor power(kW) | 16 | 16 | 13 | 11 | 11 | 11 |
Bead Dia. | 19"-24.5" | 19"-24" | 16"-20" | 13"-20" | 12"-17.5" | 12"-16" |
