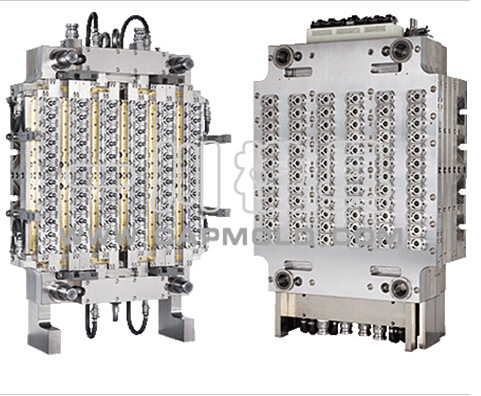

72 Cavities Preform Mould for Plastic Injection Mould

72 Cavities Preform Mould for Plastic Injection Mould
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Huangyan yichuan mold factory can supply:4 cavities preform mold,8 cavities preform mold,12 cavities preform mold,16 cavities preform mold,24 cavities preform mold,32 cavities preform mold,48 cavities preform mold,72 cavities preform mold.

Information about preform

1. There are 4 cavities up to 72 cavities on the mold.
2. Electric control system with simulating stretch testing improve yield rate.
3. Adopt world advanced dipole taper localization technique, each cavity self-clamp independently, ensure mold concentricity.
4. The material of mold die core and die cavity are made of Sweden special mold steel.

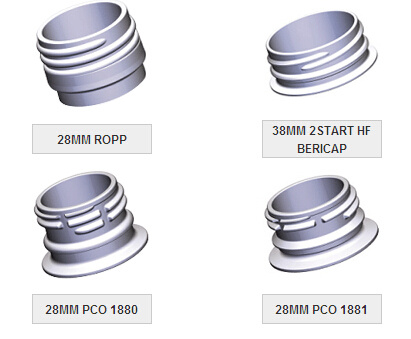

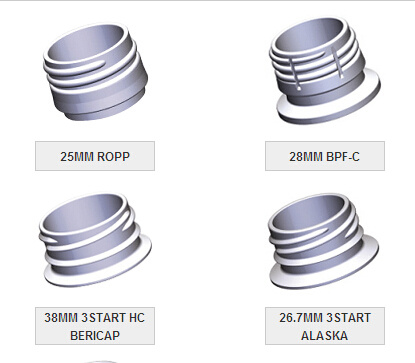

5. International standard screw neck, imported nitrided steel with high hardness is of long usage.
6. Advanced hot runner design and even heating temperature make sure the high quality of plastic products.
7. Valve gated type without tail reduces labor force.
8. At least 3 million guarantee.

PET Preform Mold Design

Yichuan Machinery designs not only preform with standard neck size for water preform, carbonated drink preform and oil preform, also design preform of special shape responding to customer's request. Yichuan adopts a wide range of computer-aided engineering service from design conception to the finished products to make customer satisfied.

Valve-gate system

Yichuan series preform injection mold adopts an advanced valve-gate unit, which is used to control the mold's injection hole open & close on each cavity. Reliable sealing function, smoothing moving, low thermal expansion rate, and long using life are its main features.

Patent designed rectifying system for preform's wall thickness

The patent designed rectifying device is equipped to rectify the preform thickness during preform production. The preform thickness can be adjusted below 0.05mm.

Heating system

Yichuan series PET preform mold with double heating system ensures perfect heating effect. It has separate temperature control mode: the heater bars are used to heat the mold's manifold plate; the small heaters are used to supply the continuous heating temperature for cavity nozzle.

Cooling system

A specially designed cooling system with perfect cooling effect for each inner parts including core, cavity and valve gate system of Yichuan preform injection mold.

Hot runner system

Yichuan series preform injection mold adopts specially designed hot runner system to achieve ideal and prompt heating effect for preform production. Lager flowing channels of such hot runner system ensures the mold to produce preform with lower injection pressure, which reduces mold's each part's wear & tear and maintenance cost, and also saves electric energy.

Steel material and machining tools

Mold cavity and Core are made of imported mold steel with fine polishing, high hardness and anti-corrosion to guarantee mold's high precession and good quality.
Digital Control Lathe, EDM, jig-boring machine and high-precision grinding machine have been used on mold machining. High machining precision and fast machining speed ensure Yichuan's high quality molds.

Heat treatment

After mechanical treatment, enhance steel's strength and prolong mold service life. For example, we coat chrome on the mold plate surface for rustproof purpose and go on nitrogen treatment on neck part to increase its hardness. Special coatings also are available at Yichuan Machinery. With right operation, PET preform mold reaches 2.5 million shots.

After-purchase service

Each set of PET preform mold undergoes strict mold trials before shipping from factory and attaches full set of parameter that is recorded depending on their own and sole serial number. Together with the PET preform mold, full set of spare parts will be supplied for free to keep mold normal working. In the use of the PET preform mold, Yichuan provides adequate spare part to any request and Yichuan service department are very willing to provide technical support immediately for any possible request in any time.

Prod Model: YC20150204
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shaping Mode: Injection Mould
Process Combination Type: Compound Die
Application: Hardware
Installation: Fixed
Runner: Hot Runner, Cold Runner
Yichuan mold factory was established in 1998, located in the land scape shore of east sea of China---Huangyan Dstrict Taizhou City.

We are the professional cap mould manufacturer. Such as water cap mould, sport cap mould, cosmetic cap mould, medical cap mould, 5-gallon cap mould, flip top cap mould, close automatically cap mould and so on. In the past years, we also enlarge our mould area, to produce thin wall mould, blowing mould, tableware mould, daily necessities mould.

Yichuan owns perfect mould producing equipment, system, and profssional team. Professional software, like CAD/CAM, PRO-E, UG, moldflow. We can provide our customer various complete solutions cover the product design and mould construction design.

At the beginning of our company, we strived for the high-quality products. And now we win the trust from customers and broad market.

Looking to the future, Yichuan will progress non-stopped, we will endeavour to provide you high-quality molds and good service. We will get a bright future together.
