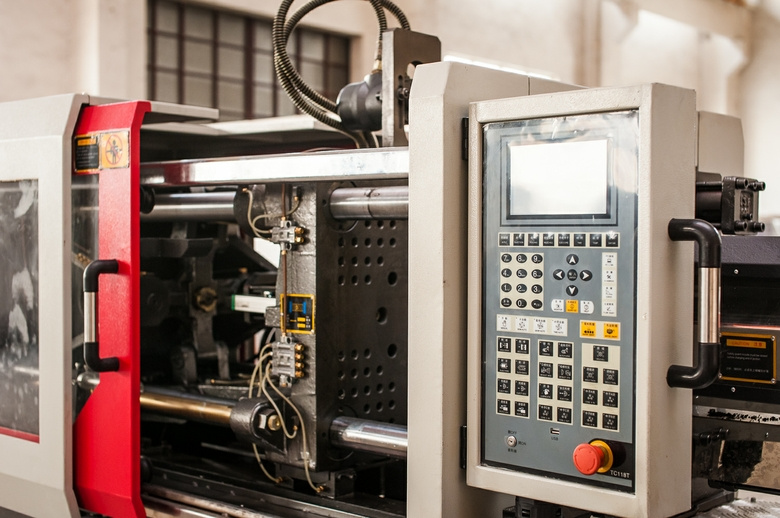

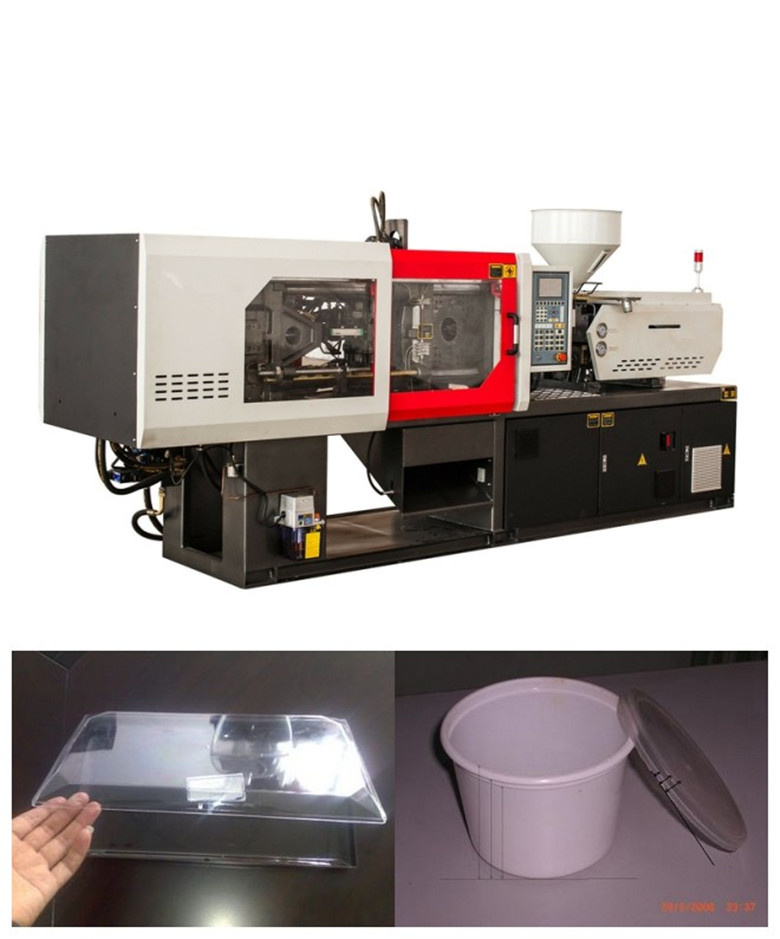

720 Ton Plastic Energy Saving Injection Molding Machine

Price:	US $ 110000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Changzhou Worldmark Machinery Co., Ltd.

Showroom Product Company Profile

720 Ton Plastic Energy Saving Injection Molding Machine

Product Description

We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T , injection weight from 50 to 10000g . with best price/ performance ration of any machine on the market.

Some of the important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation,molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil,good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time:30-60 days
Port of dispatch: Shanghai

INJECTION UNIT		Unit	WMK-720
		Unit	A	B	C
	Screw Diameter	Mm	90	100	110
	Screw L/D Ratio	L/D	22	19.8	18
	Short Size	Cm3	2815	3475	4205
	Injection weight	G	2560	3162	3826
	Injection Rate	g/s	692	855	1034
	Plasticizing capacity	g/s	86	112	138
	Injection Pressure	Mpa	176	142	117
	Screw Speed	Rpm	0-135
CLAMPING UNIT	Clamp Force	KN	7200
	Space Between Tie Bars	mm	910*910
	Toggle Stroke	mm	930
	Max. Mold Height	mm	950
	Min. Mold Height	mm	380
	Ejector Stroke	mm	260
	Ejector Tonnage	KN	181
	Ejector Number	P	17
OTHERS	Max. pump Pressure	Mpa	16
	Pump motor powder	Kw	30+30
	Heater Power	Kw	59.5
	Machine Dimension(LWH)	M	10.082.43
	Oil Tank Capacity	L	1350
	Machine Weight	T	37

Prod Model:	WMK-720
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamp Force:	7200kn
Max. Pump Pressure:	16mpa
Machine Dimension(LWH):	10.082.43m
Machine Weight:	37t
Automation:	Automatic
Structure:	Horizontal
Computerized:	Computerized
Plastic Type:	Thermoplastic
Type:	Injection Molding

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
