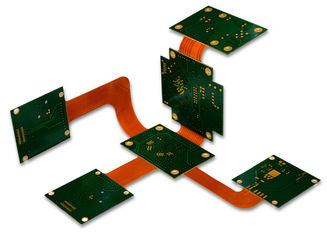

8 Layer PCB Board Design Customized Rigid Flex PCB
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
200/Piece |
| Pay Type: |
T/T |
Our Services
We are a Manufacturer & Supplier Specializing in Double Side PCB, Multi-Layer PCB, F4BK PCB, Ceramic PCB, Rogers PCB, Aluminum PCB. Meanwhile, we provide PCBA ( Assembly) and ODM, OEM service. We are specializes in a full SMT and through hole PCBA assembly, obtaining components, building
prototype quantities, and testing.
1. Our professional engineering team can put your project into production in a short time. Sample pictures and BOM are needed to make customized products
2. We can supply CAD and Pro-E designed precision moulds. Moulds can be designed and manufactured according to customers' requests or samples. Plastic injection processing available.
3. We have advanced equipment for through-hole and SMT DIP COB cable assembly.
4. ROHS compliant and lead-free process.
5. In-circuit, functional tests& burn-in tests, full system test
Specifications
PCB&PCBA Service
UL,SGS,Rohs Certificated
Competitive Price,High Quality
OEM PCBA are welcome
Flexible pcb
1. High quality,good price and service
2. Delivery time:5-7days.
3. Certificates:UL,ISO9001,RoHS
Detailed Specification of Flexible PCB Manufacturing
| Technical Specification |
| Layers: | 1~10 (flex Pcb) and 2~8 (rigid flex) |
|
| Min Panel Size: | 5mm x 8mm |
|
| Max Panel Size: | 250 x 520mm |
|
| Min Finished board thickness: | 0.05mm (1 sided inclusive copper) |
|
| Max Finished board thickness: | 0.3mm (2 sided inclusive copper) |
|
| Finished board thickness tolerance: | ±0.02~0.03mm |
|
| Material: | Kapton, Polyimide, PET |
|
| Base copper thickness (RA or ED): | 1/3 oz, 1/2 oz, 1oz, 2oz |
|
| Base PI thickness: | 0.5mil, 0.7mil, 0.8mil, 1mil, 2mil |
|
| Stiffner: | Polyimide, PET, FR4, SUS |
|
| Min Finished hole diameter: | Φ 0.15mm |
|
| Max Finished hole diameter: | Φ 6.30mm |
|
| Finished hole diameter tolerance (PTH): | ±2 mil ( ±0.050mm) |
|
| Finished hole diameter tolerance (NPTH): | ±1 mil ( ±0.025mm) |
|
| Min width/spacing (1/3oz): | 0.05mm/0.06mm |
|
| Min width/spacing (1/2oz): | 0.06mm/0.07mm |
|
| Min width/spacing (1oz): | Single layer: 0.07mm/0.08mm |
|
| Double layer: 0.08mm/0.09mm |
|
| Aspect Ratio | 6:01 | 8:01 |
| Base Copper | 1/3Oz--2Oz | 3 Oz for Prototype |
| Size Tolerance | Conductor Width:±10% | W ≤0.5mm |
| Hole Size: ±0.05mm | H ≤1.5mm |
| Hole Registration: ±0.050mm |
|
| Outline Tolerance:±0.075mm | L ≤50mm |
| Surface Treatment | ENIG: 0.025um - 3um |
|
| OSP: |
|
| Immersion Tin: 0.04-1.5um |
|
| Dielectric Strength | AC500V |
|
| Solder Float | 288ºC/10s | IPC Standard |
| Peeling Strength | 1.0kgf/cm | IPC-TM-650 |
| Flammability | 94V-O | UL94 |
Quotation Requirement :
Following specifications are needed for quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen:
f) Quantity
| Prod Model: |
RFPCB-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Min Panel Size: |
5mm X 8mm |
| Base Copper Thickness (Ra Or ED): |
1/3 Oz, 1/2 Oz, 1oz, 2oz |
| Layers: |
1~10 (Flex PCB) and 2~8 (Rigid Flex) |
| Base Pi Thickness: |
0.5mil, 0.7mil, 0.8mil, 1mil, 2 |
| Max Panel Size: |
250 X 520mm |
| Structure: |
Double-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Application: |
Aviation and Aerospace |
| Conductive Adhesive: |
Anisotropic Conductive Adhesive |
| Brand: |
Cayera |
