| Capacity: | 12.8L | Clamping Force: | 440-600KN |
| Max Product Volume: | 80L | Application: | Bottle |
| Components: | Delta Screen, Schneider Conductor, Yuken Pump | Control: | PLC, Electrical |
| Material: | Plastic | Product Name: | Blow Molding Machinery, Blow Moulding Machine |
| System: | Hydraulic |
|
|

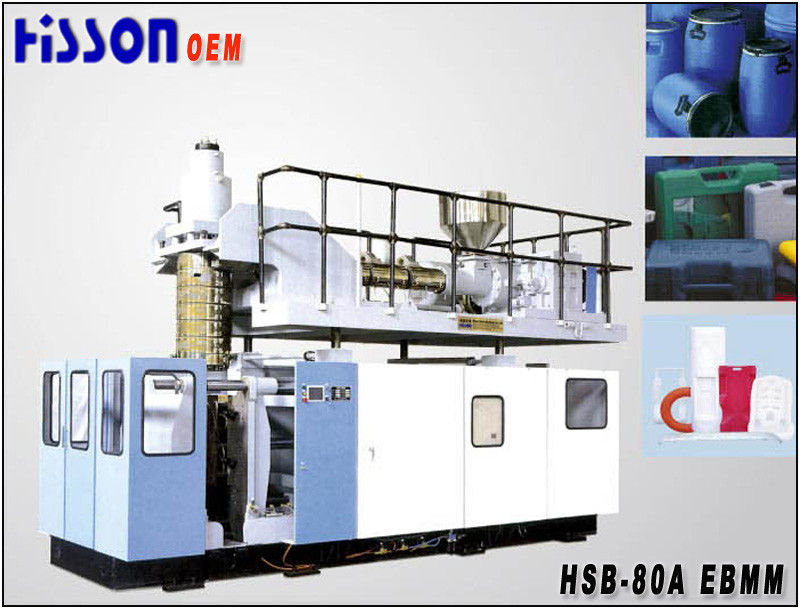

Hydraulic Bottle Extrusion Stretch Blow Moulding Machine , 80L 500KN
Machine main components adopt world famous brand, e.g.:
? PLC: MITSUBISHI (JAPAN),
? SCREEN: DELTA (TAIWAN)
? CONDUCTOR: SCHNEIDER(FRANCE)
? AIR SWITCH: MERIINGERIN (FRANCE)
? TRANSDUCER: DELTA (TAIWAN)
? POWER RESOURCE: MEAN WELL(TAIWAN)
? OIL PUMP: YUKEN (JAPAN)
? VALVE: YUKEN (JAPAN)
? SOLENOID VALVE: AIRTAC(TAIWAN)
? PARISON CONTROL SYSTEM: MOOG(JAPAN)
? OIL PIPE, JOINT: LIANHUI(TAIWAN)
Specifications:
HSB-80A EBMM Technical Parameters |
Max Product Volume | (L) | 80 |
Working station | - | 1 |
Screw Diameter | (mm) | 100 |
Screw L/D ratio | (L/D) | 25-30 |
Screw drive power | (KW) | 45-55 |
Screw heating capacity | (KW) | 8.4-10.5 |
No.of heating zone | (ZONE) | 4-5 |
Output of HDPE | (kg/h) | 180-250 |
Output of PVC | (kg/h) | - |
Oil pump drive power | (KW) | 37 |
Clamping force | (KN) | 440-600 |
Platen distance | (mm) | 500~1200 |
Max.Size of Mold | (W×H)(mm) | 800×1000 |
Capacity | (L) | 12.8 |
Max.Die diameter | (mm) | 420 |
Die heat capacity | (KW) | 9.2 |
No.of heating zone | (ZONE) | 5 |
Central distance of bi-die | (mm) | - |
Max.Die diameter(Bi-head) | (mm) | - |
No.of heating zone | (ZONE) | - |
Heating capacity | (KW) | - |
Blowing pressure | (Mpa) | 0.8 |
Air volume | (M3/MIN) | 1.2 |
Cooling water pressure | (Mpa) | 0.3 |
Water consumption | (L/MIN) | 100 |
Size of machine | (L×W×H)(m) | 5.42×2.45×3.9 |
Weight of machine | (TON) | 16 |
Main Features:
1) Electrical control system: The machine works under the PLC control(made by the Mitsubishi Co. of Japan) via a man-and-machine interface(displayed in Chinese version or in English version).The machine is equipped with a modularized temperature controller and operated through a touch-type coloure screen.All the production data can be set up,modified,searched and monitored and the machine trouble diagnosis can be completed both on the touch-type screen.The electric elements work on the non-contact working principle,thus being durable in service life.
2) Hydraulic system:The machine works under the proportional pressure control. The machine is equipped with hydraulic valves and hydraulic pumps imported from world-famous companies,thus assuring consistent and reliable working performance.
3) Plasticizing system:The high performance screw used on the machine assures thorough and homogeneous plasticization and mixing of plastics.
4) Speed regulation system:Frequency-converter-controlled speed regulator + speed change gearbox with hardened alloy steel gears.Speed regulation can be completed smoothly with less noise generated.Therefore the machine is durable in service life.
5) Mould opening,closing & moving system:A big 3-point central beam mechanism for opening & closing the mould halves and locking the mould assures balanced distribution of locking force and is free of any deformation after long-time operation.The mould is horizontally moved on linear spherical ball guideways at high traveling accuracy and rapid speed and with less resistance.
6) Air-bolowing needle bracket:The air-blowing needle bracket is of solid L-square design.The sturdy bracket assures smoothness of the product cut.
Hisson Plastic Machinery Co., Limited was founded in 1996, which located in Ningbo, a harbor city of eastern China.
We supply high quality plastic injection molding machine, PET bottle blow molding machine, extrusion blow molding machine and various kinds of plastic molds.
Our injection molding machines are exporting to many countries include European countries, Australia, Middle East, Afraica etc., now energy saving is popular, more than 60% of the machines we made are servo motor machines.
In PET bottle field, we have abundant experience, we have special PET preform injection molding machine, PET preform injection mold, semiauto and automatic PET bottle stretch blow molding machine and blow molds, we have 2-cavity, 4-cavity and 6-cavity automatic PET bottle blow molding machine. We provide 2D and 3D design service for PET preforms and PET bottles, according to samples, design draft or only idea.
We serve for all clients include agents and final users, we provide Turkey solution of complete production line, the auxiliary equipment we choose are from top grade manufacturers.
