Buyer Guide:
In order ot quote you the best price quickly, please provide the following information:
1.Product size;
2.Order quantity;
3.Printing and functional requirements;
4.Any special packing or other requirements
For Example:

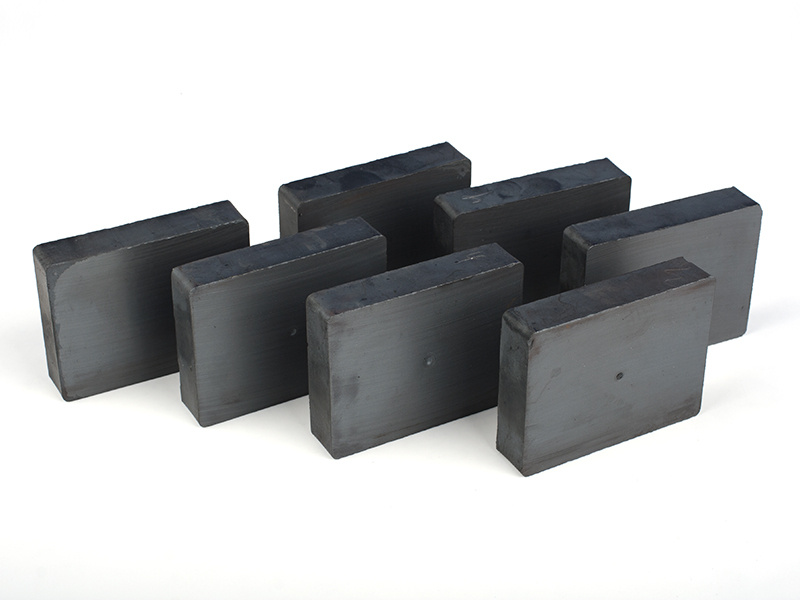

size: block 85x65x18MM
grade: Y30/Y30BH grade
coating: no coating
color: black
packing: 60pcs/carton or as per customer remand
Contact details:
Cell phone: 0086 18267013317
Welcome to inquiry for ferrite magnet,especially block magnet, the price is cheaper and the quality is good.
Our advantage:
1. Fast reply: all your enquiry will be replied within 12 hours;
2. Reasonable price: we are factory and able to offer better price;
3. Good quality: We are OEM suppliers and we are experienced in quality control;
4. Good communication: we have strong ability of international trade communication skills.
Should any of our products be of interest to you, please feel free to contact us. Any enquiry will be replied within 12 hours. We look forward to starting an enjoyable and fruitful business relationship with companies worldwide.
Chinese standard |
| Material | Br | HcB | HcJ | (BH)max |
| mT | KG | KA/m | KOe | KA/m | KOe | Kj/m³ | MGOe |
| Y10T | 200~235 | 2.0~2.35 | 125~160 | 1.57~2.01 | 210~280 | 2.64~3.52 | 6.5~9.5 | 0.8~1.2 |
| Y20 | 320~380 | 3.2~3.8 | 135~190 | 1.70~2.38 | 140~195 | 1.76~2.45 | 18.0~22.0 | 2.3~2.8 |
| Y22H | 310~360 | 3.1~3.6 | 220~250 | 2.77~3.14 | 280~320 | 3.52~4.02 | 20.0~24.0 | 2.5~3.0 |
| Y23 | 320~370 | 3.2~3.7 | 170~190 | 2.14~2.38 | 190~230 | 2.39~2.89 | 20.0~25.5 | 2.5~3.2 |
| Y25 | 360~400 | 3.6~4.0 | 135~170 | 1.70~2.14 | 140~200 | 1.76~2.51 | 22.5~28.0 | 2.8~3.5 |
| Y26H | 360~390 | 3.6~3.9 | 220~250 | 2.77~3.14 | 225~255 | 2.83~3.21 | 23.0~28.0 | 2.9~3.5 |
| Y27H | 370~400 | 3.7~4.0 | 205~250 | 2.58~3.14 | 210~255 | 2.64~3.21 | 25.0~29.0 | 3.1~3.7 |
| Y30 | 370~400 | 3.7~4.0 | 175~210 | 2.20~2.64 | 180~220 | 2.26~2.77 | 26.0~30.0 | 3.3~3.8 |
| Y30BH | 380~390 | 3.8~3.90 | 223~235 | 2.80~2.95 | 231~245 | 2.90~3.08 | 27.0~30.0 | 3.4~3.7 |
| Y30H-1 | 380~400 | 3.8~4.0 | 230~275 | 2.89~3.46 | 235~290 | 2.95~3.65 | 27.0~32.0 | 3.4~4.0 |
| Y30H-2 | 395~415 | 3.95~4.15 | 275~300 | 3.46~3.77 | 310~335 | 3.90~4.21 | 28.5~32.5 | 3.5~4.0 |
| Y32 | 400~420 | 4.0~4.2 | 160~190 | 2.01~2.38 | 165~195 | 2.07~2.45 | 30.0~33.5 | 3.8~4.2 |
| Y33 | 410~430 | 4.1~4.3 | 220~250 | 2.77~3.14 | 225~255 | 2.83~3.21 | 31.5~35.0 | 4.0~4.4 |
| Y35 | 400~410 | 4.00~4.10 | 175~195 | 2.20~2.45 | 180~200 | 2.26~2.51 | 30.0~32.0 | 3.8~4.0 |
| Grade | Allowed Value (min/typical) |
| Br | Hcb(BHC) | Hcj(IHC) | (BH)max |
| MT | KG | KA/m | KOe | KA/m | KOe | Kj/m³ | MGOe |
| HF8/22 | 200/220 | 2.00/2.20 | 125/140 | 1.57/1.76 | 220/230 | 2.76/2.89 | 6.5/6.8 | 0.8/1.1 |
| HF20/19 | 320/333 | 3.20/3.33 | 170/190 | 2.14/2.39 | 190/200 | 2.39/2.51 | 20.0/21.0 | 2.5/2.7 |
| HF20/28 | 310/325 | 3.10/3.25 | 220/230 | 2.76/2.89 | 280/290 | 3.52/3.64 | 20.0/21.0 | 2.5/2.7 |
| HF22/30 | 350/365 | 3.50/3.65 | 255/265 | 3.20/3.33 | 290/300 | 3.64/3.77 | 22.0/23.5 | 2.8/3.0 |
| HF24/16 | 350/365 | 3.50/3.65 | 155/175 | 1.95/2.20 | 160/180 | 2.01/2.26 | 24.0/25.5 | 3.0/3.2 |
| HF24/23 | 350/365 | 3.50/3.65 | 220/230 | 2.76/2.89 | 230/240 | 2.89/3.01 | 24.0/25.5 | 3.0/3.2 |
| HF24/35 | 360/370 | 3.60/3.70 | 260/270 | 3.27/3.39 | 350/360 | 4.40/4.52 | 24.0/25.5 | 3.0/3.2 |
| HF26/16 | 370/380 | 3.70/3.80 | 155/175 | 1.95/2.20 | 160/180 | 2.01/2.26 | 26.0/27.0 | 3.2/3.4 |
| HF26/18 | 370/380 | 3.70/3.80 | 175/190 | 2.20/2.39 | 180/190 | 2.26/2.39 | 26.0/27.0 | 3.3/3.4 |
| HF26/24 | 370/380 | 3.70/3.80 | 230/240 | 2.89/3.01 | 240/250 | 3.01/3.14 | 26.0/27.0 | 3.3/3.4 |
| HF26/26 | 370/380 | 3.70/3.80 | 230/240 | 2.89/3.01 | 260/270 | 3.27/3.39 | 26.0/27.0 | 3.3/3.4 |
| HF26/30 | 385/395 | 3.85/3.95 | 260/270 | 3.27/3.39 | 300/310 | 3.77/3.89 | 26.0/27.0 | 3.3/3.4 |
| HF28/26 | 385/395 | 3.85/3.95 | 250/265 | 3.14/3.33 | 260/275 | 3.27/3.45 | 28.0/30.0 | 3.5/3.8 |
| HF28/28 | 385/395 | 3.85/3.95 | 260/270 | 3.27/3.39 | 280/290 | 3.50/3.60 | 28.0/30.0 | 3.5/3.8 |
| HF30/26 | 395/405 | 3.95/4.05 | 250/260 | 3.14/3.33 | 260/270 | 3.27/3.39 | 30.0/31.5 | 3.8/3.9 |
| HF32/17 | 410/420 | 4.10/4.20 | 160/180 | 2.01/2.26 | 165/175 | 2.07/2.20 | 32.0/33.0 | 4.0/4.1 |
| HF32/22 | 410/420 | 4.10/4.20 | 215/225 | 2.70/2.83 | 220/230 | 2.76/2.89 | 32.0/33.0 | 4.0/4.1 |
| HF32/25 | 410/420 | 4.10/4.20 | 240/250 | 3.01/3.14 | 250/260 | 3.14/3.27 | 32.0/33.0 | 4.0/4.1 |
USA standard |
| Material | Br | HcB | HcJ | (BH)max |
| mT | KG | KA/m | KOe | KA/m | KOe | Kj/m³ | MGOe |
| C1 | 230 | 2.3 | 148 | 1.86 | 258 | 3.5 | 8.36 | 1.05 |
| C5 | 380 | 3.8 | 191 | 2.4 | 199 | 2.5 | 27 | 3.4 |
| C7 | 340 | 3.4 | 258 | 3.23 | 318 | 4.00 | 21.9 | 2.75 |
| C8(C8A) | 385 | 3.85 | 235 | 2.95 | 242 | 3.05 | 27.8 | 3.5 |
| C8B | 410 | 4.1 | 231 | 2.9 | 235 | 2.95 | 28.7 | 3.6 |
| C8C | 430 |
| 199 | 2.5 | 203 | 2.55 | 34.2 | 4.3 |
| C9 | 380 | 3.8 | 280 | 3.516 | 320 | 4.01 | 26.4 | 3.32 |
| C10 | 400 | 4.0 | 288 | 3.617 | 280 | 3.51 | 30.4 | 3.82 |
| C11 | 430 | 4.3 | 200 | 2.512 | 204 | 2.56 | 34.4 | 4.32 |
| C12 | 400 | 4.0 | 290 | 3.64 | 318 | 3.99 | 32 | 4.02 |
Zhejiang Dongyang Permanent Magnet Factory is a company of high-new technology in magnet field that combines R&D, manufacturing, marketing, service. Factory has more than 15 years of the magnet manufacturing experience. Factory insists to be the most professional magnet application specialists in China, to provide stable quality and reasonable price. Products have advantages of low weight loss, high consistency, high working temperature. Our main products includes: Sintering Ferrite magnet(Ceramic magnet), Sintering Neodymium magnet(NdFeB Magnet), and Rubber magnet(Bonded ferrite). Meanwhile we supply SmCo magnet, AlNiCo Magnet and Magnetic Assemblies. Our Products are widely used in many fields such as electronics, motors, pumps, receivers, sensors, medical equipment, magnetic separator and Microwave Communication equipment. Zhejiang Dongyang Permanent Magnet Factory always adheres to the quality policy of "pay close attention, put it into effect, innovate and develop, satisfy customers". We took the obtaining laws and regulations of RoHS. By Zhejiang Dongyang Permanent Magnet Factory staff' S quality work, investigating all customers' Needs, improving continually on upgrading equipments, technical capability, management methods, forming the ability of providing stable and reliable and products. We realize the target of offering customers with stable and reliable benefits.
