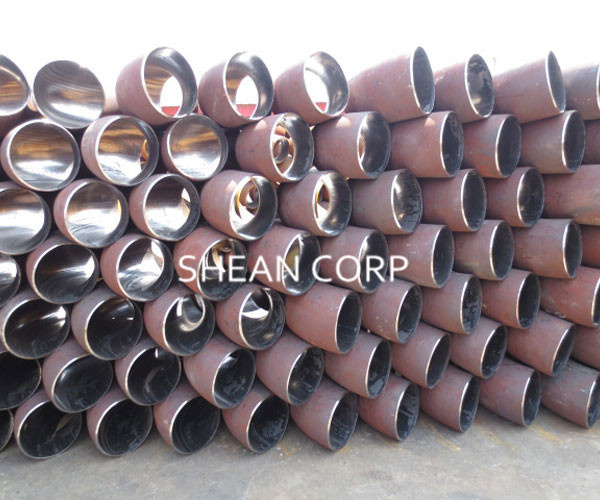

90 Degree Erw Elbow 1.35d
Shean(Cangzhou)corp ltd 90 Degree Erw Elbow 1.35d adopts special design. We also supply other pipe fittings, like Forged Carbon Steel 90 Degree Elbow, DIN Reducer, A234 wpb Ecc Reducer in Singapore.
OUR SHEAN ( CANGZHOU) CORP LTD HAS 90 Degree Erw Elbow 1.35d, Round Steel Pipe Cap.
Varieties of 90 Degree Erw Elbow 1.35d: SGP, STD, SCH40, SCH80, SCH160, with standard: ANSI B16.9 / 16.28, ASTM A53/A106, API 5L, ASME B36.10M---1996, DIN2605 / 2615 / 2616, JIS P2311/2312
Pipe 90 Deg Elbow size from 1/2" to 48"
Material Availabe: Carbon Steel, Alloy Steel, Stainless Steel
Normal treatment on surface: Transparent oil, rust-proof black oil or hot galvanized.
Standard of 90 Degree Erw Elbow 1.35d: ASTM, JIS, DIN, GB. Shean(cangzhou)corp ltd has through ISO9001: 2000 certificate, has aggressive leadships and outstanding professionals.
Your demand, our reliability.
Norminal Pipe Size
DN |
Outside Diameter at Bevel
D |
Center to End |
Center to Center |
Back to Faces |
45°Elbow H |
90°Elbow F |
180°Elbow P |
180°Elbow K |
series A |
series B |
Long Radius |
Long Radius |
short Radius |
Long Radius |
short Radius |
Long Radius |
short Radius |
15 |
21.3 |
18 |
16 |
38 |
-- |
76 |
-- |
48 |
-- |
20 |
26.9 |
25 |
16 |
38 |
-- |
76 |
-- |
51 |
-- |
25 |
33.7 |
32 |
16 |
38 |
25 |
76 |
51 |
56 |
41 |
32 |
42.4 |
38 |
20 |
48 |
32 |
95 |
64 |
70 |
52 |
40 |
48.3 |
45 |
24 |
57 |
38 |
114 |
76 |
83 |
62 |
50 |
60.3 |
57 |
32 |
76 |
51 |
152 |
102 |
106 |
81 |
65 |
76.1(73) |
76 |
40 |
95 |
64 |
191 |
127 |
132 |
100 |
80 |
88.9 |
89 |
47 |
114 |
76 |
229 |
152 |
159 |
121 |
90 |
101.6 |
-- |
55 |
133 |
89 |
267 |
178 |
184 |
140 |
100 |
114.6 |
108 |
63 |
152 |
102 |
305 |
203 |
210 |
159 |
125 |
139.7 |
133 |
79 |
190 |
127 |
381 |
254 |
262 |
197 |
150 |
168.3 |
159 |
95 |
229 |
152 |
457 |
305 |
313 |
237 |
200 |
219.1 |
219 |
126 |
305 |
203 |
610 |
406 |
414 |
313 |
250 |
273.0 |
273 |
158 |
381 |
254 |
762 |
508 |
518 |
391 |
300 |
323.9 |
325 |
189 |
457 |
305 |
914 |
610 |
619 |
467 |
350 |
355.6 |
377 |
221 |
533 |
356 |
1067 |
711 |
711 |
533 |
400 |
406.4 |
426 |
253 |
610 |
405 |
1219 |
813 |
813 |
610 |
450 |
457.0 |
478 |
284 |
686 |
457 |
1372 |
914 |
914 |
686 |
500 |
508.0 |
529 |
316 |
762 |
508 |
1524 |
1016 |
1016 |
762 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
