900kn High Precision Injection Molding Machine (YH90)

900kn High Precision Injection Molding Machine (YH90)
Price: US $ 10000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

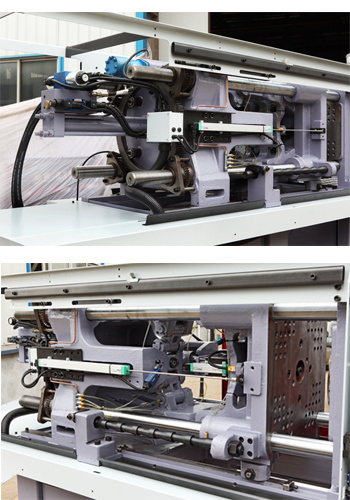

Clamping unit
5-point double toggle clamping system
Mechanical &electrical safety devices
Low pressure moule protection
Controllable multi_stage mold open/close position,pressure&speed
Fast moule clamping with differential device
Robust casting construcition with strengthened tie bar for maximum service life and best molding results
Automatic mould height adjustement
Variable mokes of djector movement
Automatic central lubrication

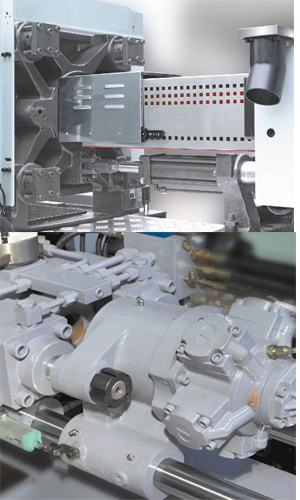

Injection unit
Double drive cylinder injection system with symmetrical oil circuit
Controllable multi-stage injection pressure,speed and position
Controllable multi-stage dwell pressure,speed  and time
Controllable multi-stage charging speed ,position and time
PID barrel temperature control
Screw plasticizing back pressure control
Suck back function
Plasticizing cold start prevention
Screw speed inspection
Self purging function
Efficient plasticizing device with strong torque hydraulic motor

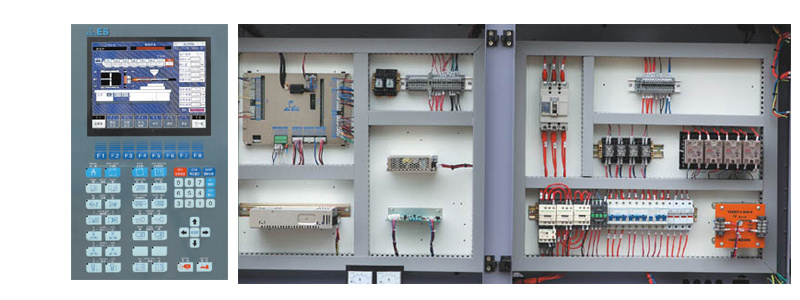

Control System
Japanese controller with 10 inch LED color screen.
Mold data storage
Linear transducer forclamping/injection/ejection control
English ,Spanish,Portuguese,Russsian,Arabic and other language options
Hydraulic system
Efficient and sound reduced hydraulic sustem
Weldless oil circuit
Hydtaulic proportional control
Hydraulic elements by well-known brand with high reliability and long service life
Oil temperature alarm


YH90



INJECTION UNITTABC
Sxrew diameter          mm28323640
Screw stroke            mm175175175175
Screw  L:D              L/D242320.518.3
Shot volume             cm3108141178220
shot weight Ps           g97127160198
injection pressure      Mpa257197156126
dwell pressure     kgf/cm22623200815871285
injection speed     mm/sec120120120120
injection rate     cm3/sec73.996.5122.1150.7
screw rotate speed     rpm220220220220
nozzle sealing force    KN38.2
nozzle advancestroke    mm30
heater power            KW6.64
CLAMPING UNIT
clamp force             KN 900
toggle steoke           mm320
space between tie bars  mm365×365
max.mould height        mm400
min.mould height        mm150
ejector number          pc5
ejector  force          KN35.3
ejector  stroke         mm100
OTHERS
specialpump pressure    Mpa21
standrd pump pressure   Mpa18
machine dimensions(L×W×H)m4.2×0.93×1.63
Machine weight          T3
oil tank capacity       L175
pump motor power        KW11

Prod Model: YH90
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screw Injection Machine: Plastics Processing Machine
Type: Injection Blow Molding
Structure: Horizontal
Plastic Type: Thermoplastic
Plasticizing Way: Screw Type
Clamping Way: Hydraulic & Mechanical
Automation: Automatic
Computerized: Computerized
Certification: CE
Building long-term customer relationship and pursuing technology innovation have been the foundation of FL Machinery.

In FL Machinery, we have full understanding of customer demands in a changing technology environment.

Our engineers are always striving for providing our customers the solutions that they need to stay ahead of the competition.

FL machinery assures product quality by using of high quality components from Europe, the USA, Japan, and Taiwan. By applying advanced 3-D software design, our engineers have come up with innovative and advanced machines that integrate the latest mechanical, electrical and hydraulic technologies into one machine, to produce very efficient and low maintenance plastic machines.

FL Machinery is of the best quality, with characteristic high rigidity, strong mould locking force and high injection pressure as well as high precision. Our machine is well known among customers by their durability, low energy consumption and reliability.

We FL Machinery welcome you and your valuable suggestions for our continuous improvement and sustainability.
