900kn High Precision Injection Molding Machine (YH90)

900kn High Precision Injection Molding Machine (YH90)
Price: US $ 10000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

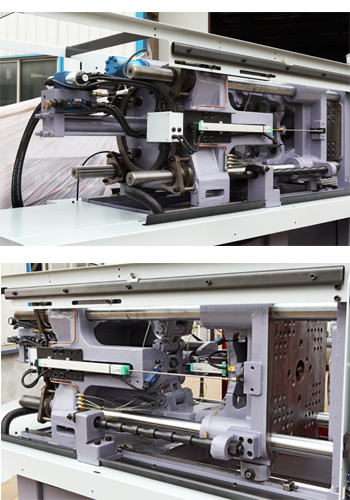

Clamping unit
5-point double toggle clamping system
Mechanical &electrical safety devices
Low pressure moule protection
Controllable multi_stage mold open/close position,pressure&speed
Fast moule clamping with differential device
Robust casting construcition with strengthened tie bar for maximum service life and best molding results
Automatic mould height adjustement
Variable mokes of djector movement
Automatic central lubrication

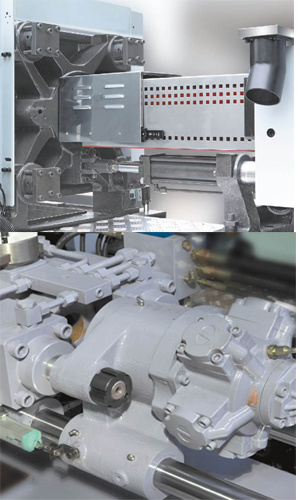

Injection unit
Double drive cylinder injection system with symmetrical oil circuit
Controllable multi-stage injection pressure,speed and position
Controllable multi-stage dwell pressure,speed  and time
Controllable multi-stage charging speed ,position and time
PID barrel temperature control
Screw plasticizing back pressure control
Suck back function
Plasticizing cold start prevention
Screw speed inspection
Self purging function
Efficient plasticizing device with strong torque hydraulic motor

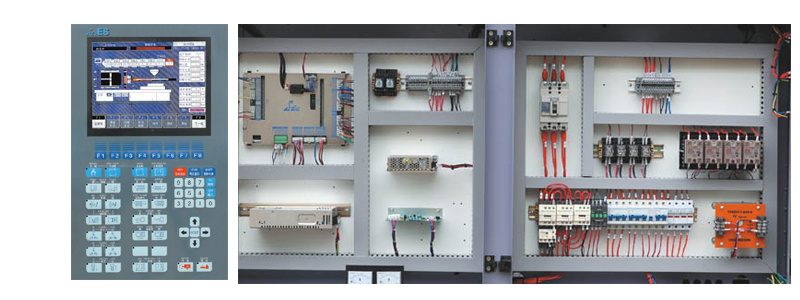

Control System
Japanese controller with 10 inch LED color screen.
Mold data storage
Linear transducer forclamping/injection/ejection control
English ,Spanish,Portuguese,Russsian,Arabic and other language options
Hydraulic system
Efficient and sound reduced hydraulic sustem
Weldless oil circuit
Hydtaulic proportional control
Hydraulic elements by well-known brand with high reliability and long service life
Oil temperature alarm


YH90
INJECTION UNIT T A B C
Sxrew diameter          mm 28 32 36 40
Screw stroke            mm 175 175 175 175
Screw  L:D              L/D 24 23 20.5 18.3
Shot volume             cm3 108 141 178 220
shot weight Ps           g 97 127 160 198
injection pressure      Mpa 257 197 156 126
dwell pressure     kgf/cm2 2623 2008 1587 1285
injection speed     mm/sec 120 120 120 120
injection rate     cm3/sec 73.9 96.5 122.1 150.7
screw rotate speed     rpm 220 220 220 220
nozzle sealing force    KN 38.2
nozzle advancestroke    mm 30
heater power            KW 6.64
CLAMPING UNIT
clamp force             KN  900
toggle steoke           mm 320
space between tie bars  mm 365×365
max.mould height        mm 400
min.mould height        mm 150
ejector number          pc 5
ejector  force          KN 35.3
ejector  stroke         mm 100
OTHERS
specialpump pressure    Mpa 21
standrd pump pressure   Mpa 18
machine dimensions(L×W×H)m 4.2×0.93×1.63
Machine weight          T 3
oil tank capacity       L 175
pump motor power        KW 11
Prod Model: YH90
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screw Injection Machine: Plastics Processing Machine
Type: Injection Blow Molding
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic
Plasticizing Way: Screw Type
Clamping Way: Hydraulic & Mechanical
Certification: CE
Building long-term customer relationship and pursuing technology innovation have been the foundation of FL Machinery.

In FL Machinery, we have full understanding of customer demands in a changing technology environment.

Our engineers are always striving for providing our customers the solutions that they need to stay ahead of the competition.

FL machinery assures product quality by using of high quality components from Europe, the USA, Japan, and Taiwan. By applying advanced 3-D software design, our engineers have come up with innovative and advanced machines that integrate the latest mechanical, electrical and hydraulic technologies into one machine, to produce very efficient and low maintenance plastic machines.

FL Machinery is of the best quality, with characteristic high rigidity, strong mould locking force and high injection pressure as well as high precision. Our machine is well known among customers by their durability, low energy consumption and reliability.

We FL Machinery welcome you and your valuable suggestions for our continuous improvement and sustainability.
