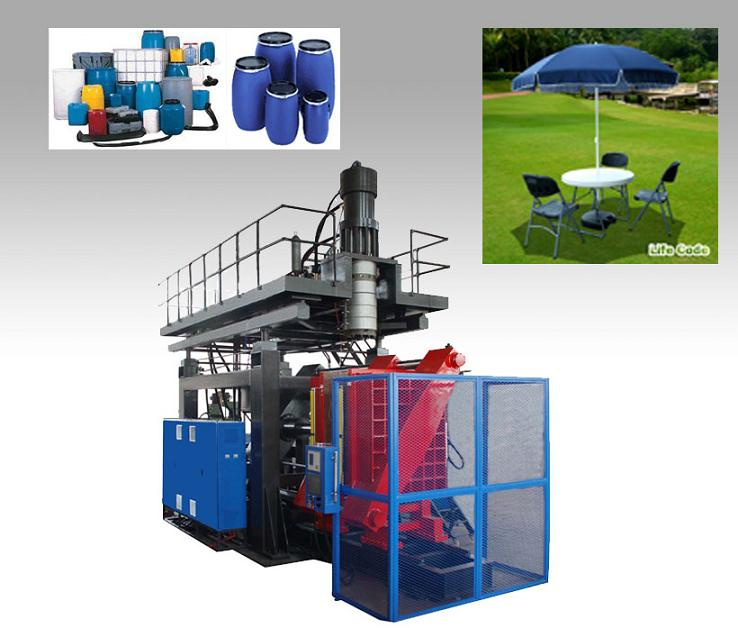

Clamping system: Fixed mold open-closing system
Extrusion system: Hard gear surface decelerator + Japan inverter
Die system: Accumulator head
Hydraulic system: Japan hydraulic valve seal and proportional control
Control system: Japan PLC + human-machine interface + PLC automatic temperature control model
Specifications |
|
PXB-100 SERIES |
Material |
|
PE PP ABS |
Max container capacity |
L |
90 |
Output (dry cycle ) |
PC/HR |
260 |
Machine dimension (L*W*H) |
M |
6.2*2.8*4.5 |
Total weight |
T |
14 |
Clamping system |
|
PXB-100 SERIES |
Clamping force |
KN |
360 |
Platen opening stroke |
MM |
500-1200 |
Platen size |
MM |
1080*1000 |
Max mould size ( W*H ) |
MM |
800*1000 |
Mould thickness |
MM |
520-650 |
Overall dimension (L*W*H) |
M |
6.2*1.7*1.94 |
Power |
|
PXB-100 SERIES |
Max drive |
KW |
90 |
Total power |
KW |
108 |
Fan power for screw |
KW |
0.6 |
Air pressure |
MPA |
0.8 |
Air consumption |
M3/MIN |
0.8 |
Average energy consumption |
kw |
51 |
Extrusion system |
|
PXB-100 SERIES |
Screw diameter |
MM |
100 |
Screw L/D ratio |
L/D |
24 |
Melting capacity |
KG/HR |
160 |
Number of heating zone |
ZONE |
5 |
Extruder heating power |
KW |
25.1 |
Extruder driving power |
KW |
40 |
Overall dimension (L*W*H) |
M |
4.8*2.32*1.6
|
Head |
|
PXB-100 SERIES |
Number of heating zone |
ZONE |
5 |
Power of head heating |
KW |
26 |
Max die-pin diameter |
MM |
450 |
Accumulator capacity |
L |
12 |
Overall dimension (L*W*H) |
M |
2.45*1.0*0.64 |
