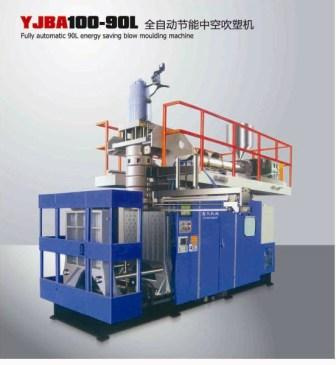

90L Blow Moulding Machine (YJBA100-90L)

90L Blow Moulding Machine (YJBA100-90L)
Price: US $ 71450.00set
Trade Terms: FOB,EXW,CIF
Min Order: 1set
Pay Type: L/C,T/T
60L blow moulding machine

For containers from 50L up to 90L

With 12L accumulator head

Max clamping force 400KN

Linear rolling motion guider equipped
Easily operation by PLC+touch screen
Imported hydraulic component
Energy saving hydraulic design

Equipped with take out robot

Parison programmer can be adopt

Multi-functional bottom blow mechanism

Servo motor can be equipped
Basic  Parameter
Applicable Material PE, PP,.....
Max. Product Volume 90L
Dry Cycle 360 pcs/h
Machine Size (L×W×H) 5.4×2.5×4(M)
Machine Weight 16T
Total Power 95KW
Power Consumption 47KW/H
Plasticizing System
Specification good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting
Speed Reducer hard-teeth, low noise & wear-resistant speed reducer
Machine Barrel Screw 100mm,L/D=25, 38CrMoALA high quality nitrogen steel
Plasticizing 180Kg/H
Heating Zone 4 Zone  Casting, aluminum heater
Heating Power 16K W
Extrusion Motor three phase asynchronism motor (380V\50HZ),45KW
Cooling fan 3 zones    85W
Extrusion System
Specification Accumulator die head
Die Head 38CrMoALA high quality nitrogen steel
Max. Dia. of Die Head 300mm
Heating Zone 4 zone heat coil of stainless steel
Accumulator capacity 12L
Heating Power 11.9 KW
Die Heat Huff Pressure and capacity can be adjusted
Preform Adjustment Automatic
Heat insulation By heat insulating board between accumulator and hydraulic cylinder
Open and Clamping System
Specification Linear rolling guide , three tie bar and three cylinder
Clamping Force 500KN
Mold Move Stroke 550~1250mm
Max. Mold Platen W×H:800×1000mm,
Electric Control System
Specification Standard PLC and colorful touch screen for blow molding machine
Touch Screen Colorful touch screen, auto alarm, diagnose the system
Temperature Control Self-regulation
Temperature Module MITSUBISHI automatic temperature module, digital
Action control Japan Mitsubishi, programmable
Protection Function Automatic alert and breakdown feedback double protection of mechanical apparatus
Hydraulic System
Specification Proportion pressure controller changing direction quickly and softly
Oil pump motor three phase a synchronism (380V\50HZ),22KW
Hydraulic pump Vane  pump
Hydraulic valve imported hydraulic components_YUKEN
System pressure 100kg/CM 2
Pipes Bilayer high pressureblast pipes
Cooling Mode Water cool and oil cooler separately
Pneumatic System
Specification imported famous brand pneumatic pressure
Air Pressure 0.6Mpa
Air Consumption 0.8M 3 /min
Valve TAIWAI  AIRTAC
Cooling System
Specification mold\barrel\oil box adopt independentcooling waterway
Cooling Medium water
Water Consumption 50L/min
Water Pressure 0.2-0.6MPa
Thickness control system
Parison programmer Japan MOOG 100 points
Servo valve Japan MOOG
Sensor ItalyGefran
Take out Robot
Pneumatic Cylinder Germany FESTO non-rod pneumatic cylinder
Bottom blow mechanism
Bottom blow Ready for X-Y-Z expand material and blow
Prod Model: YJBA100-90L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition: New
Place Of Origin: Jiangsu, China (Mainland)
Size: 5.1m*2.5m*3.9m
Weight: 12.8t
Automation: Automatic
Making Method Of Parison: Extrusion-Blow Molding
Raw Material: HDPE
Computerized: Computerized
Certification: CE
