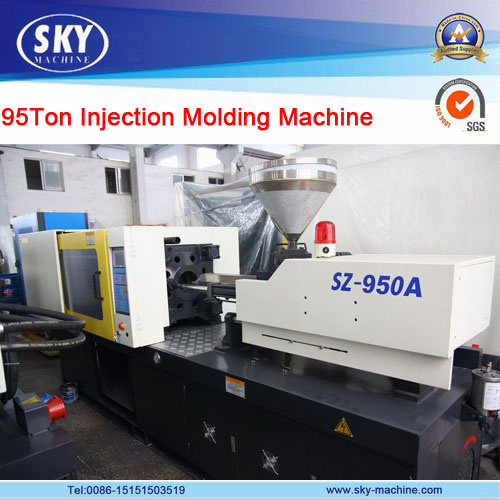

95TON Injection Molding Machine
Clamping Unit
5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).
Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.
Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.
|
Item |
Unit |
Data |
|
Max. clamping force |
KN |
950 |
|
Max. opening distance |
mm |
340 |
|
Space between tie bars |
mm |
360×360 |
|
mold height(min-max) |
mm |
135-380 |
|
Max. daylight |
mm |
720 |
|
Ejector force |
KN |
25.4 |
|
Ejector stroke |
mm |
85 |
|
Ejector quantity |
|
5 |
|
Screw diameter |
mm |
30 |
35 |
40 |
|
Screw L/D ratio |
L/D |
24.5 |
21 |
18.4 |
|
Theoretical shot volume |
cm3 |
113 |
154 |
201 |
|
Plasticizing weight(PS) |
g |
103 |
140 |
183 |
|
Injection pressure |
Mpa |
249 |
183 |
140 |
|
Theoretical injection rate(PS) |
g |
67.5 |
91.8 |
120 |
|
Plasticizing capacity(PS) |
g/s |
8.3 |
12.5 |
18 |
|
Screw torque |
N.m |
510 |
|
Max. screw rotate speed |
r/min |
260 |
|
Injection stroke |
mm |
160 |
|
Pump motor power |
KW |
11 |
|
Pump pressure |
Mpa |
16 |
|
Heating power |
KW |
7.3 |
|
Heating zone |
|
4 |
|
Size(L×W×H) |
m |
4.25×1.2×1.8 |
|
Net weight |
t |
3.2 |
|
International designation |
|
950-280 |
