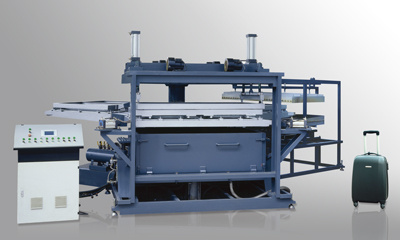

AFXC-1075 STYLE PC ABS luggage vacuum thermoforming machine: one set
Main parameters:
2.1.thermoforming style: Vacuum pressure compensation type
vacuum valve: 2 inch
Vacuum capacity: -0.08MPA
Vacuum value adjustable by ball valve.

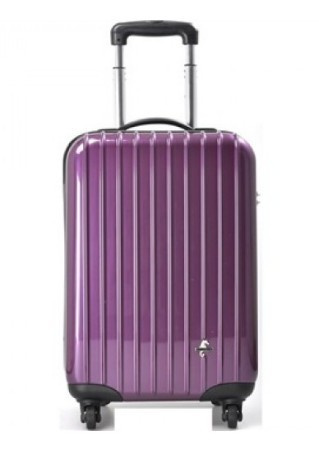

2.2 Lugguage size:
according to customer's design
2.3 sheet clamping plate: one set
2.4 mould fix base suitable for sheet size: 2 pcs
2.5 sheet cushion sheet: 3 pcs
2.6Sheet pneumatic clamping: Control valve adopts safe pressure matainance valve
2.7heating equipment: 1 set
heating style: square ceramic heaters
2.8Heating box's independent electric control box: 1 sets
2.9 Forming equipment: 1 set
Independent control for inside air blower and external air blower
Both blower Air flow adjustable
3.0Forming box and forming mould pneumatic up-down
3.1 Rotary stand tramission style: gears
3.2 air pneumatic pushing rotary. It has a hydraulic cylinder for buffering
3.3 pneumatic unload mould
3.4 whole machine's electric control box: 1 set
PLC control system
6 inch touch screen
AF900 |
PC+ABS+PC |
AF1050 |
PC+ABA+PC |
AF1200 |
PC+ABA+PC |
We are an expert extruder manufacturer in China since 1980s. We have about 400 workers and 60000 m2 plant. We are the biggest manufacturer in southern China. Happy to help you.
In order to improve the processing technologh, we have set up individual department for designing and manufacturing of sheet, cast film, non-woven fabrics, pipe, profile as well as recycling extrusion line. We can provide customer with professional mechanical design and complete processing technologh based on special requirements. After 34 years continuous efforts and experience accumulation, YAOAN has become one of leading manufacturers in this field. The equipment are widely used in construction, packaging, medical decoration as well as furniture.
Our company supplys different kinds of products. High quality and favaroble price. We' Re pleased to get your Inquiry and we will come back to as soon as possible. Sincerely welcome to visit our company. You can flight to GUANGZHOU BAIYUN airport or SHENZHEN BAOAN airport, we can pick you up at there. You will enjoy your trip to visit us.
