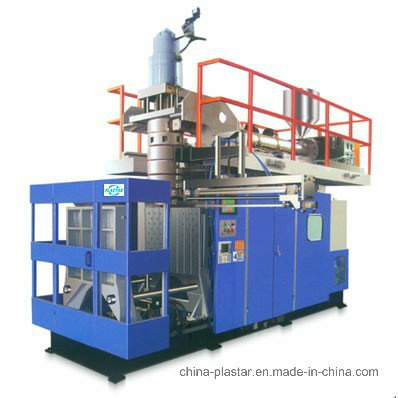

Accumulation-Saving Energy Extrusion Blowing Machine (PJBA80-30L)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Features- PLC + touch screen, making the operation easy. Automatic Malfunction alarm with self diagnosis, making the malfunction clear at glance;
- Center input die head, eliminating the knit line completely and making it easy to change the material and color;
- Double bar horizontal motion structure in moving, opening and closing mold, making the clamping force equally distributed , so the cut is smoother;
- Control the hydraulic system with imported proportional valve, ensuring the action steady, accurate and energy saving;
- High speed and efficient plasticizing system, mixing well and ensuring the product purity.
Basic parameter |
Applicable material | PE, PP,..... |
Max. product volume | 30 L |
Dry cycle | 650 pcs/h |
Machine size (L×W×H) | 4.23×2.3×3.5 (m) |
Machine weight | 11.5 t |
Total power | 74 kw |
Power consumption | 38 kw/h |
Plasticizing system |
Specification | Good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
Speed reducer | Hard-teeth, low noise & wear-resistant speed reducer |
Machine barrel screw | ∮80mm,L/D=24, 38CrMoALA high quality nitrogen steel |
Plasticizing | 100 kg/h |
Heating zone | 4 zones casting, aluminum heater |
Heating power | 16 kw |
Extrusion motor | Three phase a synchronism motor (380v,50Hz),30kw |
Cooling fan | 3 zones 85w |
Extraction system |
Specification | Accumulator die head |
Die head | 38CrMoALA high quality nitrogen steel |
Max. dia. of die head | 300mm |
Heating zone | 4 zones heat coil of stainless steel |
Accumulator capacity | 4 L |
Heating power | 11.9 kw |
Die heat huff | Pressure and capacity can be adjusted |
Preform adjustment | Automatic |
Heat insulation | By heat insulating board between accumulator and hydraulic cylinder |
Open and clamping system |
Specification | Linear rolling guide , three tie bar and three cylinder |
Clamping force | 220 kn |
Mold move stroke | 400~830 mm |
Max. mold platen | W×H:600×700 mm |
Electric control system |
Specification | Standard PLC and colorful touch screen for blow molding machine |
Touch screen | Colorful touch screen, auto alarm, diagnose the system |
Temperature control | Self-regulation |
Temperature module | MITSUBISHI automatic temperature module, digital |
Action control | Japan Mitsubishi, programmable |
Protection function | Automatic alert and breakdown feedback double protection of mechanical apparatus |
Hydraulic system |
Specification | Proportion pressure controller changing direction quickly and softly |
Oil pump motor | Three phase a synchronism (380v,50Hz),15kw |
Hydraulic pump | Vane pump |
Hydraulic valve | Imported hydraulic components-YUKEN |
System pressure | 100 kg/cm2 |
Pipes | Bilayer high pressure blast pipes |
Cooling mode | Water cool and oil cooler separately |
Pneumatic system |
Specification | Imported famous brand pneumatic pressure |
Air pressure | 0.6 MPa |
Air consumption | 0.8 m3/min |
Valve | TAIWAI AIRTAC |
Cooling system |
Specification | Mold,barrel,oil box adopt independent cooling waterway |
Cooling medium | Water |
Water consumption | 50 L/min |
Water pressure | 0.2-0.6 MPa |
Thickness control system |
Parison programmer | Japan MOOG 30 points |
Servo valve | Japan MOOG |
Sensor | Italy Gefran |
Take out robot |
Pneumatic cylinder | Germany FESTO non-rod pneumatic cylinder |
Bottom blow mechanism |
Bottom blow | Ready for X-Y-Z expand material and blow |
Prod Model: |
PJBA80-30L |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East |
Max. Product Volume: |
30L |
Raw Material: |
PE |
Making Method Of Parison: |
Extrusion-Blow Molding |
Automation: |
Automatic |
Computerized: |
Computerized |
Certification: |
QS |
