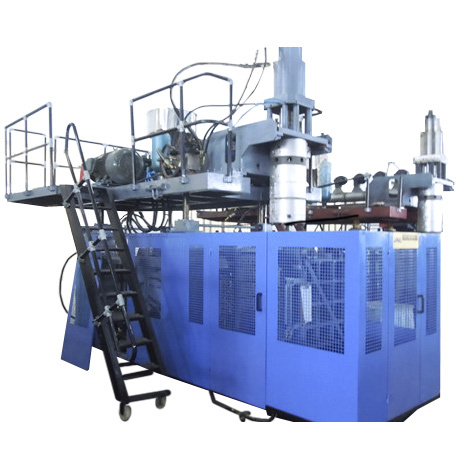

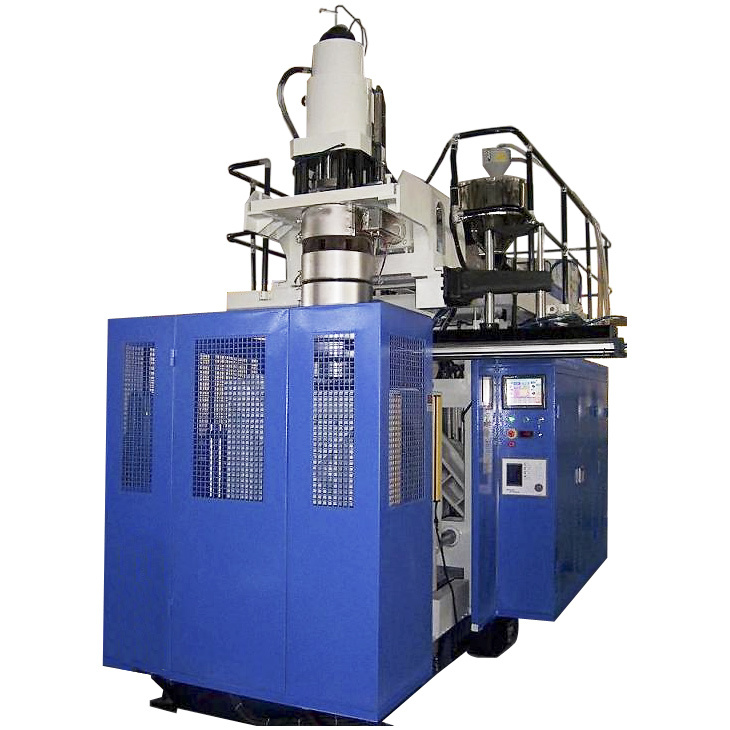

Accumulator Extrusion Moulding Machine for Drums Jerry Cans Toys:1). Extrusion blow molding machine experience for more than 12 years
2). Machine produce kinds of plastic products, such as bottles, cans, chemical drums, plate, tables, chairs, auto parts, road barriers, guiderails, blow pallets, ibc containersand etc.
3). The famous imported components for machine
4). Taiwan yuken hydraulic valve for stable working
5). Double station, high speed for bottle extrusion.
Some general information for this Accumulator Extrusion Moulding Machine for Drums Jerry Cans Toys:1). Bent axis beam center clamping double station linear guide blance system
2). Inverter control and gard gear surface and 3 phases asynchrinous motor in extrusion system
3). Central-in head in die system
4). Import hydraulic valve, seal parts and electro-hydraulic propotional control and rariable pump in hydraulic system
2. Main characteristics of Accumulator Extrusion Moulding Machine for Drums Jerry Cans Toys:1). Continous extrusion head, single layer, the capacity is up to 0.5L-15L jerrycan, bottles, drum ans etc products.
2). It process the material as hdpe, pp, abs and etc.
3). Power supply: 380vac, 50hz (depending on client's county ).
4). It is double station, which can equip with 1, 2, 3, 4, 5, 6 cavity, the specific will be according to customer's capacity request. This type of machine is high speed machine. It is suitable for higher capacity requirment customer. The capacity for 1l bottle, 6 cavity is about 2200pcs/h which has higher efficiency than the normal type bottle extrusion blow molding machine.
5). The machine is mainly composed of extrusion system, die head system, clamping system, hydraulic system and electrical systems.

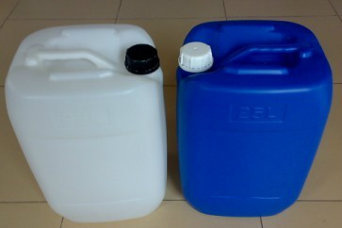

The products for this Accumulator Extrusion Moulding Machine for Drums Jerry Cans Toys:General Specification for this Plastic Automatic Jerrycan Extrusion Blow Molding Machine: Extrusion system: Screw: Specially designed based on material's trait, high quality nitriding steel 38crmoala, with nitriding surface hv≥ 800, brittleness≤ 2.
Die head system: Vontinous extrusion die head, single cylinder, central injection, vertical fist in first out design, accumulator channel slick; Slip parts like injection piston and cylinder made with different material and technique, work balanced and reliable.
Clamping system: Fixed clamping system, double diagonal tie bar single cylinder central clamping, wider space for the mould, install and dismantle the mould easily, linear roll guide rail.
Hydraulic system: Adopted proportional pressure controlling, with hydraulic valve and pump of taiwan yuken, balanced and accurate action, prolonged useful life, sensitive response.
Electrical system: Adopt plc to control the action program of the whole machine; Adopt touch screen for communication, parameter setting, modification and picture display
3. Advantages of this Plastic Automatic Jerrycan Extrusion Blow Molding Machine:1). Adopt energy-saving system which can increase the 50% efficiency.
2). The capacity is 50% higher than some others.
3). Power consumption is about 15% lower.
4). All process are well computerized which makes the operation more conenient.
5). Imported hydraulic components which gurantee the stable working for long time.
6). This machine adopt the directional proportional valves which can gurantee the stable working process.
The detailed parameters for this Accumulator Extrusion Moulding Machine for Drums Jerry Cans Toys:extruder |
|
1 | Screw diameter | 90mm |
|
2 | L/D ratio | 28:1 |
|
3 | Screw speed | 15-80r.p.m. |
|
4 | Drive motor | 75Kw |
|
|
|
|
6 | Heating zone with cooling fan | 5 zones |
|
|
7 | Output/Throughout | 200-250Kg/hr(HDPE particle) |
|
|
8 | Heating capacity | 9.1*5 kw |
|
9 | Vertical adjustment of head | 500mm |
|
10 | Forward/Backward adjustment of head | 600mm |
|
11 | Groove feed barrel cylinder | Have IKV |
|
|
12 | Gear box | Hard gear decelerator |
|
|
13 | Ladder and safety rails | fixed |
|
|
|
DIE HEAD |
|
|
|
2 | Design | First in and first out |
|
|
3 | Heating zone | 3zones |
|
|
4 | Heating capacity | 2.6kw/die head |
|
5 | Max die&pin diameter | 500mm |
|
6 | Die head axis with pre-blow | 220mm |
|
7 | Accumulator push-out stroke measurement | Transducer Italy Gefran |
|
|
8 | Injection pressure | 12Mpa |
|
9 | Extruder stop | Have |
|
|
|
CLAMPING UNIT |
|
1 | Tie bar | Two tie bar |
|
|
2 | Platen size | 730(W)X540(H) |
|
3 |
|
4 | Clamping force | 220KN |
|
5 | Close/Open stroke | 320-700mm |
|
6 | size of mold | 730×540mm |
|
7 | Clamping stroke measurement | Proximal sensor from TAIWAN |
|
|
8 | Hydraulic valve | Taiwan Haitack |
|
|
9 | Number of hydraulic cylinder | 1 |
|
10 | High pressure | 14mpa |
|
11 | Support parts for platen movement | Liner Guide |
|
|
|
HYDRAULIC SYSTEM |
|
1 | Drive motor | 37Kw |
|
|
2 | Hydraulic valve | Taiwan |
|
|
3 | Hydraulic pump | Taiwan |
| |
4 | Connector\Tuber | Japan |
|
|
5 | Seal | Japan |
|
|
6 | Oil tank capacity | 850L |
