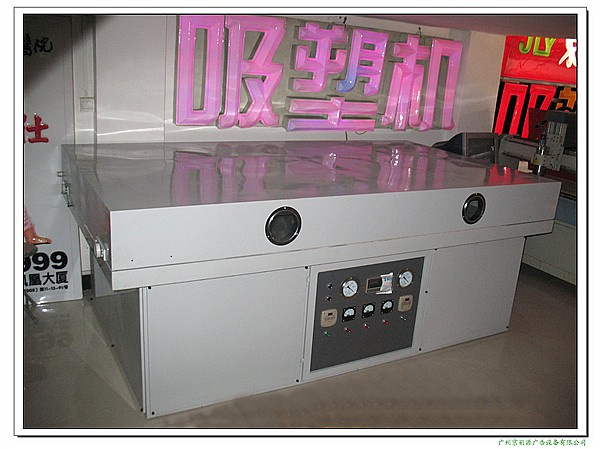

Acrylic Formiong Machine is produced by oueselves and it is the best selling product all over our country and outdoor. The feature of it is descripted below:
1. High degree of automation. Putting the acrylic into the facility directly and just press the switch, the machine will according to the thinness of the material, control the temperature automatically to heating and soften. Sucking acrylic board and cooling into shape automatically. The whole procedure only need 7 minutes, which is several times quickly then the similar products.
2. Easy to learn and operate. As our company has rich experience in making the acrylic words, pictures and light box, we are able to make the different acrylic effect(such as Flat drum, Round drum and Arris drum) according to customer's demand, which is good for the machine to offer its best effect
3. The first company in China adopts to the sliding closure system, which completely solved many disvantage, such as hoist arms cannot operating synchronously, the floating board is available, Which is safe, stable and without error.
4, The facility completely use the combination design. The soften box and absorb pressure molding machine are a integration and is easy to take apart and install, which is very convenient for the facility enter into factory and second installation. Whatever specification, the facility are available in a 20 square meters, and save a large space.
5, The acrylic material can be reused, Without defect and do not affect the smoothness.
6, Less input to the facility, as cover the small area and only need one person to operate.
Last year we produced two other versions of this machine: The update one and the multifunctional one.
As to the update version, we would descript as follow:
1 To work more easily, as adding a tool to clamp the board and mould and no need use gummed tape to cover any longer.
2 To shift the platform, which is conenvient for sucking the words in high size.
3 To control the time and temperature automatically and easy to operate.
For the multifunctional version, it would be like this:
1. As the funtion of pushing, sucking and clamping the acrylic board automatically. Words in super high size and workpiece are available.
2. To suck in the heating box. Sucking the heating the whole acrylic board is available, which is to guarantee the forming quality to be better.
3. To shift automatically. Opening the door of heating box, shift from front and back. All the procedures are control automatically, and easy to operate.
Model Number |
Specifition |
Max. Working Area |
Weight |
Max. Heating Power |
Processing Temperature |
Voltage |
140 |
1500*1500mm |
1400*1400mm |
380KG |
6KW |
0-300 |
220V |
260 |
1500*2700mm |
1400*2600mm |
800KG |
12KW |
0-300 |
380V |
360 |
2400*3700mm |
2300*3600mm |
1800KG |
36KW |
0-300 |
380V |
Guangzhou LUOERTAI CNC Photoelectric Technology Co., Ltd. is a professional manufacturer which specializes in producing and selling Advertising Equipment such as Single Mold Acrylic Forming Machine, Engraving Machine, Plasma Cutting Machine, Acrylic Trimming Machine and so on. With more than 10 years experience in acrylic making and the rising market demand, by bringing in advanced foreign technology and equipment and combining with our oun practice, we have successfully developed the new generation of JINGLIYUAN brand acrylic forming machine. Due to its quick and simple operation, the machine consequently attracts a number of domestic and overseas purchasers. Since it was marketed several years, it has been accepted by the AD Industry no matter in China or aboard.
