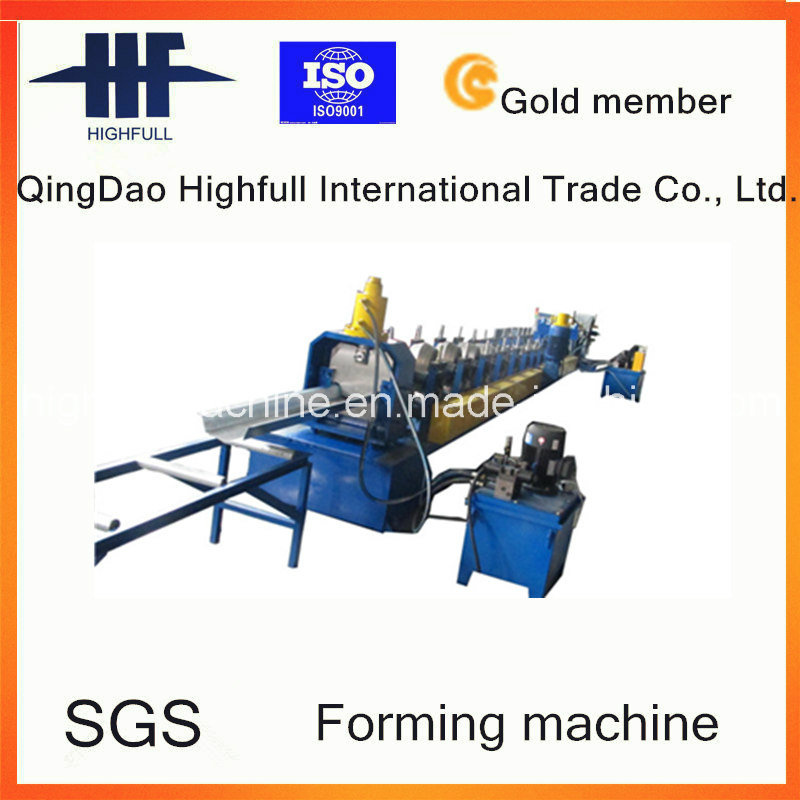

Adjustable Gutter Roll Forming Machine by Gear Box
the feasures of our products
1.nice appearance
2.high efficiency.
3.easy control.
4.good quality.
1.processing
decoiler--leveling--feeding--punching--roll forming--cutting--out table
2.the main equipment.
decoiler,hydraulic punching machine,hydraulic system,cutting system,electric system,product stand
| S. N | equipment name | Quantity | Weight |
| 1 | hydraulic decoiler | 1 set | 5T |
| 2 | leveling machine | 1 set | 2T |
| 3 | servo feeding device | 1 set | 1T |
| 4 | punching machine | 1 set | 31T |
| 5 | main roll forming machine | 1 set | 28T |
| 6 | hydraulic cutting machine | 1 set | 1.5T |
| 7 | control system | 1 set | 0.1T |
| 8 | out tables | 2 units | 1T |
| 9 | spare part | 1 package | 0.1T |
3.the technical parameters
1).decoiler
1.1the inner diameter of coiling::508mm
1.2the range of expanding:480mm-520mm
1.3max width of coiling:1300mm
max weight of coiling:5000kg
2).profile thickness:0.8-1.5mm
3).main forming machine
3.1the material of shaft:45# steel,bearing steel outer diameter 85mm
3.2main motor power:11kw
3.3forming speed:6-12m/min
3.4voltage:380v,50hz,3phase
3.5roller stations:16-25steps
4)cutting system
4.1hydraulic cutting
4.2blade and mould material:CR12 steel with quenched treated 60-62°
1. Delivery: According to customers' requirement
2. Package: Export standard package for container
3. Payment: TT (30% by TT in advance, 70% by TT after you inspect machine we need)
4. Delivery date: Within 30 working days after receiving deposit
5. Products Warranty: 12 month, and we will provide the technical support for whole life of the
4.3cutting system advanced hydraulic drive,after automatic cutting after forming.
5)control system
5.1PLC
5.2coder
6)hydraulic system
Power:3kw
Terms:
1. Delivery: According to customers' requirement
2. Package: Export standard package for container
3. Payment: TT (30% by TT in advance, 70% by TT after you inspect machine we need)
4. Delivery date: Within 30 working days after receiving deposit
5. Products Warranty: 12 month, and we will provide the technical support for whole life of the equipment.
FAQ
What is main parameters?
1.Gear box and universal joint drive.
2.PLC control.
Is the sample available?
Yes,sample are available for you to test the quality.
Are the products tested before shipping?
All the products have to pass strict inspection before they go out.
Why choose us?
1.We are a factory manufacturing ,best production capability,best quality control,best service.
2.competitive price.
3.Best after-sale service.
4.Different types of roll forming machine,customers' own design is OK.
5.Super High quality.
6.Big production ability.
What is benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
You can get good reputation from your market and obtain more orders.
Qingdao Highfull International Trade Co., Ltd. is located in Weifang, Shandong Province, the World Kite Capital, famous for its predominant geographical location and convenient transportation. JiaoJi railways and JiQing expressways traverse east and west, Relying on the good foundation of culture and machinery, as well as our high product quality, perfect after services, we have won the market and made rapid progress.
Our company is a professional designer and manufacturer of metal sheet cold roll forming machine. We has years of experience to design and manufacture the automatic metal sheet cold roll forming machine. With our strong technical force, in the factory, there are more than 60 sets machines, such as milling machine, planing machine, grinding machine, drilling machine, double housing planer, heat-treated furnace and so on. We have more than 30 high-ranking technicians and engineers. The main products includes, roller press, roll bending forming machine, levelling device, slitting machine, color steel tile forming machine, C/Z profile steel forming machine, U channel profile roll forming machine, steel structure equipment, colored sheet door equipment, color steel section equipment, steel sheet corrugation forming machine, steel tile roll forming machine, security door equipment, security door frame equipment, square and round steel tube equipment, door frame section forming machine, auto car plate equipment, motorized tricycles carriage plate equipment, electrocar carriage plate equipment, container equipment, car sections forming machine, stainless steel door equipment, fire door equipment, light steel keel equipment, garage door equipment, solar energy stand equipment, shelf cold roll forming machine, goods shelf section equipment, cable bridge forming machine, cold bending section steel machine, high-speed guardrail equipment, and all kinds of roll mill, roller etc. Cold bending roll forming machine.
We are a high-tech enterprise of producing the steel plate cold roll forming machine, Meanwhile, we are able to produce and design the cold roll forming machine according to our customers' specific requirements.
Our company pursues progress continuous on the way to technological innovation in recent years. We set up research and development center in Shanghai in 2006. We have developed ultrasonic series, eddy currents etc. Nondestructive testing equipment united with Shanghai Jiaotong University and Shanghai Ligong University etc. Research institutions. We cooperate with friends of home and abroad. Our products have been appraised and trusted by customers from abroad and home by their's novel structure and perfect craftsmanship.
Your Satisfaction is our eternal pursuit, we sincerely cooperate with friends of home and abroad to provide them with perfect equipment, first class service and to make mutual progress and development in cooperation.
