Machine name

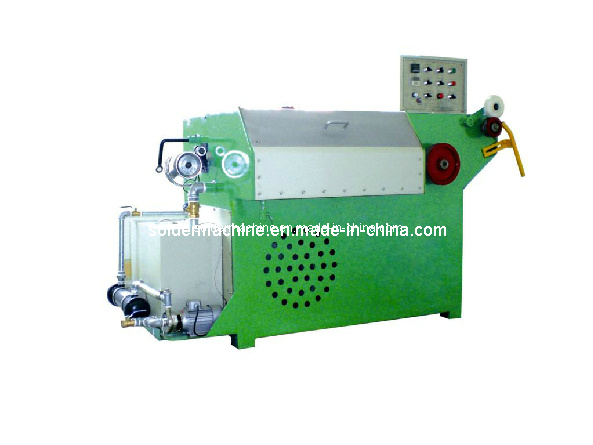

Advanced Germany Technology 3 Rollers solder wire Drawing Machine
Application:
Apply to tin alloy wire processing.
Features:
1) Principal electric motor driving on the wire drawing principal axis and winding axis through a flat belt or a gear chain, through wimble drive to winding system and achieve the drawing & winding finally
2) Tin wire put into the draw-extend room through wire setting rack, go through tower wheel, then draw by the wire drawing model, cooling mode is spray or water logging
3) The wire will traverse pulling wheel, wire passing idler pulley, wire setting wheel and then enter into wire receiving tray and finished the process at last
4) Adopts top quality timing electric motor, principal axis processed by digital boring lathe in order to keep the homocentricity of the axis & the machine
5) Model seat adopt Germany's enchase technique to protect the model from being damaged
6) Wire stretching axes is the middle carbon steel S45C treated by high frequency
7) Tower wheel was forging the ball carbon S45C steel and heat-treated by several refine ways, which can provide long term use without distortion
8) Tower wheel sprayed by rigid chrome to assure wire quality
Why choose us ?
Spare part for this machine
item |
VT-43Z |
inlet wire diameter |
¢5mm |
outlet wire diameter |
¢0.8mm |
main power |
15kw |
voltage |
380v |
cooling method |
steeped/spray |
speed control |
inverter control |
wire speed |
250m/min |
die no |
43pcs |
machine elongation rate |
digression |
2400*860*1380mm |
2400*860*1380mm |
machine weight |
0.85T |
VICTORY TECHNOLOGY INTERNATIONAL., Ltd. is a HongKong-funded joint venture with about 20 years history and a 33, 000-square-meter standard modernized factory building, which is specialized in equipment developing and manufacturing.
Our cored business scopes are:
Solder wire processing line/Zinc wire processing line/SMT solder powder atomizing line/Paste emulsifying and homogenizing equipment/Vibratory screening machines.
On the principle of "Innovative technology and keeping pace with the world", we are blooming into the largest manufacturer in this field in domestic China. we have been introducing advanced technology from the Europe, Japan and Taiwan, so as to improve our products' performance. Kindly feel free to contact us for more details.
