All Steel Giant Segmented Tyre Mould
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

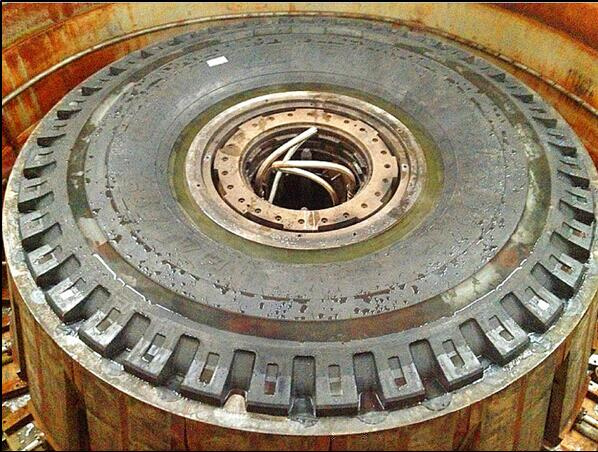

All-Steel Giant Segmented Tyre Mould
We have manufactured many segmented tyre mould for tyre making.
We have PATENT for all-steel giant segmented tyre mould in China.
This tyre mould is all-steel giant segmented tyre mould. We have got the patent for this all-steel giant segmented tyre mould. |
The tyre mould adopts the segmented mould structure of circular conical surface. The opening stroke is X≥150mm, Y≥525mm. The orientation angle of the mould is 15°. |
The upper side wall plate adopts docking pattern structure. There are dowel pins on circumference to prevent dislocation. |
The lower side wall plate adopts wholly removing tyre, not docking pattern structure. |
The characters of the tyre mould cavity are carved by CNC. They are neat, orderly and beautiful. |
The vent hole is installed with stainless steel sheath. |
The tyre mould adopts ZG270-500 material. The tyre mould surface of bead ring is treated by nitriding. The hardness of the copper alloy (sliding friction plate) is ≥HB70. |
The outside surface of the tyre mould is painted high temperature resistance aluminium paint. |
The surface of the segmented tyre mould cavity is treated by sand blasting. |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Tyre Machine |
| Tyre Machine Type: |
Segment Tyre Mould |
| Company Type: |
Manufacturer |
| Segmented Tyre Mould Type: |
All Steel Giant Segmented Tyre Mould |
| Segmented Tyre Mould Application: |
All Steel Giant OTR |
| Cavity Characters: |
CNC Engraving |
| Application: |
Engineering Machine |
| Product Type: |
Tyre Mould |
Qingdao FANGYUANDA Rubber Machine Co., Ltd. is located in Shandong Province which is the largest and most concentrative tire manufacturing base of China. We' re founded in 1990, focusing on the development and trade of tyre vulcanizing machine and tyre mold., and devote ourselves to rubber and tire industry. Thre are over 40 engineers and technicians and over 150 workers in our company.
Product
1. All kinds of tyre vulcanizing machine, including Hydraumatic Vulcanizer, Machinery Vulcanizer, All Steel Giant Tyre Hydraumatic Seting Vulcanizer; Heavy Truck or Light Truck Tyre Machinery Translation Vulcanizer, Hydraumatic Vulcanizer with Sidewall Plate, ect.
2. All kinds of Tyre Moulds, including Two Piece Mould ( Semi-Steel or All-Steel ), Segment Mould ( Semi-Steel or All-Steel Giant ), All Steel Giant Tyre Segment Mould, Bias-ply Tire Mould, Light Truck Tire Mould, Farm Tire Mould, etc.
3. All sizes of building drum, or shaping drum for rubber machine.
4. We also provide supporting services.
Service
After more than 20 years of continuous efforts and development, with our strengths in China' s rubber machinery industry, our business of complete sets machines have covered rubber machinery and tire mold industry. According to your drawings, we can manufacture quality products and we have the capability of establish the whole plant, technology transfer, technical advisory services and transformation. In addition, our export production also including Tyre Vulcanizing Machine and Mould.
Advantage
We achieved advanced level in the field of all steel giant tyre vulcanizing machine and mould. We cooperated with Qingdao Science and Technology University and Nanjing Industry University in development of new products and technical innovation. We get patent of all-steel giant tyre vulcanizer and segment mould in our country.
We have extensive cooperation with China' s leading tire and rubber manufacturing plant, tire & rubber machinery manufacturing plant and specialized research institutes who are as our strong technology backing and support. Our another advantage is helping our clients to select the suitable machines to meet the requirement based on their different technologies and processes. Through the thoughtful and timely service with superiors product performance, we have been successful serviced in many global famous tire enterprises from Europe, the United States, Latin America, Asia and Africa, and establish a long term trade and cooperation relations with them. Therefore, our tyre vulcanizing machine and mould manufacturing technology has always been keeping concurrent development with the world' s leading technology, and become their first-class supplier and partner in China.
Quality Control
In order to ensure and improve the quality of our export products, we take various effective methods to track and supervise each procedure from raw materials procurement, manufacturing, commissioning and inspection during each steps. We passed GB/t19001-2008/ISO 9001: 2008 quality management system certification. We gain wide reputation due to our strong technical power, production experience, essential testing method and stable product quality. Our products of all steel giant tyre vulcanizing machine (177-212 inch vulcanizer) and all steel giant tyre mould (23R49-53/80R63) have a high market share and used by many tyre factories all over the world and are highly praised by the users.
Our company regards" Resonable Price, Efficient Production time and Good After-sales Service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contract us.
