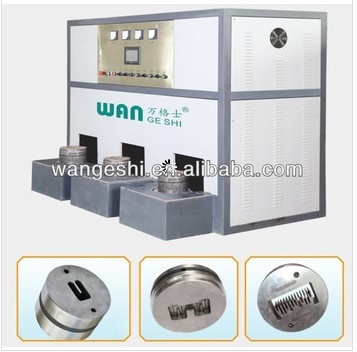

Aluminium extrusion die/mould heating furnace is in HOT LINE
This die heating furnace is new type, energy saving, induced heating furnace for die, which using intelligence controller, PLC, touch-screen, making control temperature accurately, easy to operate, temperature go up fast. Compare with the traditional die heater, This new type die heating furnace has unique advantage.
Introduction:
1, PLC control, touch-screen and button operate. Easy to set the parameter, easy to understand and maintain, perfect temperature-over protecting setting.
2, Heating time just need 15~25 minutes( according to the φ 230mm die, over φ 350, the heating time will be a little longer. ); You can set the heating type, easy to operate. Before delivery, we have set the heating type.
3, control temperature accurately, temperature difference is within 15 centi degree. After the temperature of die reach the setting temperature, furnace will keep the temperature in the same level automatically, lower consumption.
4, Adopting advanced and intelligent, isolated, energy induced heating, make die heating furnace is more safe, and has longer useful life.
5, Change die fast, reduce working time, increase output, save consumption.
6, Unique design: Working temperature record device, this die heating furnace can record more than 10 days working temperature value, which can monitor the wrong working of worker, avoiding the die damage because of unexpected temperature.
7, High temperature resist cotton can resist 1300 centi degree, keep heat, save consumption.
8, Temperature test adopt two point temperature test, make temperature more accurate.
9, All the working state will be showing on touch-screen, easy to operate and maintain.
Parameters:
Total power: 36KW
Single chamber power: 12KW
Input voltage: 380V (customized)
Frequency: 50/60Hz
Heating type: Energy induced heating
Cooling type for controller: Air cooling
Heating method: PID heating
Controlling method: PLC, button, touch-screen
Heating time: 16-25 minutes
Thickness of die: 80MM-240MM
Size for die: 120MM-350MM
Overall dimension for two chamber: 1480mm× 1230mm× 1580mm
Overall dimension for three chamber: 2036mm× 1230mm× 1580mm
Feel free to contact:
Ms melodyli
Tel/fax: 0086 757 85583679
Mobile: 0086 13450531604
Foshan Nanhai Wangeshi Machinery Equipment Co. Ltd, located in famous Aluminum Capital--Dali Town Nanhai District Foshan City, is a integrated enterprise for researching, developing, producing and manufacturing aluminum profile machines.
Up to now, the company own a number of 305 staffs, setting up three factories with total area of 15000 m2.
The first factory mainly produces Thermal Barrier Aluminum Machine, Thermal Break Assembly Machine and PA66 Strip Auto Extruder.
The second factory focus on producing Full Auto Single/Multiple Hot shear Furnace, Single/Double Puller, Hot Saw, Aging Furnace, Sand Blasting Machine and so on.
The third factory mainly produces: Wood Grain Aluminum Machine and Wood Film Welding Machine
Wangeshi aims at building "the Most Energy Saving Aluminum Machine Brand of China". Since its established, based on the local aluminum industry, keeping pace with times and making continuous innovation, relying on advanced technology and equipments, high-professional cohesion technicians and management teams, based on introducing-digesting excellent technology both from domestic &abroad, Wangeshi develops the top level aluminum equipments in the domestic.
As a result of adapting itself to the development of aluminum profile production and the renewal of aluminum equipments, the quality of wangeshi's equipments comes first and occupies the first sales forever,
