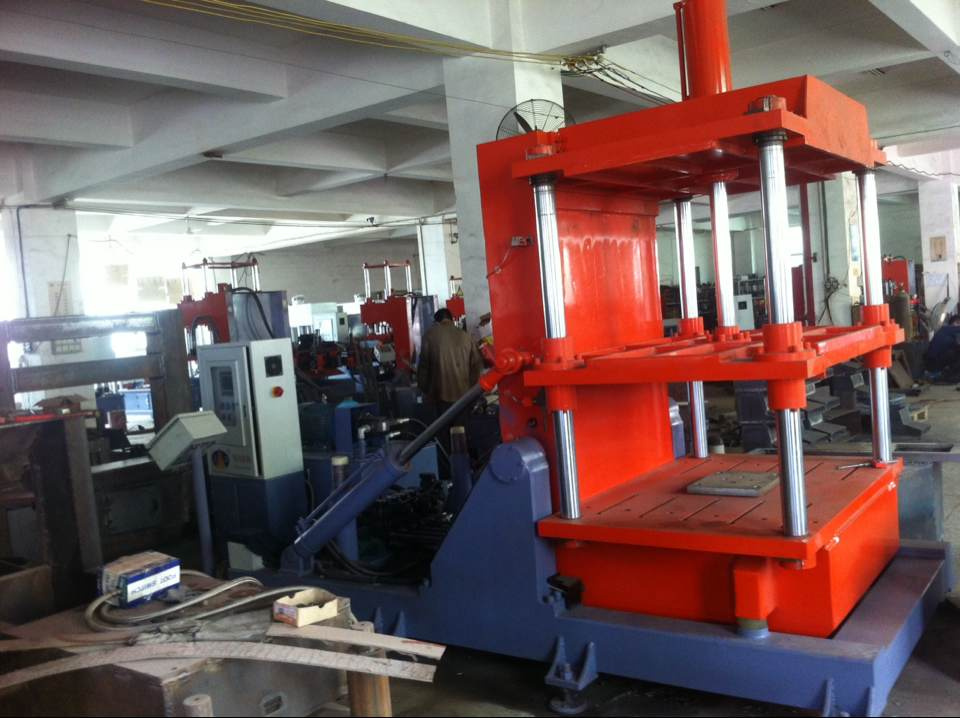

JD1200 Tilt Zinc Alloy Gravity Die Casting Machine
JD-1200 type tilting casting machines with programmable program controller PLC, limit switch control, hydraulic transmission. With a high degree of automation, mold force, smooth and reliable, large adjustment range of process parameters, simple operation, easy handling characteristics of the mold.
JD-1200 type tilting casting machines, mechanical parts is consist of die by the support plate, set the template, the top circuit board, moving platen movable die support plate, guide post, guide sleeve, rotary bracket, buffers, stopper and chassis and other components.
Main specifications and technical parameters:
1. The maximum size mold frame: 1200x650x1650mm
2. Maximum clamping force: 150KN
3. Maximum Opening Force: 150KN
4. The minimum height of closed: 550mm
5. Dynamic Templates stroke: 1150mm
6. Top -core cylinder output: 100KN
7. Table tilting angle: 0 ° -90 °
8. Table tilting speed: 8 ° / S ≤ V ≤ 4 ° / S
9. Rated Power hydraulic station: 11KW
10. Hydraulic system pressure rating: 6.5Mpa
11. Hydraulic system working pressure: 5.5-10Mpa
12. Control manual and automatic
About the after- sale services
In the meantime, we own strong administrant and technical teams to ensure that our innovation and improvement ability can keep up with changeable market requirements. In order to satisfy our customers better, we can also make machines according to our customers' specific needs.
Our after-sale service is prompt and patient. Once you place an order, we are willing to give you support in installment and labor training. During the production period, if you meet any problems that you are not able to deal with, you could contact us. We will try our best to help.
"Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
