State-owned factory
Professional quality suitable for wire drawing
Energy-efficient & low pollution
Good after-sales services
Equipment use
This machine is used to draw aluminum & alloy wires from rod.
Equipment feature
1. In horizontal and tandem construction, modular combination simplifying the equipment on assembly and installation.
2. Driven by double motors to realize fast die-change.
3. A helical gear transmission of high efficiency with low noise.
4. A fully immerging emulsion system to ensure an effective cooling and lubricating for wire and dies.
5. A unique guiding wire mechanism to ensure the drawing quality of wires.
6. Automatic dual take-up to realize a high degree of automation and a high efficiency.
Equipment composition
It is composed of pay off stand, main drawing machine, wire accumulator, dual take-up, wire pointer and stripper, electric control system, etc.
|
|
|

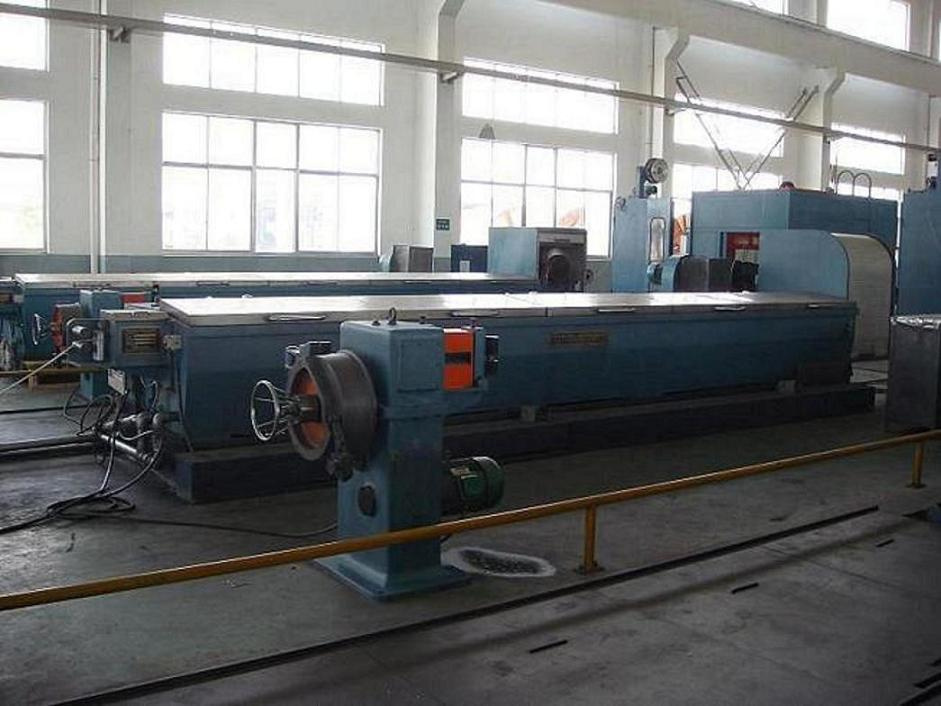

LHD-450/13 Aluminum & Alloy Rod Wire Drawing Machine |
|
Main Machine |
Inlet Wire dia. |
Alloy Φ 9.5mm,
Al Φ 9.5mm(Φ 12mm) |
|
Out Wire dia. |
AlloyΦ 2.1~4.5mm,
AlΦ 1.8~4.8mm |
|
Max. Linear speed |
Alloy 20m/s, Al25m/s |
|
Max. Drawing Pass |
13 |
|
Finish Capstan Dia. |
Φ 450mm |
|
Speed ratio between capstans |
1.238(1.241) |
|
Max. Dies' size |
Φ 54× 38mm |
|
Main motor |
315kW(DC) |
|
Finish capstan motor |
75kW(DC) |
|
Accumulator |
Accumulating wire length |
5.0m |
|
Accumulated wire tension |
400N |
|
Dual take-up |
Max. take-up speed |
25m/s |
|
Max. traversing pitch |
6mm/r |
|
Take-up motorpower |
22× 2kW(DC) |
|
Take-up bobbins |
PND500-630(DIN46397) |
|
Others |
Total weight |
40t |
|
Overall dimension |
23.22× 4.4× 5 m |
Established in 1956, Sichuan Coalfield Geological Bureau 141 Machinery Factory lies in Deyang city, Sichuan Province which is China's major technical equipment manufacturing base. The factory engages in manufacturing and exporting of electrical cable & power equipment. It is a state-owned enterprise integrating design, machining, manufacture with installation and debugging.
Covering an area of 8000 square meters, we now have more than 40 sets of large and medium-sized processing and manufacturing equipments. It has a well-trained design, marketing, managing, machinery processing and equipping team consists of nearly 200 staff.
It can undertake manufacturing all kinds of complete equipments of Copper Rod Continuous Casting and Rolling Line Series, Copper Rod Cold Rolling Line Series, Aluminum & Alloy Rod Continuous Casting and Rolling Line Series, Tubular Stranding Machine Series, Rigid Frame Stranding Machine Series, Copper Rod Breakdown Machine Series, Aluminum & Alloy Rod Breakdown Machine Series, etc. As a result of high quality products and outstanding customer service, we have gained a global sales network reaching Pakistan, India, Syria, etc.
The factory has passed the ISO9001: 2008 Quality Management System and we adopt the ISO, IEC international standard, national standard, industry standard and enterprise standard to research, develop and manufacture product to ensure the satisfying products be produced perennially and steadily. We were certified by China Association for Quality Inspection as an honorary enterprise for Non-Complaints on Product Quality and Service, Satisfying Product for National Customers and Model High-Integrity Enterprise. Furthermore, the factory owns self-support export right.
Our factory holds "being faithful person, doing credible work" and insists on "first cooperation will become friends forever", willing to sincerely cooperate with all business partners to create glorious future and win-win development.
