1. Application

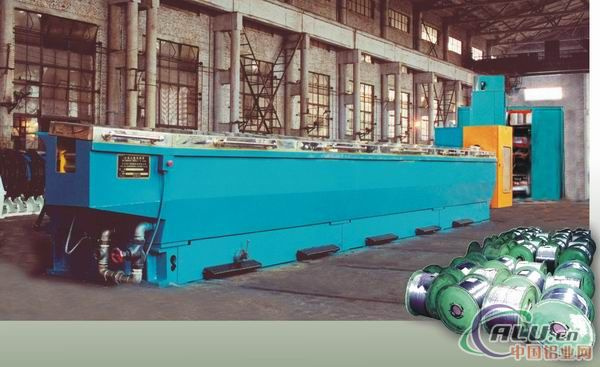

The machine, which is introduced the new technology of the latest M85 high-speed aluminum alloy rod drawing machine from Germany Nihoff company, used to draw aluminum & alloy rod from ø12mm and ø9.5mm to aluminum wire in diameter 2.1- 4.7mm and aluminum alloy wire in diameter 2.2-4.5mm. Drawing blocks, arranged slantways in a line, with continuous drawing. Mechanical electric devices have constantly matched speed and are operated conveniently, and can realize a quick exchange of die ,and shift thread reel and tape-up wire automatically without stop the machine which features easy operation, high production efficiency and good product quality.
2.Main technical parameter of the equipment
1). Inlet wire diameter ø9.5mm (ø12mm for ordinary aluminum )
2).Outlet wire diameter ø2.65-4.5mm for aluminum alloy
Ø2.1-4.5mm for ordinary aluminum
3). Max. output speed 25m/s
4). Drawing block diameter ø450mm
5). Max. number of drafts 13
6). Max. length of wire accumulator 5m
7). Size of take-up bobbin PND500; PND560; PND630
8). Main motor for drawing Z4-315-22 315kW(DC) 1000 r.p.m
9). Motor for deadlock Z4-180-22 75kW(DC) 3000r.p.m
10). Take-up motor power Z4-132-3 2×30kW(DC) 3000r.p.m
11). Total weight of the equipment 40000kg
12).Total dimension of the equipment 23220×4400×4500mm
3. Components of the equipment
It is composed of pay-off device, main machine for drawing wire, wire accumulator, automatic double bobbins take-up device, oil lubrication system for drawing wire, oil lubrication system for gear, wire pointer and electric control system.
The machine is a good ideal equipment which can realize a rapid exchange of die and automatically make double bobbins take-up. Its whole performance is advanced and reliable with high automatic control.
The Deyang Dedong Electrotechnical Machinery Manufacture Co., Ltd is located in Deyang city, Sichuan Province where is a processing center with heavy industries. The company has been engaging in manufacture of specialized wire & cable equipments for 35 years. It is a private joint-stock enterprise which puts design, machining, manufacture, installation and commissioning into integrity.
Getting support from its technicians with high quality and high academic credentials and teams with advanced management ideas and market administration ability, with the persistent standpoint of market-oriented development, the company strives for promptly providing customers with high-tech products and services characterized as "prompt services for new products with super quality and competitive price".
Company's machining capabilities cover an extensive range, with a well-equipped machining workshop, assembly, assembly workshop, welding workshop, heat treatment workshop, tool workshop, gear processing workshops, and fixture workshop attached to the production department, the annual output value reached more than 30 million.
"Dedong Electrotechnical", which is the council member unit of China electrotechnical professional association, passed through the certification of national GB/T19001-2000 quality management system and obtained an honorary title of Sichuan quality credibility enterprise in 2007. The company owns an independent export right.
The main products in our company have aluminum, alloy/copper rod continuous casting and rolling line, aluminum/copper wire drawing machine, wire stranding machine, continuous lead sheathing extruder etc., which have been exported to many countries, gotten high evaluations from customers all over the world.
Sincerely inviting you to hold us together to win the market and create a bright future.
