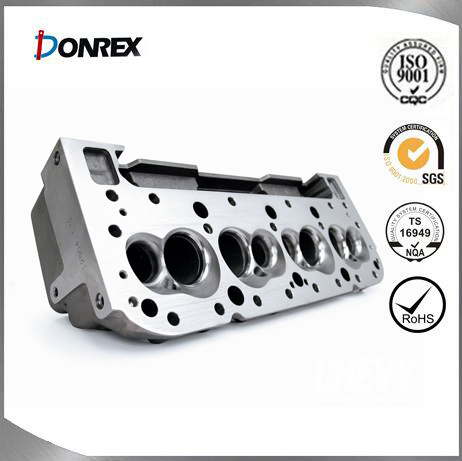

Aluminum Die Casting Cylinder Head

Aluminum Die Casting Cylinder Head
Price: US $ 4-5Kg
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union
1. Our die casting motor cover has following advantages:
    Made of aluminum alloy (A380, ADC12,etc.), good surface finish, accurate dimensions, CNC machined;
    Design and production as per customer's requirement;
    We can make assembly products;
    Short delivery time for both samples and after orders;
    First article layouts and spectrometer material certifications are provided with all first article samples;

2. Die casting process describing:

    Die casting is the process where molten metal is injected into a mold under high pressure in the range of 10 - 210MPa. This will result in a highly uniform casting with very good surface finish and exceptional dimensional accuracy. Usually this can either eliminate or greatly reduce the machining required to finish the part.

    We can offer both the cold chamber process and the hot chamber process.

    In the cold chamber process the metal is ladled into the injection chamber for each shot. There is less exposure of the molten metal to the chamber walls and plunger. This is very useful for aluminum and copper alloys that would easily alloy with iron at elevated temperatures.

    The hot chamber process has the injection chamber which is connected to the die cavity permanently immersed in the molten metal. The hot chamber process is used for metals of low melting point and high fluidity such as tin and zinc.

    The materials include alloys of aluminum, aluminum alloy, zinc and zinc alloy.
    Zinc castings can be made with thinner wall thickness than aluminum due to high melt fluidity.
    We can produce parts from very small to about 30kg for aluminum and 50kg for zinc.

Minimum wall thickness and draft angles for die castings are as follows:
MaterialMinimum ThicknessMinimum draft angle
Aluminum0.9 mm (.035 inch)0.5°
Zinc alloys0.6 mm (.025 inch)0.25°


Prod Model: OEM
Markets: North America,South America,Southeast Asia,Mid East,Western Europe
Certificate: SGS
Material: Aluminum Alloy
Surface Preparation: Sand Blasted
Operating since 1995

Gaomi Hengxin Machinery Technology Co., Ltd. Was established in 2009, but it had an old name and started producing castings since 1995. Now we are one of the leading manufacturing groups offering casting, machining and product assembly services.

Performing with strict quality control

We provide our customers the best engineered solutions, low cost tooling, high quality manufacturing and rapid delivery. We handle all the projects with quality first in mind and under strictly quality control flows through precise inspection and testing equipment and production control system to achieve small, medium and large volume productions. Meanwhile, all the works are based on OEM/ODM, confidentiality and reliability.

Generating over $20 million sales annually

Our buyers hail from more than 30 countries and regions including Europe, North America, South America, the Middle East and Australia. We sell big quantities of high quality products worth more than $20 million annually.

Work with us today

A lot of things may change, but our commitment to professionalism, quality and customer service won't. Contact us today to begin saving time and cost.

Then you'll find our following advantages soon:

1. Twenty years of manufacturing success in China and exporting experience worldwide.

2. Global specialized producer of machined castings and product assemblies.

3. We combine our own resources with some other well-developed factories to fulfill a wide range of contract manufacturing capabilities. Working with one source, saves time and money.

4. Low cost mold materials and focus on efficiency offer a cost-effective solution to your metal component purchasing requirements.

5. Normal lead times range from 1 to 6 weeks for fully-machined components.

6. Strong capacity to help customers develop new projects.

7. Our sales department is 24 hours available in order to help our customers solve problems quickly.
