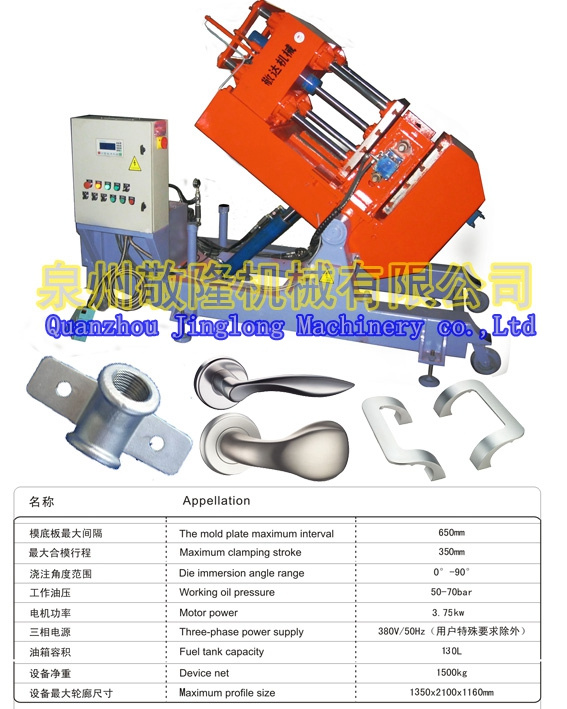

Aluminum Gravity Casting Machine (JD600)

Aluminum Gravity Casting Machine (JD600)
Price: US $ 12666set
Trade Terms: FOB
Min Order: 1set
Pay Type: T/T,Western Union
√ Over 20 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery Time

Jingda Foundry Machinery Manufacturer, The Cheapest and High Quality Gravity Die Casting Machine In China

Over 20 Years Factory, Own the Domestic First-Class Team and Professional Design Team, Integrating production, sales and after-sales, Own Exporting License, High Quility Products, Competitive Price, OEM, Timely Delivery.

Aluminum gravity die casting
Item No.: JD-650-75A Tilt Gravity Die Casting Machine for aluminium.

It's a machine that is used in casting not only aluminum but also zinc and some other metals. But they can't be used in brass or copper casting. If you want to cast brass or copper, please choose our products JD-AB500 or JD-AB400.

Technical parameters:
1. Controlled by a PLC control unit. (Mitsubishi).
2. Running: Hydraulic Transmission&water cooling system(A hydraulic master cylinder system can control three casting machines)...
3. Casting Function: Tilting moving casting, fixed tilting casting, fixed horizontal casting
4. Casting speed & angle are adjustable, size angle: 0-85°
5. The time of colling mold is adjustable
6. The size of die holder of fixed mold: 750mm*350mm*70mm
7. Max. Weight of mould: 250kgs
8. Having safety footboard(the set to protect the operator)
9. Power: 7.5KW.
10. Max engaging distance: 400mm
11. The space between the fixing board of the mold: 620mm
12. The pressure of engaging mold: 4200kg
13. Fuel tank capacity: 450L
14. Working oil pressure: 50-60kg/cm²
15. Solid time are adjustable.
16. The time of casting can be shown.
17. The level of pouring package can be controlled
18. If the die temperature exceeds the limits, the mold can not be engaged
19. The net weight of machine: 3500kg
20. Machine dimensions: 2600mm* 1500mm* 1700mm
                                                  Tilt Gravity Die Casting Machine
DeviceControlled by a PLC control unit. (Mitsubishi)
The size of die holder of fixed mold750mm*350mm*70mm
Max. weight of mould250kgs
Power7.5KW.
Max engaging distance400mm
The space between the fixing board of the mold 620mm
The pressure of engaging mold4200kg
Fuel tank capacity450L
Working oil pressure50-60kg/cm2;
RunningHydraulic Transmission& water cooling system(A hydraulic master cylinder system can control three casting machines)
Casting FunctionTilting moving casting, fixed tilting casting, fixed horizontal casting
The net weight of machine3500kg
Machine dimensions2600mm* 1500mm* 1700mm



Prod Model: JD600
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Device: Controlled by a PLC Control Unit(Mitsubishi)
The Size Of Die Holder Of Fixed Mold: 750mm*350mm*70mm
Max Weight Of Mould: 2510kgs
Power: 75kw
Max Engaging Distance: 400mm
The Space Between Fixing Board Of Mold: 620mm
The Pressure Of Engaging Mold: 4200kg
Fuel Tank Capacity: 450L
Working Oil Pressure: 50-60kg/Cm²
Net Weight Of Machine: 3500kgs
"Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.

Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.

We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
