HP- SLY Anti pressure testing machine for hollow plastic products
Jinan Hengpin Electrical TechnoloGY
Introduction

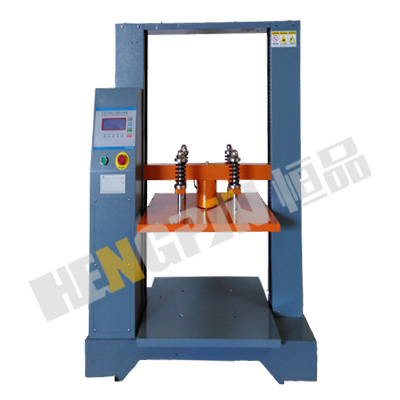

Anti pressure testing machine for hollow plastic product is our company's most developed product toward compression test for hollow plastic products(e.g. plastic bottle, plastic bucket, plastic case, plastic box, plastic turnover box, plastic tank, plastic tray, plastic cup, plastic bowl ). Take special requirement of hollow plastic product into full consideration. Equipped with control operation software in special purpose to fill the gaps in domestic project.
Product feature
1. using microcomputer control technology with high automation.
2. Strong data display and analysis management capabilities, display sample number, sample deformation and real time pressure.
3. Limit travel protection, overload protection, as well as fault tips, such as intelligent configuration to ensure user operation safety.
4. High speed micro printer with high speed, easy to use, low fault.
Technical parameter
| term | parameter |
| Power supply | 200v50hz |
| Measuring range | 5000N(10000N optional) |
| Indicating error | < ±1 % |
| Plate area | 600×600mm |
| Working stroke | 600mm |
| Parallel degree of upper and lower pressure plate | <2mm |
| Deformation rate | <0.1mm |
| Pressure speed | 1-99m/min |
| Return speed | ≥200mm/min |
| indication | Chinese dot matrix menu |
| Print high-speed and mute |
|
| Environment condition | temperature10-30ºC |
| Relative humidity | <85% |
Customer service
1. Hengpin customer service standard
customer-oriented, provide with comprehensive, high-quality service. Satisfaction of customer is the only standard to measure the quality of service.
2. Hengpin customer service guarantee
1. set up specialized agencies--customer service department, Responsible for receiving customer service requests, arrange customer service staff to implement service content according to service procedures and ensure customers receive qualified service.
2.first ask system and person responsible for the system
every company employee receives a call from the customer, regardless of whether it is his or her own duty should respond quickly and make detailed record of the problem, feedback to the customer service department in time, don't let customer call second times, arrange the designated person and tracking timely, ensure that customers solve the problem quickly and effectively.
3. Hengpin customer service item
1.telephone service when the customer need to ask for help when the equipment is in trouble or trouble, firstly can request guidance and support by telephone, customer service department will arrange technical personnel to help customers by telephone to locate the fault, put forward to the solution and guide the customer to solve the problem or overcome equipment failure after confirmation of the customer service request within the stipulated time.
2.field service
if customer cannot solve the technical problems of equipment through telephone service when encountered difficulties or equipment appear abnormal state in the use of equipment. Customer service department assign engineers to analyze the causes of failure within the promised time, make failure-recovery project until solve the problem in the case of consultation with both side need to field trouble shooting. 3.online QQ, email and other network support services
we provide personalized online qq, msn and other network support service in order to meet the needs of more customers , provide communication and online solutions ,record fault processing video, online transfer, so as to improve the service efficiency.
4. Warranty period
the warranty period is one year and we provide free reparation service within warranty period and provide lifelong technical products and services beyond warranty period. If you need to repair, life-long free maintenance, only charge the cost of materials, freight etc. the following conditions do not apply to the corresponding provisions of the warranty period.
1.loss of vulnerable object and consumable object. E.g. printer, lamp, plastic tape etc..
2. the use of the equipment is not our company's accessories or using the wrong attachment.
3.Damage to product or accessories because of some abnormal reason such as power source, gas source, working environment, external force do not meet the requirement.
4.natural factors such as earthquake, fire or contingency theft and loss.
5.change circuit without permission or the production was found to be non-performing maintenance and adjustment.
5. Service response cycle
1.customer service staff will be given a response within a hour and put forward to the solution after receiving a call from the customer. Giving technical guidance timely assist user to solve the problem. We will send attachments in a day if need be.
2.when product return to factory maintenance, customer service staff will inform to user the arrival and inspection of the product within a working day, to repair or notify the customer the situation within 3 days, then it will be send out within 1 working day after the repair.
Jinan hengpin Quality Department of electrical equipment co.
Jinan Hengpin Electromechanical Technology Co., Ltd. Focus on precision test equipment R & D, manufacturing and sales, products widely used in plastics, rubber, bags, footwear, leather, environment, toys, baby products, hardware, electronics, packaging, printing and many other industries and for national defense, scientific research institutions, quality supervision, and other fields, products meet UL, ASTM, JIS, GB, ISO, TAPPI, en, DIN, etc. Domestic and international standards.
Constant product adhere to technological innovation and transcendence, the details of the pursuit of excellence, technology and science and technology perfect combined with on the equipment, makes a number of products Zoran superior, close to international quality continuously.
Hengpin products adhering to the "perseverance, only for the quality" of the quality of the concept, to provide customers with superior, durable equipment, collaborative customers to enhance product quality, reduce costs and enhance market competitiveness.
Hengpin products to carry out the customer first after-sales service purposes, the establishment of a regular product after-sales inspection system, to provide customers with the use of products, maintenance, maintenance knowledge.
Main products:
Carton compression testing machine, paper resistant to breaking, electronic compression testing machine, the thickness measuring instrument and measure whiteness tester, Cobb absorption tester, Cobb sampling knife and interlayer bonding strength tester, straight down beating degree measuring instrument and quantitative sampling knife, MIT folding endurance tester, cardboard stiffness tester, numerical control electric centrifugal, Peel test frame, ring crush in the center of the disc, corrugating medium from corrugated, paper softness tester, fiberboard punctured strength tester, paper moisture meter, single arm package drop test rig, arms drop tester, fiber dissociation standard, tape initial adhesion tester, sealing tester, coefficient of friction tester, Measurement of light transmittance, drying box, printing ink friction testing machine, heat sealing tester, standard light source, gloss meter.
