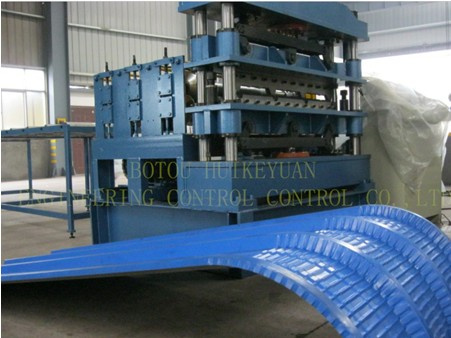

HKY1100 ARC BIAS ROLL FORMING MACHINE
MAIN TECHNOLOGY PARAMETERS
(1)Main motor power: 3kw
(2)Hydraulic station power: 3kw
(3)Sprocket: P-25.4
(4)Forming station: 9
(5)Material of roll: 45#steel hard chrome plate
(6)Length of production line: 10m
(7)Installation dimension about(L*W*H): 5.5*1.5*1.4m
(8)Diameter of principal axis: 70mm
(9)Hydraulic oil pump: CB-E310
(10)Material of blade: Cr12
(11)Thickness: 0.3-1mm
(12)Length of tolerance: ± 2mm
(13)Cover width: 1100mm
(14)Coil width: 1250mm
(15)Wave height: 25mm
(16)Wave length: 183.3mm
(17)Processing speed: 3-6m/min
(18)Total weight: 4.8T
(19)Equipment parts: 5T decoiler, roll forming machine, forming press system, hydraulic cutter, hydraulic system, computer control, counter.
COMPONENT
Equipment parts: 5T decoiler, forming machine, hydraulic cutter, hydraulic station, electric controlling system, counter.
Material of main equipment:
(1)Roll material: High grade NO. 45 forged steel, plate hard chrome on the surface of roller with thickness 0.05mm.
(2)Active shaft material: High grade No. 45 carbon wrought steel at diameter 75mm
(3)Cutter blade: Cr12 mould steel with quenched treatment
Producing flow:
Decoiling the sheet— Sheet guiding— Roll forming— Measure length— Cutting the panel— Panels to the supporter
All technical parameters can be changed, according to user's need.
Products Warranty: 12 months, and we will provide the technical support for the whole life of the equipment.
USAGE AND FEATURE
The feature looks beautiful, elegant and noble. Those are widely used in building the factory, hotel, and mobile house and so on.
This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
TERMS
1. Delivery: In stock
2. Package: Export Standard package for container
3. Payment: TT(30% by TT in advance, 70% by TT after you inspect the machine we send )
4. Validity: Good for 30days
REMARKS
1 The machine can according to your requirement to set the color
2 Within in one year if any parts go broken we will send new ones to replace for free
3 If you want to learn more about the product please login our website or contract to us
SERVICE
One years for free, after the warranty period. We will help you repair the machine, you only responsible for the labour and parts, when the machine have some problem
EXPORT MARKET
Russia, India, English, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions.
ABOUT US
BOTOU HUIKEYUAN ENGINEERING CONTROL CO, . LTD.
Botou Huikeyuan Engineering Control Co., Ltd is the "Important individually-run enterprise"of Botou City. Since many years, we devoted ourselves to develop the metal-plate cold forming machine, now we have unique management pattern and products development ability. Our company leads first in the same field. Our products have light structure and reasonable design, they won praise from same steel structure field because of the innovation constantly.
Machine specification |
| Electric power | 5.5 kw - 7.5kw (3 phare,50hz,380 v) |
| Weight of machine | ≈ 7.0 - 10 tons ( depend roofing style ) |
| Machine dimension (L x W x H) | 10m x 1.8m x 2.0m |
| Station quantity | 17 - 30 |
| Raw material |
| Thickness of steel | 0.45 mm – 0.7 mm (BMT) |
| Width of coil | 762 - 1219 mm |
| Material | PI & PPGI (galvanize, zincalume, color coating steel) |
| Max. strengthen of material | G300-350 |
| Output |
| Profile of roofing | Follow customized drawing |
| Production specification |
| Rolling speed | 20-30 m/min |
| Control system of machine | PLC , fully automatic programmable |
| Rolling transmission & Cutting system | Hydraulic |
| Cutting system | Automatic cutting by Exit cutting and entrance cutting with two encoder in rear and front. Entrance cutting use for cut to length. |
| Tolerance of lengths | ± 2 mm |
| Tolerance revision | Setting by Touch screen |
| Oder length and quantity | Multi-group input (ten orders) |
Botou Huikeyuan Engineering Control Co., Ltd is the "Important individually-run enterprise"of Botou City. Since many years, we devoted ourselves to develop the metal-plate cold forming machine, now we have unique management pattern and products development ability. Our company leads first in the same field. Our products have light structure and reasonable design, they won praise from same steel structure field because of the innovation constantly.
The company is located at side of No. 104 national road in Botou City, which is the famous casting city in China. The company covers an area of over30, 000 square meters. We have near 100 technicians in different skills. We remain the first-rate level on design and production of C-type and Z-type steel equipment, at the same time, we increased the tile press computer control system production line, antique glazed tile machine production line, H-type steel machine production line, big-span, no-beam structure equipment production line and automobile carriage board machine production line. We can design and manufacture the special type machine according to the customer's requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
According to the requirements of market, ou company produced new and high technological products-KDQ type quantified cutting control system in Jan. 2000. This control system has functions of measuring, monitoring and early warning. It has high starting point, accurate measurement, easy operating and complete monitoring. It is the originated one in domestic, a breakthrough of cutting control on microcomputer technique and the miracle of rutting fields.
At recent years, large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions. ur products won acclaim from all customers in domestic and abroad.
