Booming! ! ! EV50B clay brick machine, clay brick make machine
Full automatic clay brick machine / fly ash brick making machine/ brick machinery
Big capacity automatic green brick dryer chamber
Gas / coal fired brick tunnel kiln project
Coal firing brick hybrid hoffman kiln
Full auto brick making machinery and equipment from material processing, brick moulding, green bricks cutting and stacking, drying, firing etc.,:
Clay brick box feeder, hammer crusher, orindary roller crusher, fine speed rolling crusher, double shaft mixing machine, mixer and extrusion machine, vacuum extruder, auto brick cutting machinery, belt conveyor, loading machine, robot stacking machine, dying chamber, dryer cart, hoffman kiln, tunnel kiln, tunnel kiln cart, refactory brick materials...
Clay and Coal Material Prepare and Treatment
By the Bulldozer or Loader to send the raw clay to the box feeder, the box feeder adopted the valve controller, it can control the feeding quantity according to the requirements. Then, the raw clay through the belt conveyor go to double-roll crusher for crushing.
Coal will be crushed by the coal crusher and being piled up. Then by labor vehicle or loading machine send the coal to coal feeder, which adopt valve controller, can control the coal feeding quantity according to requirement. Through the belt conveyor, coal powder will go to normal rolling crusher, together with the clay crushing, coal powder and clay will be mixing completely.
The clay will receive second time mixing by fine pulverizing double roll grinder, in order to get the proper grain size. By water adding again and mix, extrude, cut up, so that to get a better molding quality.
Molding

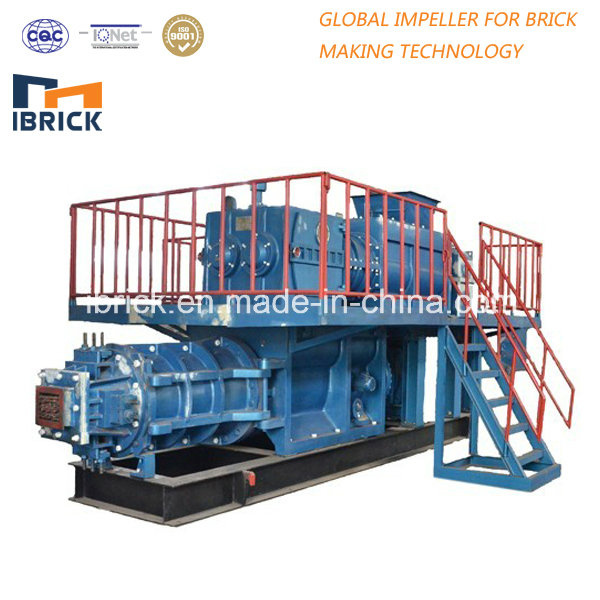

The vacuum extruder will squeeze material to clean-surface and solid-inside columns, which will be cut into the required adobes by cutter.
Extruding machine is the key equipment among the whole production line, its performance are required as follows:
1) They can meet the need of different specification and hole shapes of the brick;
2) The vacuum degree is -0.092Mpa, the extruding pressure is 2.5-3.0Mpa;
3) The hourly output per set is more than 7000pcs bricks.
Moisture content when molding is controlled to 15%-18%.
| Specification Model | Capacity (pcs/hr) | Power Requirement (kw) | Rotate Speed(t/m) | Exterior Dimension (mm) |
| EVS40B | 7000-8000 | Y6-90 | 35 | 4580×1620×1700 |
| EVS45B | 8000-10000 | Y6-110 | 34 | 5280×1700×1850 |
| EVS50 | 9000-12000 | Y6-160 | 31 | 5260×1760×1950 |
| EV40B | 7000-8000 | Y6-37+75 | 40/35 | 5660×1680×2150 |
| EV45B | 8000-10000 | Y6-45+90 | 42/34 | 6210×1560×2350 |
| EV45B | 8000-10000 | Y6-45+110 | 35/30 | 6370×1910×2350 |
| EV50bA | 11000-15000 | Y6-55+132 | 35/30 | 4600*2200*1300 |
| 4600*1300*2400 |
| EV50B | 11000-16000 | Y6-55+132 | 38/25 | 6750*1880*2540 |
| EV50A | 9000-12000 | Y6-55+160 | 38/25 | 4400*2200*1250 |
| 5600*1800*2500 |
| EV60A | 10000-15000 | Y6-90+250 | 27/20 | 7500*2900*2800 |
| 7500*2600*2640 |
| EV75A | 23000-28000 | Y6-315+110 | 27/20 | 8200*7300*3400 |
IBRICK is the technology initiator whom firstly professional supply clay brick sintering two-step stacking-firing process in the world. We always implement rigorous, secure, and integrated industrial chain management and provide professional engineering management, technology solutions, equipment purchasing and etc. For the clay sintering hollow bricks, decorative brick, insulating block, paving bricks, western-style tiles; Split brick projects all around the world. Our service include below items.
The inspection of raw materials---raw material industrial test, providing specific and targeted technology solutions according to scientific data tested;
The complete technology design--- material processing, molding, drying, firing, packaging, unloading and etc.
The complete production line equipments------- supply and installation the most economical and high-quality equipments.
The construction of complete set production line-----contracting to build the EPC projects for building materials.
The accurate and timely local services-------- providing the production management service, the lifelong technology service support, make every projects to create more value for each users.
We are willing to make our progress with you hand in hand and become impeller for world-wide brick-making cultural by our constant innovation and non-stop efforts.
