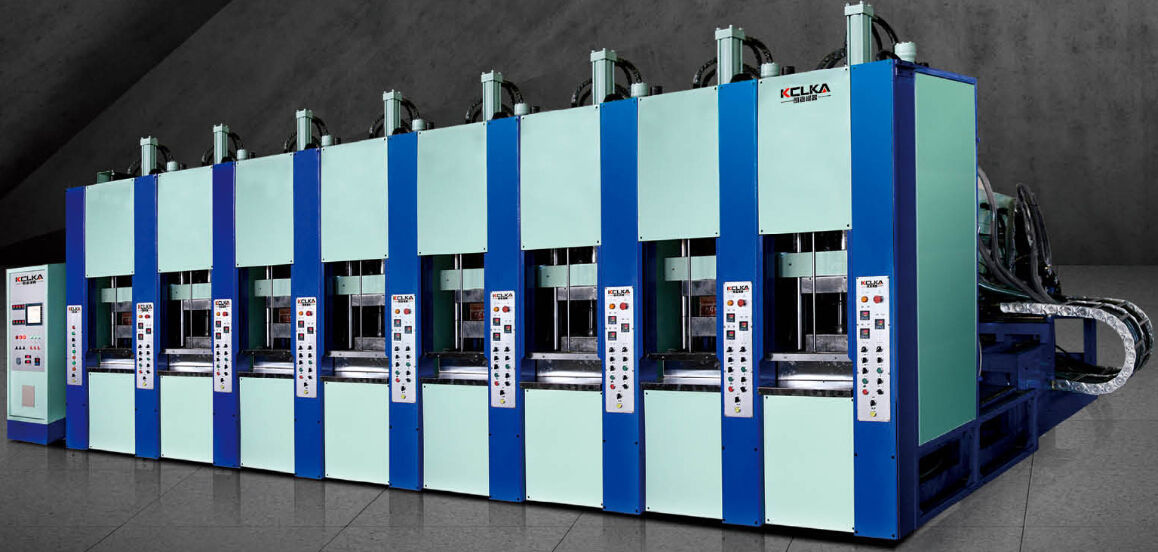

Auto EVA Injection Moulding Machine Slipper Shoe Machine

Auto EVA Injection Moulding Machine Slipper Shoe Machine
Price: US $ 85000SET
Trade Terms: FOB,CFR,CIF
Min Order: 1SET
Pay Type: L/C,T/T,Western Union

1.Its product range includes EVA slippers, sandals, clogs, mid-sole, sport protectors and various kinds of shoes and shoe accessories all depends on the EVA shoe mould and can also make EVA wheel for toys and so on.
2.The clamping force can be increased from 150 to 210 tons, according to your requirement.
3.The foam EVA injection molding machine is fully hydraulic and automatic operation except taking out product.
4.It is PLC controlled, its humanized parameter computer operation interface provide quick and exact terms of production.


Character:
1.Low operation height,Operation height in accord with human engineering
2.Extra height opening stroke
Act by fixed opening stroke: 350mm, which is not affected by any mould thickness changes and
3.available for 2plates mould,Mould thickness adjusting mechanism
Mould adjusting scope: 100-200MM
4.Rapid mould opening ,Act by toggle mechanism which opens the mould rapidly
5.Speedy injector movement
Driven by linear-track, allowing speedy moving and precise positioning,Energy saving design
6.No need water circulation for mould station
7.Space saving design,Put oil tank together with injection base, which makes the structure compact and saves more space.


Detailed information:

Mould Closing System

Work Stations6
Clamping  Force  (kg)170000-230000
Mould-Opening Stroke (mm)350
Standard Thickness of Mould (mm)100-210-230
Mould Plate Size (mm)2(290*550)
Height of Injection Nozzle (mm)60
Method of Heating electric
Heating Power (kw)8.04
Injection System

Injectors (set)2
Diameter of Screw (mm)60/70
L/D Ratio of Screw 23
Max Injection Capacity (cc)920-1100
Injection Pressure1100
Injection Speed (cm/sec)10
Rotating Speed of Screw (r.p.m)0-190
Temperature Control (section)4
Electricity Consumption

Heater Barrel (kw)12.1
Motor for Injector Moving (kw)1.5
Heating Board of Mould (kw)76.8
Hydraulic System (kw)(50hz)40.5
Vacuum Pump (kw)2.2
Cooling Fan of Barrel (HP)1
Total Electricity (kw)50/70/150
Oil Tank Size (L) 1000
Machine Weight (kg) 23800
Machine size (m)6.5*4.5*2.8
Output ( Pairs/day)5000~8000 10000






FAQ

Delivery date:
Within 20 days After receiving the 30% earnest money

Payment term:
Advance payment at order 30%, 70% before shipment

Delivery State:
Machines were taken apart and packed in suitable package that fits container shipping

For the machine experiment and installation, our technician will be sent to your
factory. And you are requested to afford the cost of their trip and payment .
Our technician will manage all the machine things for you and at the same time   train  your  workers on
how  to use  and maintain the machine.

Guarantee Time:
One-year warranty and lifelong service.  During guarantee period, the cost of any spare parts or new accessory should be borne by the seller, and the freight for delivery of spare parts will be on the buyer's account.

Prod Model: EK3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Productivity: 4500-7000/ Hour
Weight: 23800 Kg
Type: Tube Head Injection
Structure: Vertical
Plastic Type: Thermosetting
Plasticizing Way: Screw Type
Clamping Way: Hydraulic
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008
New KCLKA machine Manufacture Limited Corporation, a subordination of Sheng Da Machine Manufacture institution, is a high-tech-exploring and designing company, specializing in making various kinds shoe machines.

Jinjiang KCLKA Machinery Manufacture Co., Ltd is located in Jinjiang City which is called the "Shoes Industry City" in China. Our company specializes on shoe-making machines together with researching, manufacturing and technology support. The innovation is the soul of our company, every member in KCLKA is deeply aware of that. We hold the idea of "Creating value, Breaking through achievement and Leading innovation". Our company has made great contributions to this field of our country. Right now, there are already more than 20, 000 square meters modern workshop in our factory.

Our company has been absorbed in the machine making soles, sandals, slippers, strap, rain boots, etc. For instance, Full automatic EVA injection moulding machine and PVC/TPR rotary injection moulding machine etc. Our machine is suitable for many sorts of material, such as EVA. TR, TPR, TPU, E-TPU, PVC.

Our company provides high quality merchandises, professional services and advantageous price. During the innovation and competition, we have established the sales structure in and out of China and also fulfilled our technique service system. We have many sales service networks in Beijing, Shanghai, Shenyang, Chengdu, Shijiazhuang, Guangzhou, Dongguan and Wenzhou. We have built our correspondent networks in overseas countries, with branches in Thailand, Vietnam, Malaysia, Iran, the Middle East, South America and other countries and other regions.

In recent years, we successfully export products to Indonesia, Nigeria, Vietnam, Mexico, Ethiopia, Guatemala, Russia, Poland, Turkey, Iran, India, Algeria, South Korea, Egypt, etc. All of our products are well-assessed by our clients.

"We walk alongside the world", we will constantly pursuit the perfectness. Hereby, we sincerely welcome all friends from all over the world, to be KCLKA guests and start the cooperation with us.
