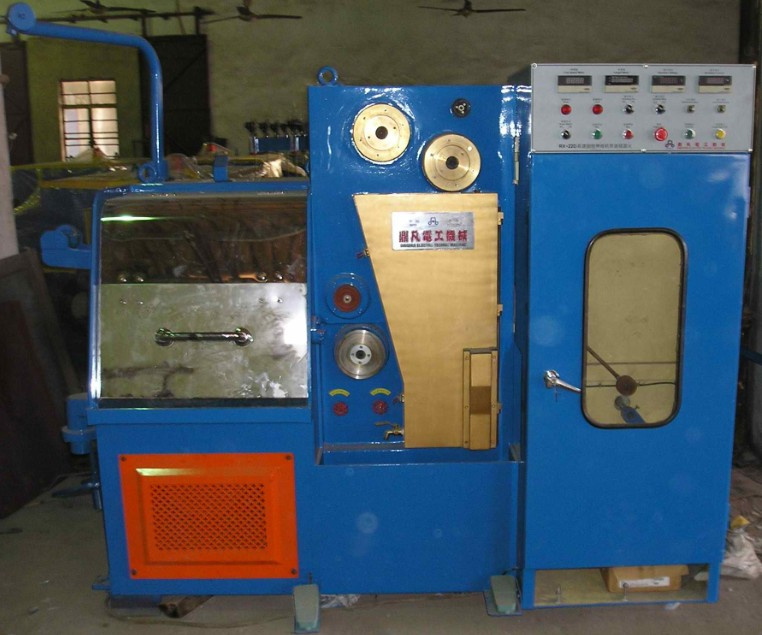

Control System: PLC
Inverter Control: Double Inverter control
Inlet Wire Dia.: 0.6mm-1.2mm
Finished Wire Dia.: 0.1-0.52mm
Max. Wire Speed: 2500M/min
Max. Drawing Die Number: 22
Transmission Type: Precision Gears
Slip Ratio of M/C: 15%
Fix Speed Wheel Slip Ratio: 8%
Capstan: Ceramic, 10 layers
Max. Capstan Diameter: 240mm
Fixed Speed Wheel Diameter: 200mm
Spool Bobbin Size: 300-400mm
Bobbin Lift Type: Manual type, hydranlic pressure
Traverse Type: 110kw, Synchronize Motor and Belt
Main Power: AC. Motro, 55KW
Spool Power: A. C 3.7KW
Total Power: 55KVA
Revise System: PID Synchronous Control Spooler
Detecting Device: By arm type
Tension Control: Air pressure
Max. Loading Capacity: 50-150Kg
Lubrication Type: Full Drown Type
Lubrication Type for Bear: Spray type
Brake: 24Kg Electrical Powder Type
Power Voltage: 380V/50/60Hz
Lubrication Oil Capacity: 40Liter/min
D. C anneal electric current: 500A
Max. Electric Current Voltage: 55V
Anneal Power: 36KVA
Steam Machine Power: 6KW
Steam cappacity: 9kg/hour
Dimension With Annealer: 2500*1600*1800
Weight of Anneal: 3600kg
Shanghai BRIFO Indusrty Co., Ltd., is a specialized in manufacrture cable&wire equipment. We also have our industry base in Shanghai industry area.
We have our customers in Russia and middle Asia. The South Africa, the Korea and other countries. We are manufacture the twisting machine series, the extrude line series and the appurtenance series for cable factory.
