The machine is applicable for vulcanizing all kinds of rubber and plastic model and non-model products.

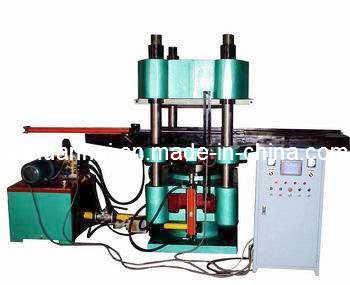

This machine is column structure, including main machine, hydraulic station, electric controlling cabinet. Main machine is composed by base, plunger piston, platform, beam, automatic mould pushing-out device and compulsory mould opening device.
Under the control of PLC, this machine achieves automatic mould closing, vulcanization timing, exhausting time and frequency setting, mould opening, mould pushing, and so on.
|
Type |
XLB-D1000 × 10 00/4.00MN |
|
Total pressure(MN) |
4.00MN |
|
Plate size(mm) |
1000 × 10 00 |
|
Daylight(mm) |
500 |
|
Daylight no. |
1 |
|
Piston dia. (mm) |
500 |
|
Unit pressure(Mpa) |
4.0 |
|
Overall dimension(mm) |
1800 × 1350 × 2100 |
|
Weight(kg) |
15000 |
