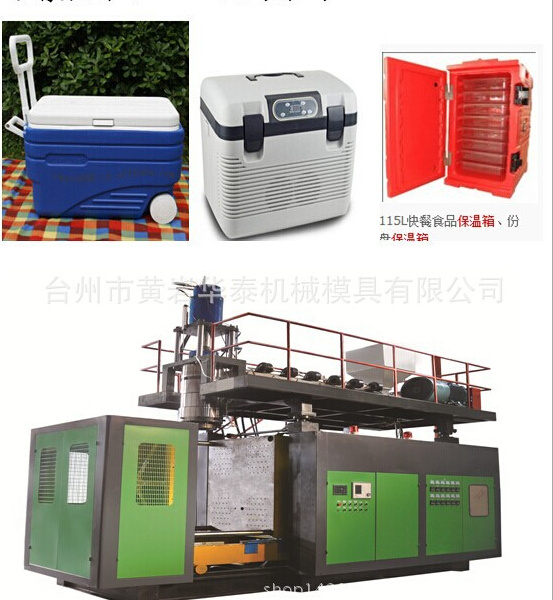

Automati Incubator Blow Molding Machine (HT-100)
Taizhou Huangyan Huatai Machine & Mould Co.,Ltd. which is in the famous native place of orange, kingdom of mould, cradleland of plastic - Huangyan, has more than 20-year history in making plastic machines. It specializes in manufacturing plastic blow moulding machines (blow bottle machines, hollow blow mold machines), honeycomb heating-boxes, ultrared heating-boxes, moulds and other plastic products.
Model |
HT- 100 |
Suitable Materials |
PE \ PP \ PC \ PVC \ PS \ ABS \ EVA \ PETG \ AS ^ |
Output ( Running Free ) |
Depend on bottle design |
370 pcs/h |
Product Volume |
1cavity |
30L ~ 80L |
Die Head Amount |
Piece |
1 |
Work Station Amount |
Piece |
1 |
Extrusion Unit |
Screw Diameter |
100mm |
Screw L/D Ratio |
25:1 L/D |
Screw Speed |
80 r/min |
Plasticizing Capacity |
180kg/h |
Number of Heating Zone on Screw |
4 |
Die Head Unit |
Volume of Storage Jar |
12.5L |
Max Die-pin Diameter |
420mm |
Number of Heating Zone |
4 |
Mould Unit |
1 Cavity |
1 cavity |
Mold Board Space |
450 ~ 1200mm |
Clamping Force |
400 KN |
Power Unit |
Electrical Source |
220 / 380V,3phase 50 / 60Hz |
Total Heating Power |
20 Kw |
Main Power |
22 Kw |
Screw Motor Power |
37 Kw |
Waterhead |
Cooling Tower |
Air Supply Pressure |
0.6 ~ 0.8 MPa |
Auxiliary Equipments |
Low Pressure Air Compressor 1 Set (requisite) |
1.0 m 3 / 1.0MPa |
|
|
Taizhou Huangyan Huatai Machine & Mould Co.,Ltd. which is in the famous native place of orange, kingdom of mould, cradleland of plastic - Huangyan, has more than 20-year history in making plastic machines. It specializes in manufacturing plastic blow moulding machines (blow bottle machines, hollow blow mold machines), honeycomb heating-boxes, ultrared heating-boxes, moulds and other plastic products. It has abundance experiences and strong technology.
HuaTai is dedicated in researching and developing blow moulding machines endlessly,and has all kinds and comprehensive series of blow moulding machines. Owing to the struggle and effort of its technicians, there will appear several new types of advanced blow moulding machines to meet the demands of international market every year.
And now HuaTai has 2 main products (12-series and more than 80-model blow moulding machines). Semi-automatic and full-automatic, one-step method and two-step method, pneumatic and hydraulic are all available. These machines can produce from 10ML to 200L products, such as the large storage barrels, tanks, foldable containers, car hollow parts, office equipment accessories, sports equipment accessories, children's toys, amusement facility accessories, medical packaging containers, 5 gallon PC barrel, hollow bags, all kinds of plastic bottles and plastic barrels. What's more, most of the machines have obtained patents.
HuaTai's have been exported to many countries and areas, such as North America, West Europe, South Africa, Middle East, Southeast Asia, Russia and so on. With the guiding principle of cooperative, confiding, equal and mutual benefit spirit, HuaTai sincerely welcomes new and old customers visiting the factory.
