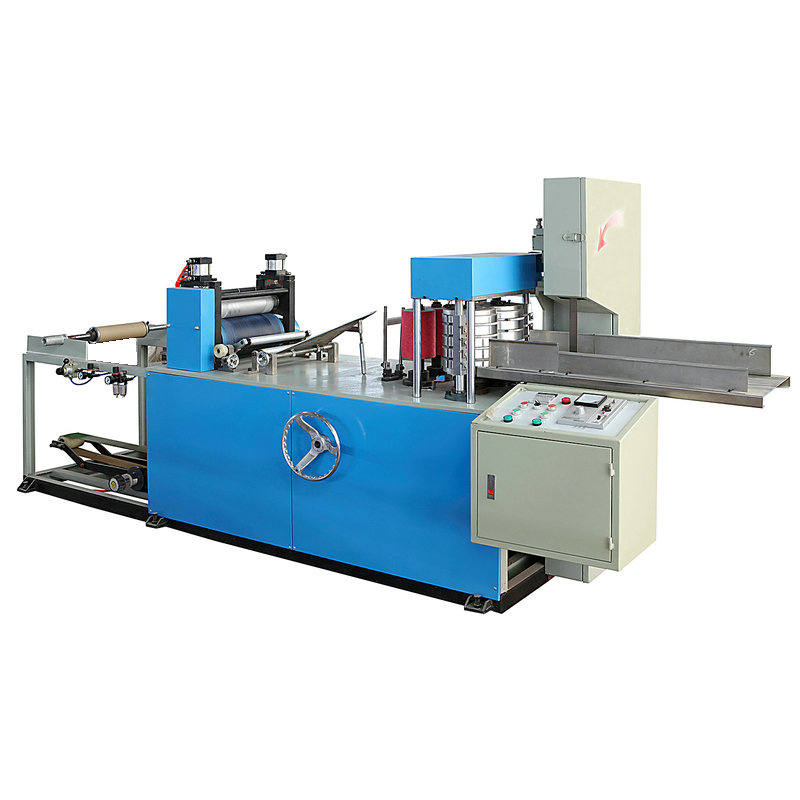

Automatic 1/8 Folding Tissue Napkin Machine (Single Size)
Automatic Paper Napkin Machine is used to fold the jumbo roll into the Square or Rectangular paper napkin. The machine system includes printing, embossing, counting and folding. The speed of the automatic paper napkin folder is controlled by the frequency drive. The counting could be varied according to the requirement.
One machine can be both 1/4 and 1/8 Folding processing by changing mould
Production flow is: Printing---Embossing---Folding---Counting---Cutting
Video link: Https://www.Youtube.COM/watch?V=N8qnQiweER0
Specifications
|
Working Width |
400mm/ 330mm / 300mm / 270mm / 220mm/ 200mm |
|
Printing Unit |
1-3 colors as per requirement |
|
Embossing Unit |
Full or border pattern as per requirement |
|
Parent Roll Diameter |
1200mm |
|
Parent Roll Core Inner Diameter |
76.2mm |
|
Interfolding style |
1/4 fold |
|
Speed |
300 to 600 sheets per min (speed varies according to quality of paper) |
|
Installed Power |
3.7Kw-4.5(380V or 220V 50Hz) |
|
Air Pressure Required |
Provide by buyer |
|
Transmission |
Timing belts |
|
Controlling System |
Frequency Drive |
|
Machine Weight |
1000kg |
|
Space Required |
3.4-4.2x0.9x1.5m |
Fujian Xinyun Machinery Development Co., Ltd., established in 1998. We have passed ISO9000 Certification for good quality.
We are a factory dealing specially with the export of daily using paper series equipments.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
All of our products are certified to meet international quality standards and We are producing both standard machines and can provide customize service upon customer's request.
Our machines are export to all over the world, and have got the customers' high appraise.
High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
We're expecting to work with enterprises from all over the world and we're willing to research cooperative opportunities and trying to build a long-term and stable business relationship.
Any questions from you are welcome and will be replied in 24 hours.
