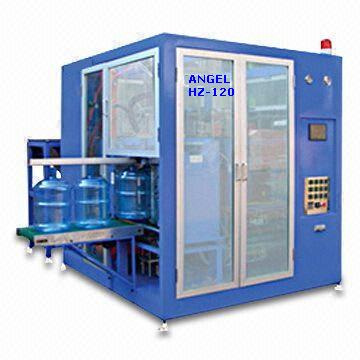

ANGELHZ-120 fully automatic stretch blow moulding machine produce bottle form 5 L to 25 L. Neck finish from 15 mm to 200 mm. It is suitable to produce thermo containers of PET, PC material. Feeding system carries the performs automatically. Precise design of heater ensures even heating for the performs. It is especially used to produce 5-gallon large volume containers.
Specification:
Container volume: 5-6L (2 cav) 10-1L (1 cav)
Theoretical output: 5 gallon: 120PCS/hr; 5L 700PCS/hr
Max. Length of bottle: 450mm
Bottle diameter: 350mm
Mould plate dimension: 520 x 600mm
Mould thickness: 400mm
Clamping force: 300kN
High press compressor: 1.2/30Mpa
Low press compressor: 1.6/10Mpa
Power: 20kW
Voltage/frequency: 220-380V / 50-60Hz
Machine dimension: 2.60 x 1.90 x 1.95m
Main body weight: 2.8T
Established in 1996, Shenzhen Angel Drinking Water Equipment Co., Ltd. is a specialized manufacturer of water bottling machines, RO(Reverse Osmosis) system water purification machines and water dispensers. With the support of advanced technique, highly experienced engineers and customer-oriented after sales service, we can provide water bottling machines ranging from 30BPH to 1200BPH for 3/5G plastic bottles, water bottling machines for small bottles and automatic full production lines. Meanwhile, we are able to supply RO system water purification machines from 300L/H to 30T/H.
As one of the leading manufacturers regarding water treatment (covering water dispensers) in China, we are pursuing more economic scales and building a great commercial reputation in the global market. Consequently, our products are selling well in the Canadian, French, Jordanian and Indonesian markets. Being featured PLC, easy operation, convenient maintenance, automatic process (washing/filling/capper) and more hygienic, we are advancing into the international market drastically. Moreover, our water dispensers are UL and CE certified, which helps us build long term business relationships with customers from Mexico, Ecuador, Australia, Singapore, Thailand, Brunei, Indonesia and India.
Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more information.
