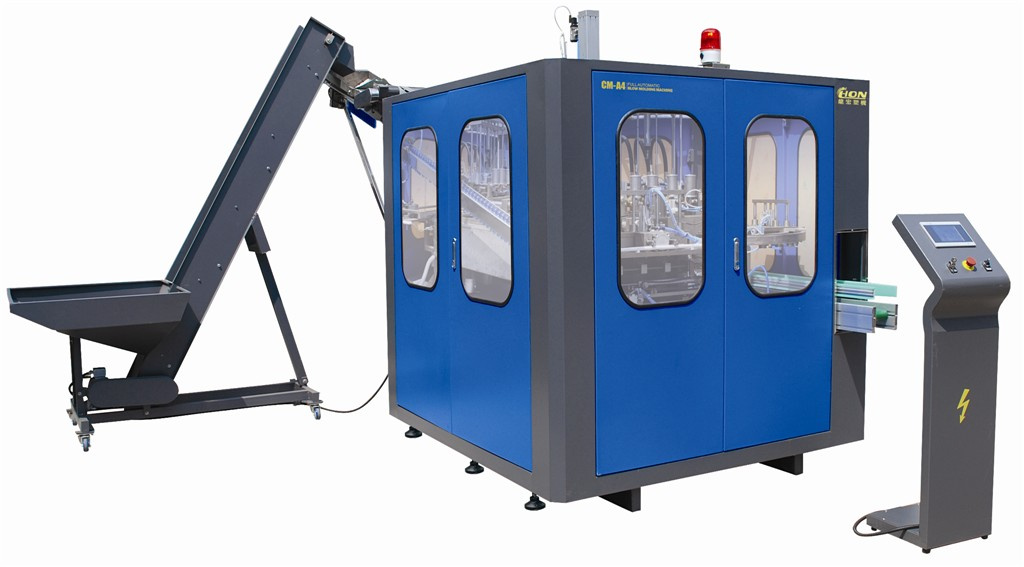

CM-A4 Full automatic blow molding machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
* Reasonable design, full automatic control, save power and labor. Adopt high quality
Components.
* Feeding system carries the performs by robot automatically.
* Infrared oven heater adopts the quartz lamp to heat the PET tube.
* Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble -shooting, maintenance and other benefits.
* We have perfect service after sales.
|
Main part: |
|
Pneumatic part |
Valve |
FESTO/SMC |
|
Cylinder |
|
Electric part |
PLC |
LG |
|
Operating system |
LG |
|
Relay |
OMRON |
|
Infrared thermometer |
America Raytek |
|
Note |
All of the electrical components adopts CE / UL / CCC approved international advanced high-tech product. |
|
Main parameter: |
|
Model |
CM-A4 |
|
Productivity |
Depend on bottle design |
3200-4000 pcs/h |
|
Product type |
Body diameter |
≤100mm |
|
Height |
≤310mm |
|
Neck diameter |
18-38mm |
|
Mold |
Cavity |
4 cavity |
|
Mold thick |
240mm |
|
Mold |
260*240*370mm |
|
Main machine power |
Electrical source power |
380V/220V 50/60Hz |
|
Rated Power |
49KW |
|
Really use power |
10-15KW |
|
Air source |
LP air compressor |
1.6 m3 /min 10kg |
|
HP air compressor |
2.0 m3 /min 30kg |
|
Air dryer |
2.0 m3 /min 30kg |
|
Cooling water |
Cooling water |
15L /min |
|
Size |
L*W*H |
1910*1858*1935mm |
|
Weight |
3600Kg |
|
Auxiliary equipment( pre-form unscrambler) |
L*W*H |
2000*950*2480mm |
|
Weight |
250Kg |
|
Resin available |
|
PET |
Zhengjiang Huangyan Longhon Plastic Machinery Factory. Our factory is more than 20 years. We have very good quality and good after-sale service. Our company is an company specializing in PET Blow Molding Machine and Preforma Mold and Cap Mold for water, tea and juice. We have ISO9002 and ISO9001 and CE certification. "Honesty, Cordiality and Sincerity" is our company's spirit.
Welcome to visit to our factory and check the quality of our machines If you have time.
Quality is our mark. I will try my best to cooperate with you well. Don't hesitate to contact me if you have any questions! So that both parties can cooperate soonand our company can serve you better.
