Features:

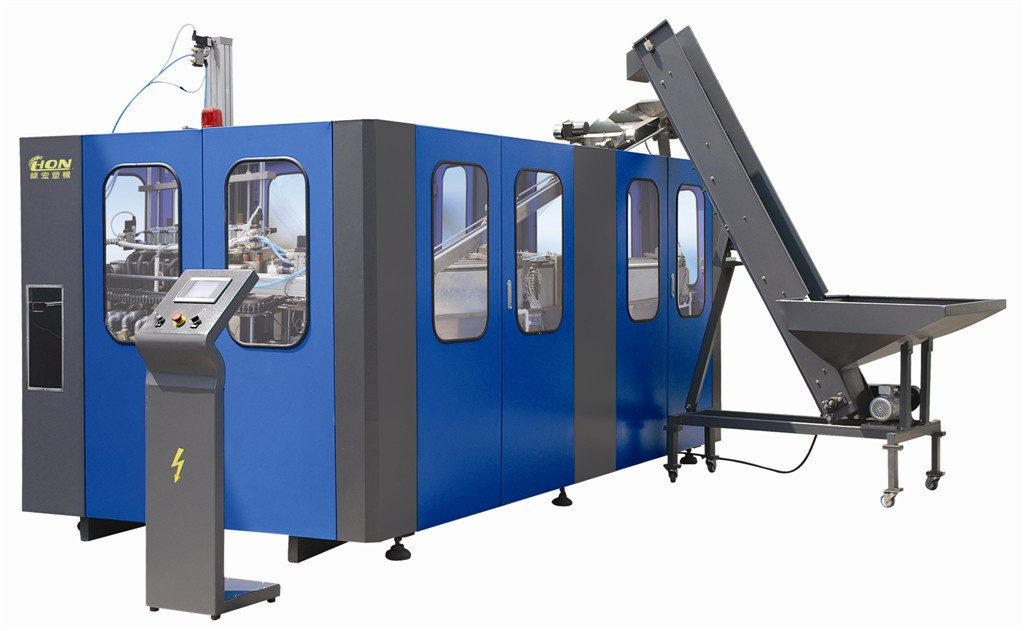

CM-A6 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle and hot filling bottle etc.
* Stable performance with advanced PLC.
* Conveying preforms automatically with conveyor.
* Strong penetrability and swift distribution of the heater by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
* Strong clamping force with high pressure and double crank links to lock the mold.
* Low cost, high efficiency, easy operation, easy maintenance, with automatic technological process.
* Ideal effect of the chilling with the chilling system.
* Easy installation and starting
* Low rejection rate: Less than 0.2 percent.
|
Model |
ITEM |
CM-A6 |
|
Productivity |
Depend on bottle design |
4000-6000PCS/H |
|
Product type |
Volume |
0.1-2L |
|
Body diameter |
≤100mm |
|
Height |
≤310mm |
|
Neck diameter |
≤30mm |
|
Mould |
Cavity |
6 |
|
Mold thickness |
240mm |
|
Mold size |
800*240*360mm |
|
Main machine power |
Electrical source power |
380V/220V 50/60HZ 3Phase |
|
Power |
73kw |
|
Really use power |
22kw |
|
Air system |
HP air compressor |
4.0m3/min 3.0MPa |
|
LP air compressor |
2.0m3/min 1.0MPa |
|
Air Tank |
1.0m3 3.0MPa |
|
Air dryer |
4.0m3/min 3.0MPa |
|
Cooling water |
Water Chiller |
5HP |
|
Machine |
Size(L*W*H) |
4000*2000*1800mm |
|
Weight |
5200kg |
|
Preform unscrambler |
Size(L*W*H) |
2000*950*2480mm |
|
Weight |
250kg |
Zhengjiang Huangyan Longhon Plastic Machinery Factory. Our factory is more than 20 years. We have very good quality and good after-sale service. Our company is an company specializing in PET Blow Molding Machine and Preforma Mold and Cap Mold for water, tea and juice. We have ISO9002 and ISO9001 and CE certification. "Honesty, Cordiality and Sincerity" is our company's spirit.
Welcome to visit to our factory and check the quality of our machines If you have time.
Quality is our mark. I will try my best to cooperate with you well. Don't hesitate to contact me if you have any questions! So that both parties can cooperate soonand our company can serve you better.
