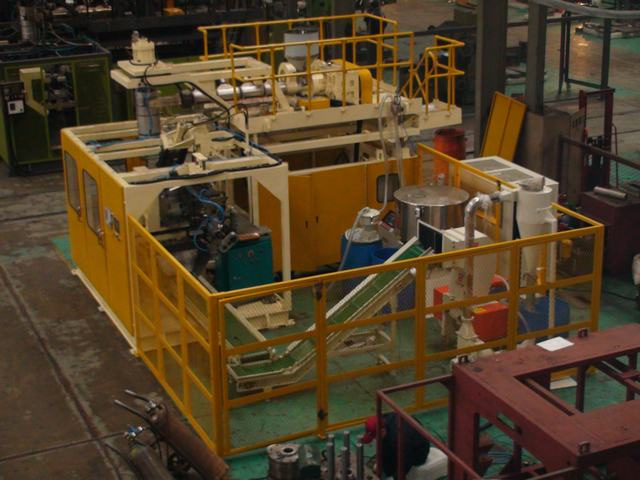

Automatic Blow Molding Machine (STBM-A30L)

Automatic Blow Molding Machine (STBM-A30L)
Price: US $ 60000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Zhangjiagang Stone Mechanical Equipment Co., Ltd. is a professional company located in Zhang JiaGang city, we have more than 20years experiences in plastic machinery and beverage filling machines Industry.

We devote ourselves to the products development, research, implode and make new products for plastic machine, liquid food, beverage packing and filling industry in China.

For plastic industry our main products include:

A. Hollow plastic products blow molding machine products volume from 0.5ml to 10000L

B. Plastic extrusion line

C. Injection machine

D. PET blow molding machine

E. Plastic product
General information Material STBM-A30L STBM-A60L STBM-A120L STBM-A220L
HDPE, PP HDPE, PP HDPE, PP HDPE, PP
Max products 30L 60L 120L 220L
Idle cycle 300PC/HR 300PC/HR 300PC/HR 300PC/HR
Size (M) 4.4x2.5x3.8 5.2x2.9x4.6 5.7x3.1x4.85 7.5x3x6
Weight(Ton) 10.5 14 17 30
Total power(Kw) 93 125 152 207KW
Average
Consume(Kw)
35 52 63 124KW
Extruder Diameter 75/80 90 100 Φ 120mm
L/D 25:! 25: 1 25: 1 30
Cap kg/h (PE5502) 100 170 200 350
Barrel Heating zone 4? 4 5 5
Barrel Heating power 19 26 31 35KW
Extruder motor power 30 45 55 132KW DC
Die head Die head volume (L) 4.4 6L 10L 20L
Max extrusion speed(kg/sec) 1 1.5 1.8 3.5
Die head Heating zone 4 4 5 6
Heating power 17 20 25 35KW
Max die nozzle(mm) 200 320 450 Φ 450mm
Min die nozzle (mm) 85 100 120 120
Clamping Clamping force(KN) 200 250 510 750KN
Plate distance(mm) 250-800 450-1100 500-1350 650-~1850
Plate size(w× h) 750x650 900x800 1100x1300 1300× 1400
Blowing Blowing pin stroke (mm) 150 150 150 150
Frame up and down (MM) 250 250 250 250
Robot Working stroke (MM) 1000 1000 1000 1000
up platform Stroke (MM) 350 400 450 450
Speed (mm/min ) 30 30 30 30
Hydraulic Oil pump motor 22 30 37 45KW
Big pump volume (L/Min) 12     266
Small pump (L/Min) 16     40
Thickness controller hydraulic Moog 100 point Moog 100 point Moog 100 point Moog 100 point
Pressure Mpa 14 14   14
Flu volume (L/min) 23 23   23
Pump power (KW) 4 5.5   7.5
Pneumatic Source pressure (Mpa) 0.8 0.8-1 1 1Mpa
Working Pressure (Mpa) 0.6 0.7 0.7 0.8 Mpa
Consumption (M 3 /min) 0.4 0.6 1 2
water Pressure (MPa) 0.2~0.3 0.2~0.3 0.2~0.3 0.2~0.3
Flux (L/min) 200 200 300 400
electrical Temperature controller   Data communication Data communication Data communication Data communication
Crafts time Data communication Data communication Data communication Data communication
Power AC380V± 10%  50HZ AC380V± 10%  50HZ AC380V± 10%  50HZ AC380V± 10%  50HZ
Phase Three phase
  five wires
Three phase
  five wires
Three phase
  five wires
Three phase
  five wires

Prod Model: STBM-A30L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Blow Molding Machine: 30L
Station: Single
Deflashes: Automatic
Die Head: Continue
Automation: Automatic
Making Method Of Parison: Extrusion-Blow Molding
Raw Material: HDPE
Computerized: Computerized
Certification: SGS
Zhang Jia Gang Stone Mechanical Equipment COM., Ltd Is a professional company located in Zhang JiaGang city, we have more than 20years experiences in plastic machinery and beverage filling machines Industry.
We devote ourselves to the products development, research, implode and make new products for plastic machine, liquid food, beverage packing and filling industry in China.
For plastic industry our main products include:
A. Hollow plastic products blow molding machine products volume from 0.5ml to 10000L it's including:
1)STBM-CS2L----------------STBM-CS12L
2)STBM-CD2L----------------STBM-CD10L
3)STBM-CD15L--------------STBM-CD25L
4)STBM-A30L-----------------STBM5000L
5)Plastic mold injection and blowing
B. Plastic extrusion line
1) PVC pipe excluding production line
2) PE big-mouth for gas, water supply excluding production line
3)Plastic sheet or panel production line
4)Plastic profile production line
5)Plastic granulating production line
6)Plastic recycling machine
7)PP-R pipe production line
8)Plastics extruder High speed mixer, various plastic auxiliary machines
C. Injection machine
From 10Ton-900Ton horizontal injection
D. PET blow molding machine
1) STPBM S6-S8 Semiautomatic for 150ml-2000ml
2). STPBMS9A Semiautomatic for 2L-5L
3). STPBMS9B Semiautomatic for 5-12L
4). STPBM5G 5 gallon PET blow molding machine
5) STPBM A6 automatic pet blow molding machine
6) PET preform and blow molds
E. Plastic product
IBC container, pallet. 220L drums, cool boxes and plastic material
For beverage and filling industry including:
1). The capacity of 3000-- 25000 BPH for hot filling, MID-temp filling, aseptic cold filling lines.
2). The capacity of 3000-- 25000 BPH for mineral water and purified water producing line.
3). The capacity of 3000 -- 25000 BPH for carbonated beverage producing line.
4). The capacity of 300 -- 1000 TBH, for 3 gallon, 5 gallon.
5). The capacity of 8000 BPH for the volume of 200ml to 500ml in milk packaging.
6). All kinds of water treatment equipment.
All the products are sold well in China and also exported to more than thirty countries and areas. Strong technical support, advanced equipment, scientific management system and perfect after-sales service for we get more clients and market We are sure choose us can make you business further improvement.
We are not only manufacturing a kind of products, also creating a kind of
Culture. The originality of our products derives from our profound understanding
Of the culture and will to develop the machinery industry
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
Our company has always insisted on relying quality to seek survival, benefit to seek development. Use fine after-sale service to meet the needs of consumers. Honesty and credit. Products are sold well all over our country. Warmly welcome all fields of friends to visit our company and negotiate trade.
Our service is after get you information during 24 hour give you clear reply and solution
Our aim is you satisfy is my pleasure
Our purpose is friend always important than business
Wish you and us win win
