Automatic Blowing Mould Machine for Hot Filling Juice Bottle

Automatic Blowing Mould Machine for Hot Filling Juice Bottle
Price: US $ 35000/Set
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
EcoPura Engage in Blow Molding Machine, Stretch Blow Molding Machine, Bottle Blow Molding Machine, Blow Moulding Machine, Bottles Blowing Machine, Blow Molding Machinery, Bottle Making Machine, Blow Moulding Machinery, Blowing Machine, Moulding Machine, Molding Machine, Blow Bottle Machine, plastic machine, blow machine

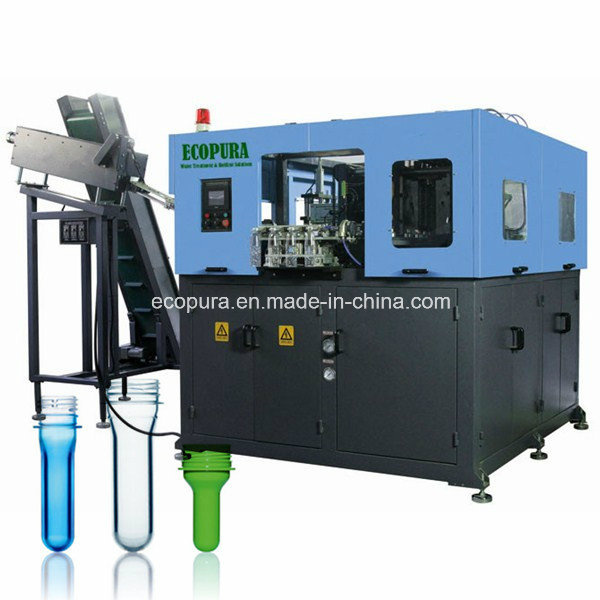

EPC-2000 PET Bottle Blow Molding Machine is suitable for producing PET plastic Containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral Water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
1) Reasonable design, full automatic control, save power and labor. Adopt high quality Components.
2) Feeding system carries the performs by robot automatically.
3) Infrared oven heater adopts the quartz lamp to heat the PET tube.
4) Fully automatic process with low investment, high efficiency, quick and safe operation, easy For trouble -shooting, maintenance and other benefits.
Main part:
Pneumatic part Valve FESTO/SMC
Cylinder
Electric part PLC LG
Operating system LG
Relay OMRON
Infrared thermometer America Raytek
Note All of the electrical components adopts CE / UL / CCC approved international advanced high-tech product.
Main parameter:
Model EPC-2000
Productivity Depend on bottle design 1800-2000pcs/h
Product type Body diameter ≤100mm
Height ≤310mm
Neck diameter 18-38mm
Mold Cavity 2cavity
Mold thick 240mm
Mold 260*240*370mm
Main machine power Electrical source power 380V/220V 50/60Hz
Rated Power 25KW
Really use power 6-10KW
Air source LP air compressor 1.0 m3/min 10kg
HP air compressor 1.4 m3/min 30kg
Air dryer 1.0 m3/min 30kg
Cooling water Cooling water 10L/min
Size L*W*H 1910*1858*1935mm
Weight 2000Kg
Auxiliary equipment ( pre-form unscrambler ) L*W*H 2000*950*2480mm
Weight 250Kg
Resin available   PET
Prod Model: EPC-2000H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control System: PLC and Touch Screen
Automation: Automatic
Making Method Of Parison: Stretch Blow
Raw Material: PET
Computerized: Computerized
Certification: UL
Type: Extrusion Blow Molding Machine
Shenzhen EcoPura Water Equipment Co., Ltd was founded in 2007, specialized in Water Treatment/Dispenser, bottled water/beverage filling line, Blow molding machine & packaging solutions over 18 years experiences, In China, ECOPURA commands more than 60% of Water and Beverage Process Machine market. Covering all segments. Highly acclaimed for their user-friendly, tailor-made designs and customized solutions for various customer needs

As a leading manufacturer, we can supply the following solutions:

1, Water Treatment Solutions based on different raw water quality

Municipal or Mountain water treatment / Brackish Water Purification / Sea water desalting

2, Automatic Bottled Water Production Line

Accuracy filling, position due to PLC application and photoelectricity technology, neck spraying nozzle for cleaning completely, avoid the 2ND pollute. Adjusting and setting data make machine suitable to various bottles.

A)PET 250 ml - 2000ml Bottled Filling Line

B)PET/PP 3 liters - 6 liters Bottled Filling Line

C)5Gallon Bottled Filling Line

3, Blow molding machine with mould design and Post packaging machinery to be fully synchronized with the bottled water filling line.

4, High Quality Water Dispenser with 15years OEM experience for abroad client demand

With the support of advanced technique, mature experienced engineers and customer-oriented after sales service, So far, ECOPURA has close cooperation with hundreds of customers all over the world from USA, Canada, Russia, Mexico, Brazil, Panama, Sudan, Nigeria, Angola, Iraq, Jordan, Indonesia and so on. We won enormous credit by carry out business and confirmation based on carefully understood acts and detailed requirement from every customer.

Providing ' Quality Products, Customized services, Competitive Prices and Timely Delivery', . We are now looking forward to even more cooperation with overseas customers based on mutual benefits, Please feel free to contact us if you are interested in our products, Sincerely welcome to visit our company!
