Home Mould Products Automatic Brick Making Machine in Dubai with CE/ISO Certificate

Automatic Brick Making Machine in Dubai with CE/ISO Certificate

Automatic Brick Making Machine in Dubai with CE/ISO Certificate
Price: US $ 25000-68000/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

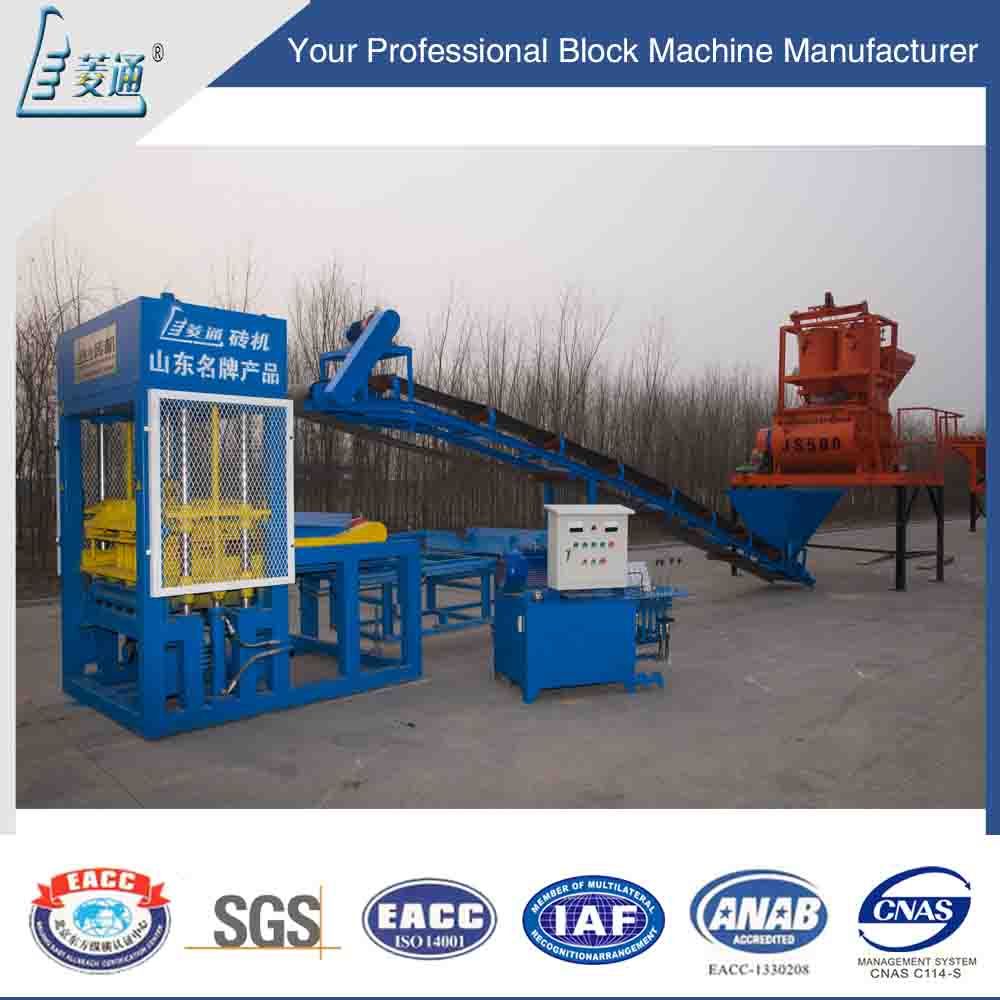

Introduce of LTQT8-20 baking free block machine

Main features of block making machine

This machine has simple operation procedure,advanced forming method. While working only the host computer is running for a long time and other equipment is instant operation so as to greatly improve the performance of its electricity. It can move fast by adopting hydraulic pump system of high emissions and unique production process can recover the cost within a short time .

1. Special welding technology ensure the high intensity of the fuselage and increase the service life of the equipment.

2. The suspension-type vibration mode and the rubber spring vibration isolation can reduce noise maximumly.

3. Multi-axial rotation fabric form can easily implement secondary cloth of raw material and easily uniform fabric and rapid molding brick.

4. The mold is made of special materials of heating processing technology, surface hardness is more than national standard.


Technical Parameters


Technical parameters
Dimensions of main frame(L*W*H)
4500*1850*2850mm
Molding height
50-190mm
System pressure
12Mpa
Virbration forcement
70KN
Dimension of pallet
950*900*30mm
Whole weight
8600KG
Molding cycle
20s
Power of main frame
30KW

Molding Cycle
15-20 seconds

Dimensions of pallet
1150x950x30 mm

Raw Materials
crushed stone, sand, cement, dust and coal fly ash, cinder, gravel, perlite, and other industrial wastes,slag, gangue,

Applied Products
concrete blocks, solid/hollow/cellular products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Applied Fields
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions.



Capacity

Block sample

Size

Pieces/time

Pieces/H

Hollw block

390*190*190mm

8

1440

Multi-row perforated brick

240*115*90mm

21

3780

Standard block

240*115*53mm

42

7560

Pavment brick(single color)

200*100*60mm

28

3600


FAQ:

1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : five.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone
is1:4:5.
4.hollow block weight:(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. raw material consumption per day:200-260T


Why choose us ?
1.Passed CE Mark
2.Famous trademark of China
3.National key high-tech enterprise
4.ISO quality system certificate enterprise
5.National enterprise abiding by contract and keeping good faith
6.Top ten influential brand of China brick and tile industry
7.Supporting institution of Shandong machinery research institue
8.First place in production and sales of block machine and tile making machine in China


Attentions:

If you are interested in our products, please feel free to contact us on Trademessenger client.
Or, you can write message to send us an inquiry.
Your inquiry will be given prompt attentions and reply within 8 hours

Contact  us:
Jeanne
Sales Manager,Export Department
Tel: +86 18280428520

Shandong Lingtong Heavy Machinery Co., LTD.
Add:No.88 Economic Development Zone,Gaotang District Liaocheng City,Shangdong Province,China.
Website: en.sdlingtong.com




Prod Model: LTQT8-20
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Method: Hydraulic Pressure
Processing: Brick Molding Machine
Product: Hollow/Interlock/Paver Brick/Block
Brick Raw Material: Cement/Sand/Construction Waste etc.
Automation: Semi-Automatic
Tolerance: 1.0mm
Condition: New
Brand Name: Lingtong Brick Machine
Model: Qt8-20
Other Machine: AAC Block Machine/Clay Brick Machine
Certification: ISO9001: 2000, RoHS, ISO 9001:2000, ISO 9001:2008
We are offering a wide range of concrete block making machine that is perfect for concrete block making especially casting of hollow, solid concrete blocks. Fabricated following specified industrial procedures, these are widely acknowledged for their sturdy construction, excellent performance and durable finish standards. The bricks making plant, provided by us, is higher in grades, performance, and working life. The blocks making plant can be availed from us at competitive prices.

The bricks making plant is a fly ash brick making vibro-hydraulic press, which is a fully automatic machine. The bricks making plant is acclaimed by the worldwide clients for its superb efficiency and long working life.

As as a specialized manufacture and exporter for this product in China, we can supply block making machine with high quality and competetive price. Hope can cooprate with you. Compared with traditional clay brick, AAC block is the most economical and eco-friendly building material. As a kind of new building material, AAC block will be the ideal choice for all kinds of modern buildings.

We are prominent manufacturer, exporter, trader and supplier of block making Machines, concrete block machines, Interlocking paver Machines, block Machines, AAC block making machineand cutting machines, brick plants, etc. These machines are widely used for building construction and are appreciated for application specific design, precision functionality, optimum performance, longer serviceability, impact resistance, high tolerance and strength.
