Ceramic tablet press is the typical application of our rotary tablet press.
as a rotary tablet press machine making factory, we'd like to invite you to visit us freely.
ZP40-9/ZP40-11 rotary tablet press-widely used to produce ceramic tablets ,
eg: Zirconium oxideAluminum oxide.
ZP40 series rotary tablet press machine can press the dry ceramic granulate into tablets of good hardness. Also finihsed tablets weight tolerence can reach ±0.5%.
ZP40-9/ZP40-11 can press any granulate material into tablets/blocks which diamater is bigger, D=20~60mm which rotary tablet press machines of other suppliers in china hardly produce.
we are the rotary tablet press machine developer and maker, also supply the service that custom the mould of tablet press machines now.
Introduction:

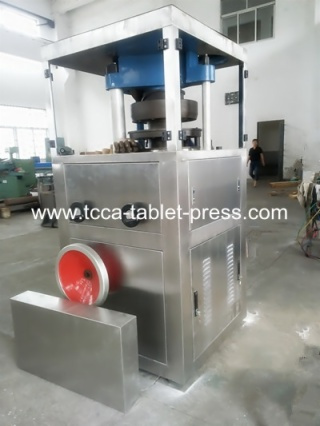

ZP40-9 rotary tablet press is a mid-size machine model. It has been widely used in chemical, food, health beauty and other areas. ZP40-9 rotary tablet equipment is a R&D product from our company. It is suitable to press all kinds of granular materials into tablets of round or nun-round shapes. It is popular in bigger tablet production (eg: Dia=20-60mm), such as animal medicine, art use block,powder metallurgy tablets.
Its machine body is packaged by stainless steel and its tablet pressing room uses a new fully enclosed structure of Plexiglass, bright and of good appearance.
Ceramic tablet production is one of its typical application cases.
Characters:
*high working pressure, guarantee the quality of finished tablets, eg: hardness.
*Pressing tablet Room 360 ° with transparent windows of plexiglass. No dead structure, easy to observe and clean.
*its overall is designed of the seal and dust tight structure.
* Easily removable structure, easy operation and maintenance.
* The speed adjustment of the driver is controlled by the frequency conversion device.
Following is the specification of ZP40-9 for your reference.
Model | ZP40-9 |
Dies | 9sets |
Max working pressure | 400Kn |
Dia of Tablet | 30-60mm |
Max Depth of Fill | 43mm |
Thickness of Tablet | 15-24mm |
Turret Speed | 1-15r/min |
Max Production Capacity | 8000pcs/h |
Motor | 7.5 Kw 380v/50hz |
Overall Size | 900*900*2200 mm |
Net Weight | 2800kg |
