USE:

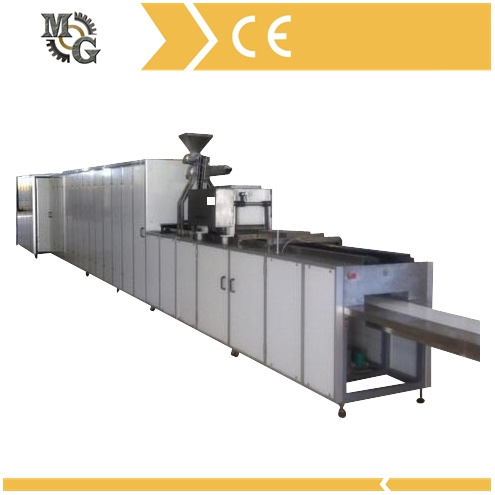

1. This automatic chocolate Depositing machine have all functions of pre-heating empty mould, depositing chocolate into mould, vibrating chocolate in mould, cooling chocolate in mould, de-moulding chocolate from mould and conveying chocolate to next station automatically.
2. In this automatic chocolate moulding machine, you can produce following types of chocolate:
- pure chocolate
- center filling chocolate
- two color chocolate
- nuts mixed chocolate (nuts feeder unit required)
- wafer chocolate (wafer inserter unit required)
3. Real chocolate and compound chocolate are both workable to make in this machine.
Main parameter:
Model:MQJJ175-1
Quantity of depositor: 1
Production capacity:100kg/hour~300kg/hour
Capacity of cooling compressor:10HP
Brand of cooling compressor:COPELAND
Temperature in cooling tunnel:5 °C-10°C
Cooling time:18-30 minutes
Power of machine:17.4kw
Size of mould:280x200x30mm
Quantity of mould:280 pieces
Weight of machine:3500kg
Size of machine: 16000x1000x1800mm (LxWxH)
We have automatic chocolate moulding machine with 1 depositor (model:MQJJ175-1), 2 depositors (model: MQJJ175-2) and 3 depositors (model: MQJJ175-3). Also we have semi-automatic chocolate moulding machine without cooling tunnel (model: MQJJ150).
Model | MQJJ175-1 | MQJJ175-2 | MQJJ175-3 | MQJJ150 |
Number of Depositor | One | Two | Three | One |
Capacity(kg per hour) | 100 - 300kg/hour | 100 - 300kg/hour | 100 - 300kg/hour | 200kg/hour |
Capacity of Compressor | 10HP | 15HP | 15HP | - |
Brand of Compressor | COPELAND | COPELAND | COPELAND |
Temperature in Cooling Tunnel | 5 - 10°C | 5 - 10°C | 5 - 10°C |
Power(kw) | 17.4 | 23 | 31.5 | 7.47 |
Size of Mould (L×W×H, mm) | 280×200×30 | 280×200×30 | 280×200×30 | 275×175×25 |
Quantity of Moulds(pieces) | 280 | 340 | 410 | 200 |
Net Weight of Machine(kg) | 3500 | 4300 | 5200 | 500 |
Size of Machine (L×W×H, mm) | 16000×1000×1800 | 17000×1000×2300 | 19000×1000×2350 | 4300×520×1500 |
Type of Chocolate | Pure Chocolate | √ | √ | √ | √ |
Center Filling Chocolate | √ | √ | √ | √ |
One Color Chocolate | √ | √ | √ | √ |
Two Color Chocolate (left &right) | √ | √ | √ | √ |
Two Color Chocolate (up &down) | - | √ | √ | - |
Three Color Chocolate | - | - | √ | - |
1kg Industrial Chocolate | - | √ | √ | - |
Nuts Mixing Chocolate | √ | √ | √ | √ |
Wafer Chocolate | √ | √ | √ | √ |
Packaging & Shipping
1. Strong seaworthy wooden package.
2. Protection against humidity.
3. Skilled capability of delivery to your country.
Guarantee & After-Sales Services
1. One-year guarantee period for complete machine.
2. Free charge of accessories within guarantee period excluding false operation.
3. Free charge of layout design, instruction with details, installation guide and local team training.
4. Experienced engineer is available to set up the machines upon request.
5. 24 hours technical support service by email and mobile.
