Automatic Concrete Block Machine (XH10-15)

Automatic Concrete Block Machine (XH10-15)
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

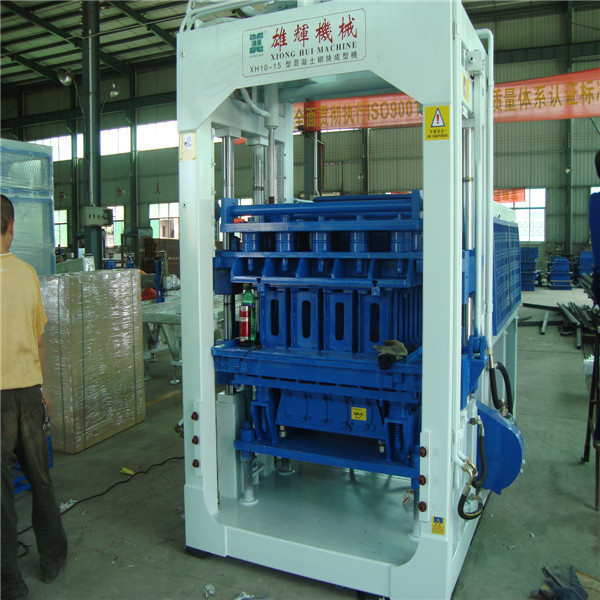

XH10-15 fully automatic concrete block machine

1. Produce all kinds of bricks
2. PLC Automatic Control System
3. Short Mold Cycling
4. High Output
5. Easy and safety operation


XH10-15 automatic block-brick production line

The equipment details:


XH10-15 block machine is suitable to make road blocks, road-side bricks and river bricks. Adopting sub-storage device and independent storage hopper, this machine can overcome the liquefaction of concrete defects in advance, and ensure the quality of the finial products. It can automatically operate the whole set, from material feeding to finish products output.

Features & Advantages of XH10-15 block machine:

1. Adopting strong steel, super-strength design and special welding techniques, this machine features of high-rigid, resistant to vibration and long service life.

2. Adopting four-oriented approach to ensure the pressure head and mold box move exactly with good stability. With the replacement of various models, it can produce kinds of bricks to meet different requirement of clients.

3. The host machine adopts hydraulic rotational molding and vibration compression molding. Molding cycle takes 15-20 seconds to leave the floor for forming health.

4. XH10-15 block making machine is equipped with a multi-fabric mixing fork to mould box evenly.

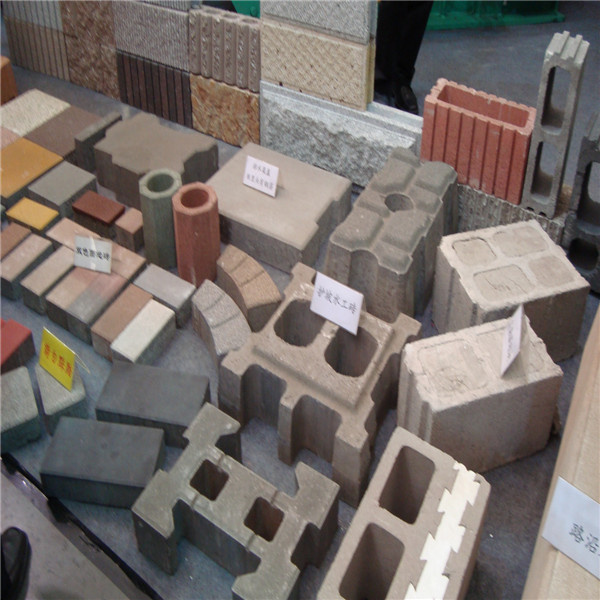

 Specification&capacity of main products
  Items  Size(L*W*H)  Pcs/mould  Pcs/hour  Pcs/8hour one year(300days) production
 Hollow blocks  390*190*190mm  10  2400  19200  5760000
 Perforated blocks  240*115*90mm  24  5760  46080  13824000
 Solid bricks  240*115*50mm  52  12480  99840  29952000
 Color bricks  200*100*60mm  28  6720  53760  16128000

Technical parameter

Max. Dimension

12800×3000×2800mm

Rated pressure

21MPa

Main vibration type

Table vibration

Vibration frequency

2800_4500times/min

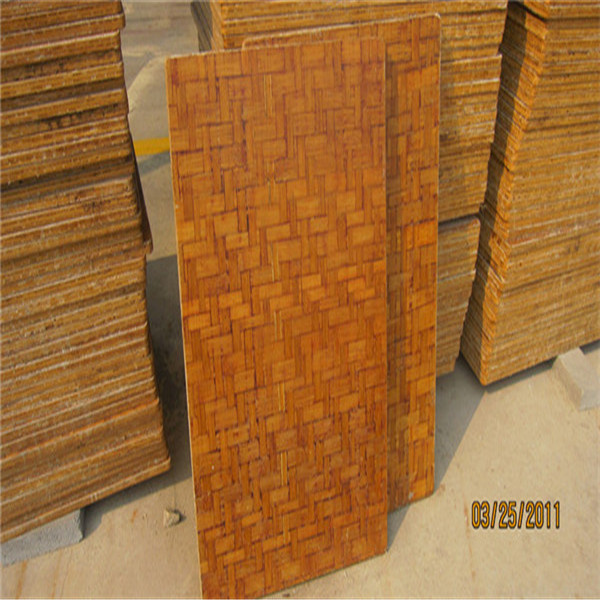

Pallet size

1080×850mm

Forming cycle

15_25sec

Total Power

34.5kw

Weight

13800kg

Prod Model: XH10-15
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition: New
Machining Process: Brick Production Line
Brick Raw Material: Concrete
Method: Hydraulic Pressure
Automatic: Yes
Capacity: 19200PCS/Day of 390*190*190mm Hollow Blocks
Power: 34.5kw
Dimension(L*W*H): 12800*3000*2800mm
Warranty: 1 Year
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Certification: ISO9001: 2000
Type: Cement Production Machinery
QuanZhou XiongHui Machinery Industry Trade Co., Ltd. is located in the economic center in west bank of Taiwan strait in QuanZhou city, . As a professional concrete machinery manufacturer producing concrete, coal powder, building block forming machine, air brick machine, and various kinds of standard brick, road brick, brick using green area, SOD brick, nozzle brick, small-wave brick and other concrete product manufacturing enterprises.

It areas 37000 more square meters. The professional technicians have solid theoretical basis and rich experience. The company is a joint-stock enterprise co-invested by leading technicians of the company. Leading by pioneering spirit, following the operating principle of "Practicality, Dedication, Innovation", all workers and staffs of the company will provide service of "elaboration, precision, perfect" to win customers. Giving priority to high technology, and based on market orientation. The company has passed ISO9001-2000 International Quality Management Certification.

For many years, the company's products have been well-sold in both domestic and abroad markets even to Kazakhstan, Kyrgyzstan, India, Pakistan, Colombia, Zambia, Kenya, as well as some Southeast Asian countries. The customers have appraised the products of our company "never regret of choosing XiongHui products. "
