Machine introduces:
We designed 1050ESF Automatic Foil Stamping and Stripping Die Cutting Machine, which is the greatest research and development and manufacturing of new equipment with a higher degree of intelligence.
This machine adopts numerous advanced pneumatic and servo driving processing technology from abroad. After the strict assembly quality control, it has advantage of simple operation and safe reliable.
It could foil stamping, creasing and die cutting after printing products, such as more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.
Good quality and design makes machine work stably and safety when machine's speed reach 7500 sheets/h. This machine will provide you to enjoy the comfortable operation and faster return on investment.
Machine features:
1. Feeder/Feeding Section

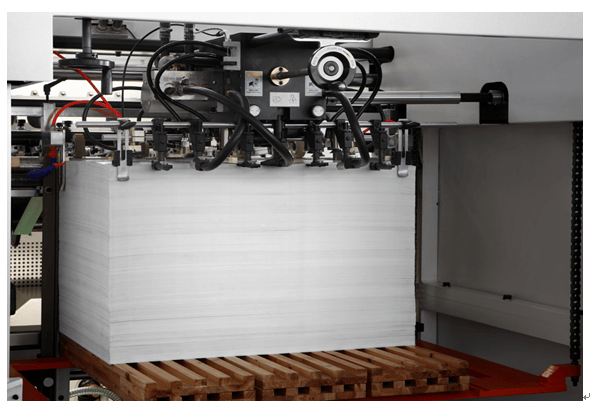

The design of stacker preparatory stage was improved, it could use prepared car sheet piling. Also could use ordinary hydraulic car sheet piling to stacker directly. The machine has four suction nozzles and four sending nozzles in feeder, ensure feed smoothly. Adopt import screw air-blowing device, it could make the sheet send smoothly.
2. Automatic Sheet Piling Position System
The sheet pre-pile plate will be moved to fixed position automatically when you enter the sheet size. It is very convenient for operator to load the paper.

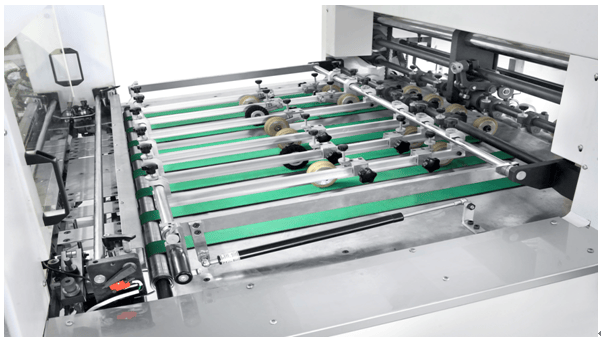

3. Feeding Positioning Section
The incline-type paper moving table top is more suitable to high-speed thin paper and location. Side location adopt dual purpose side device with pull guide and push guide, accounting to paper choose, it makes switch easier. It could switch front rise position arriving reduction of speed device, it is benefit of thin paper's location.
4. Foil Feeding Section
Vertical: 3 shafts (A/B/C)
Horizontal: 2 shafts (E/F)
5. Foil Stamping/ Die Cutting Section
Foil Stamping Plate
Die Cutting Plate
The driving gear ensures high speed of die cutting together. The pneumatic locking mechanism and air clutch are fast and stable. The die cutting frame can prevent the die cutting plate from drooping or separating effectively.

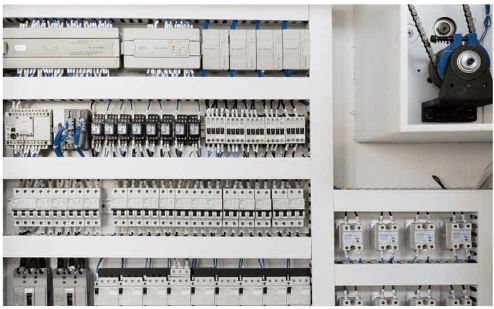

6. Electric Appliance Cabinet
All main electric appliances were imported from foreign countries, make sure machine running smoothly and stably.
Japan Anchuan Servo Drivers
7. Remote Control System
After connecting the internet, through this system we could remote control this machine then solve problems for customers.
8. Delivery Section
Delivery section add tester into security system. It is equipped with inset counter. Using subsection could adjust brush and sheet air-blowing device, so the finished product of delivery section could product stably. Gripper drive train expanded buffer device.
Other important features:
1. Pneumatic Clutch
The imported high quality pneumatic clutch reduces noise and minimizes impact when stopping the machine at a high speed.
2. Lubrication System
With a programmable lubrication system, the accurate control of PLC ensures balanced lubrication of the machine.
3. Air Pump
Adopt imported equipment, improve the stability of the machine, low noise, high performance, long service life.
4. Gripper and Chain
The grippers are made of special extra hard aluminum alloy, with anode treatment on the surface, ensuring accurate die cutting and embossing, ect. at high speed. The adjustment mechanism, patent design guarantees very accurate control. An imported chain is used for the main gripper transmission, with strength increased by 45% for accurate stability and prolonged life.
Machine Parameters:
Model | 1050ESF |
Max. Sheet Size | 1050×750mm |
Min. Sheet Size | 400×360mm |
Max. Cutting Size | 1040×720mm |
Max. Foil Stamping Size | 1040×720mm |
Paper Thickness | 80-2000 g/m2 Cardboard, Corrugated paper≤4mm |
Min. Waster Side Width | 8mm |
Max. Mechanical Speed | 7500 sheets/h |
Max. Foil Stamping Speed | 6500 sheets/h |
Max. Die Cutting Pressure | 420T |
Max. Feeding Pile Height | 1540mm |
Max. Delivery Pile Height | 1340mm |
Total Weight | 22T |
Dimensions(with pre-pile device) | 8000×6000×3000mm |
Heated System Zone | 12 |
Stamping Temperature Range | 0°C-200°C |
Foil Feeding Shaft | V3+H2 |
Total Power | 70kw |
Air compressor | 0.8Mpa, ≥0.6m3/min |
The material of machine: Ductile iron (Nodular cast iron)
