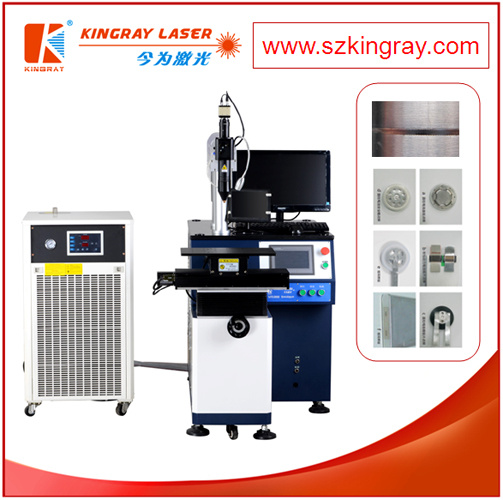

Automatic Laser Welder Machine for Stainess Steel Products
| Price: |
US $ 6500-20000Unit |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1Unit |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Introduction:KRWY200W series automatic laser welding machine is specially designed for stainless steel, bathroom accessories and lighting products etc. It is with high precision, small welding spot (0.2mm-2mm), small heated area, no deformation of working piece and allowed for texturing after welding. It is the application of laser local deposition welding technology in the field of tools and moulds.
KRWY500W series automatic laser welding machine is specially designed for stainless steel, bathroom accessories and lighting products etc. It is with high precision, small welding spot (0.5mm-3mm), small heated area, no deformation of working piece and allowed for texturing after welding. Features:1. Using imported ceramic condensing cavity, high photoelectric conversion rate, CCD real-time monitoring to make sure the stability of welding quality.
2. It can implement automatic and semiautomatic spot welding, butt welding, stitch welding, and sealing welding, mainly for seamless welding of thin-walled materials and precision parts.
3. High precision locating, small focusing spot, accuracy control and easy to achieve automation.
4. Using four-dimensional ball screw worktable and imported servo control system, optional rotary worktable, and be able to mark dot, line, circle, square or any plan figures drawn by CAD.Any waveform is available, and can be adjusted according to different welding materials. The match of welding parameters and welding requirements to achieve the best welding effect.Application Industries:Widely used for sensors, mobile phone batteries, mobile phone data lines, high-end bathroom accessories, medical equipment, craft gifts, horologe, electronic components, precision machinery, electronic communications and other industries.Suitable Materials:Suitable for welding between same materials and different materials like stainless steel, gold, silver, iron, aluminum, alloy, steel, diamond.
Technical Parameters:| Type | KR-YAG-WY200/400/500 |
| Wavelength | 1064nm |
| Max. laser output power | 200W/400W/500W |
| Max. laser peak power | 6KW/12KW/16KW |
| Pulse width | 0.1ms~20ms |
| Pulse frequency | 0.1Hz~100Hz |
| Control current | 20A-300A/100A-400A |
| Condensing cavity | Imported ceramic reflection cavity/ Germany technology gold-plated cavity |
| Laser type | Nd: YAG |
| Aiming and locating method | CCD monitoring system |
| Numerical control system of worktable | Industrial PC |
| Travel of worktable | 300mm×200mm×100mm |
| Locating accuracy | 0.05mm |
| Repetition accuracy | ±0.02mm |
| Load-bearing of worktable | 100Kg |
| Electric requirement | 220V/50Hz/30A / 380V/50Hz/60A |
| Power consumption of cooling-water machine | 2P / 4P / 5P |
| Cooling method | External water cooled |
| Weight of principle machine | 200Kg |
| Weight of cooling-water machine | 25Kg / 80Kg /100Kg |
| Dimension of principle machine | 1700mm×800mm×1300mm |
| Dimension of cooling-water machine | 700mm×500mm×800mm |
| Prod Model: |
KRWY-200W/300W/400W/500W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
YAG |
| Laser Output Power: |
200W/300W/400W/500W |
| Aiming And Locating Method: |
CCD Monitoring System |
| Condensing Cavity: |
Imported Ceramic Reflection Cavity |
| Cooling Metho: |
External Water Cooling |
| Worktable Moving Direction: |
X, Y, C, Z Axle |
| Condition: |
New |
| Warranty: |
12 Months |
