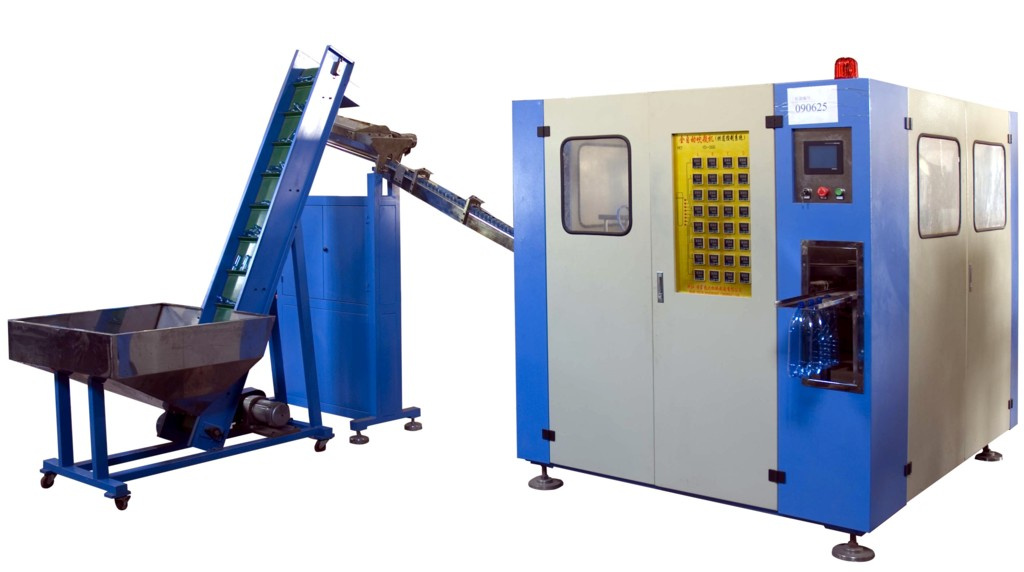

This kind of machine is suitable for producing PET/PC/PP and PE, plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle, cosmetics, wide-mouth bottle and hot filling bottle, etc.
Feeding system carries the performs by robot automatically.
Infrared oven heater adopts the quartz lamp to heat the PET tube.
Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting, maintenance and other benefits.
TYPE | Item | Unit | Technical Data |
SW-S1500 | SW-S2500 | SW-S4500 |
1-CAVITY | 2-CAVITY | 4-CAVITY |
Container | Product material | | PET/PE/PC/PP | PET/PE/PC/PP | PET/PE/PC/PP |
Container volume | L | 0.05-2.5 | 0.05-2.5 | 0.05-2.5 |
Theoretical output | Pcs/hr | ≤0.6L/1450 | ≤0.6L/2500 | ≤0.6L/4500 |
Perform length | mm | 50-200 | 50-200 | 50-200 |
Max.length of bottle | mm | 320 | 320 | 320 |
Preform inner diameter | mm | Φ15-60(1-cavity) | Φ15-60(2-cavity) | Φ15-60(4-cavity) |
Bottle diameter | mm | Φ35-110(1-cavity) | Φ100(2-cavity) | Φ35-110(4-cavity) |
Moulding | Max.mould plate dimension(L×W) | mm | 260×380 | 420×400 | 420×640 |
Max.mould thickness | mm | 220 | 220 | 220 |
Clamping force | KN | 150 | 200 | 280 |
Mould opening stroke(Adjustable) | mm | 150 | 150 | 150 |
Air Compressor | High pressure compresson | M3/Mpa Kw | ≥1.1/3.0×1set 11KW | ≥1.2/3.0×2set 11KW | ≥1.5/3.0×2set 11KW |
Low pressure compresson | M3/Mpa Kw | ≥1.25/1.0×1set 7.5KW | ≥1.6/1.0×1set 7.5KW | ≥1.6/1.0×1set 7.5KW |
Dryer | Air dryer | M3/Mpa | 2.0/3.0 | 3.0/3.0 | 3.0/3.0 |
Main Machine Electricity | Power | KW | 10 | 15 | 25 |
Voltage/Frequency | V/Hz | 380-220/50-60Hz | 380-220/50-60Hz | 380-220/50-60Hz |
Machine Size And Weight | Main machine(L×W×H) | M | 1.75×1.2×1.65 | 2.5×1.4×1.9 | 3.0×1.8×1.9 |
Main machine weight | T | 2.0 | 2.5 | 4.2 |
Conveyer(L×W×H) | M | 1.4×1.1×1.85 | 1.4×1.1×1.85 | 1.4×1.1×1.85 |
Conveyer weight | T | 0.3 | 0.3 | 0.3 |
High pressure compressor(L×W×H) | M | 1.90×0.75×1.50 | 1.90×0.75×1.50×2set | 1.90×0.75×1.50×2sets |
Low pressure compressor(L×W×H) | M | 1.85×0.70×1.50 | 1.85×0.70×1.50 | 1.85×0.70×1.50 |
High pressure compressor(L×W×H) | M/MPa | Φ0.70×2.55×/3.0 | Φ0.70×2.55×/3.0 | Φ0.70×2.55×/3.0 |
Air dryer(L×W×H) | M | 0.85×0.50×0.95 | 0.85×0.50×0.95 | 0.85×0.50×0.95 |
Air filters | Kg | 10×2pcs | 10×2pcs | 10×2pcs |
Safty | Auto-emergency alarm | Safty Inter-locking Device |
